UAV Radar 10km Range Aviation Case Portability

Radar Surveillance
December 24, 2025
Category Connection: Radar Surveillance
Chat Now Contact Us
Tags:
#compact surveillance radar #advanced radar surveillance system #long range air surveillance radar
Brief: Join a quick walkthrough that focuses on what matters to users and operators. In this video, you'll see a demonstration of the HYH 216SR-1S10K-3D UAV Ground Based Radar, showcasing its 10km detection range and portability within a rugged aviation case. Watch as we explore its all-weather operation and advanced anti-jamming capabilities in real-world scenarios for border, airport, and critical infrastructure security.
Related Product Features:
  • Provides 360-degree full airspace coverage with mechanical azimuth and phased elevation scanning.
  • Detects small drones like DJI Phantom 3/4 with a high sensitivity up to 10 km range.
  • Operates reliably in all weather conditions, including rain, snow, haze, and dust.
  • Features advanced anti-jamming technology using multi-beam Digital Beamforming for clear signals.
  • Consumes low power, operating at ≤250W with AC220V-240V input.
  • Built with military-grade durability in an aviation aluminum alloy housing for extreme environments.
  • Offers flexible installation options with ground steel brackets or tripods for rapid deployment.
  • Delivers real-time tracking and timely alerts with a data refresh rate of 4-6 seconds per scan.
FAQs:
  • What is the maximum detection range of this UAV radar?
    The radar has a maximum detection range of 10.0 km for small drones like the DJI Phantom 3/4, with a minimum detection range of ≤100 m.
  • Can this radar operate in harsh environmental conditions?
    Yes, it is designed for all-weather operation, with IP-rated protection against rain, dust, sand, moisture, and salt corrosion, and it functions in temperatures from -40°C to +55°C.
  • How is the radar powered and what is its power consumption?
    It operates on AC220V-240V power supply with a low power consumption of ≤250W, making it efficient for continuous surveillance use.
  • What type of interface does the radar use for data communication?
    The radar uses an RJ45 Ethernet interface with UDP protocol for reliable and real-time data transmission and integration with security systems.
Related Videos

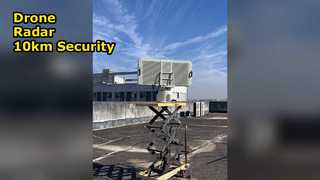

Airport Drone Security Radar 10km All Weather 00:12

Airport Drone Security Radar 10km All Weather
Radar Surveillance
December 24, 2025
X-Band Radar: Detect Drones 3.5km Away 00:12

X-Band Radar: Detect Drones 3.5km Away
Radar Surveillance
December 24, 2025

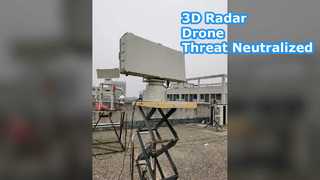

3D Air Surveillance Radar High Speed Drone Detection 00:12

3D Air Surveillance Radar High Speed Drone Detection
Radar Surveillance
December 24, 2025
Drone Detection Radar with TAS Mode | 4km UAV Tracking & ≤200W Power 00:55

Drone Detection Radar with TAS Mode | 4km UAV Tracking & ≤200W Power
Other Videos
March 24, 2025
Lightweight Low Altitude Radar 360 Coverage 00:03

Lightweight Low Altitude Radar 360 Coverage
Low Altitude Radar
December 24, 2025
100 Km Radar: Detect Threats Far 00:03

100 Km Radar: Detect Threats Far
Low Altitude Radar
December 24, 2025
Low Altitude Radar System for Defense 00:03

Low Altitude Radar System for Defense
Low Altitude Radar
December 24, 2025
Low Altitude Radar S-Band 3000m Detection 00:03

Low Altitude Radar S-Band 3000m Detection
Low Altitude Radar
December 24, 2025

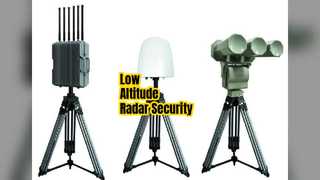

Low Altitude Radar: Secure Airspace 00:03

Low Altitude Radar: Secure Airspace
Low Altitude Radar
December 24, 2025

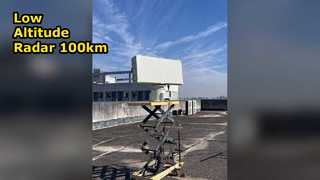

Low Altitude Radar 100km Range S-band 00:03
