High Sensitivity Advanced Radar Surveillance System For Airport Security

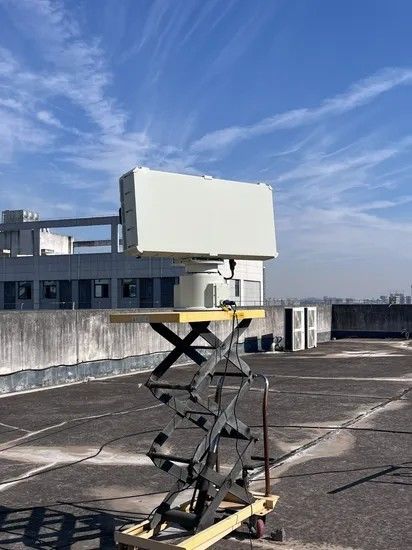

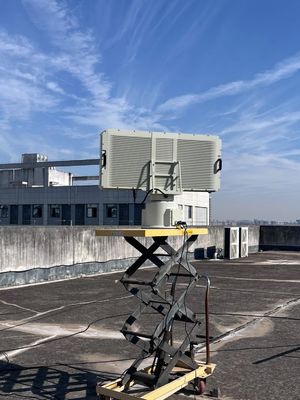

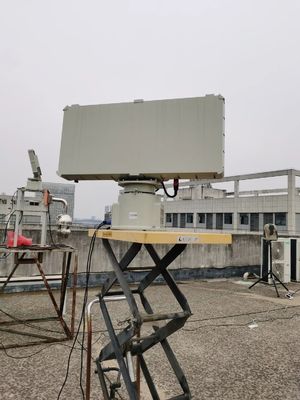

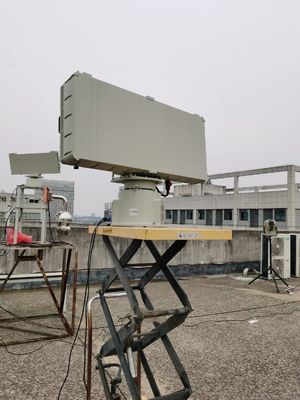

HYH 216SR-1S10K-3D S-Band 3D Phased Array Radar | 10km All-Weather UAV Detection & Airspace Security System

Product Overview

The HYH 216SR-1S10K-3D is a cutting-edge S-band air surveillance radar designed for detecting, tracking, and warning against drones in critical areas such as borders, airports, and high-security zones. Leveraging active phased array technology and Digital Beamforming (DBF), it delivers precise 3D target trajectory data (range, azimuth, elevation) with robust anti-interference capabilities. Built for extreme environments, this radar operates seamlessly in rain, snow, haze, and dust while maintaining high sensitivity and real-time responsiveness.

Digital Array Architecture: Fully integrated and software-defined processing approach.

Digital Beamforming (Receive and Transmit): Adaptive airspace coverage based on mission profiles.

Compact and Integrated Design: Low-cost, high reliability, and high integration.

Long Dwell Time: Superior clutter suppression capability.

Key Features

✅ 360° Full Airspace Coverage: Mechanical azimuth scanning (0°–360°) + phased elevation scanning (0°–40°).
✅ Advanced Anti-Jamming: Multi-beam DBF technology enhances signal clarity in cluttered environments.
✅ Low Power Consumption: ≤250W operation with AC220V-240V input.

Technical Specifications

Applications

• Airport Security: Detect unauthorized drones near runways and restricted zones.

• Border Surveillance: Monitor illegal drone activities across remote areas.

• Critical Infrastructure: Protect military bases, power plants, and government facilities.

• Event Safety: Ensure airspace security during large public gatherings.

System Advantages

• Military-Grade Durability: Aviation-grade aluminum alloy housing with environmental resistance.

• Flexible Installation: Compatible with ground steel brackets or tripods for rapid deployment.

• Real-Time Tracking: Timely alerts and trajectory updates for rapid response.

• Low Maintenance: Solid-state design ensures long-term reliability.

Certifications & Compliance

• ISO-Certified: Compliant with international quality standards.

• Environmental Resilience: Tested for rain, dust, sand, mould, and salt resistance.

Production Capacity: 100 units/year
Packaging: Aviation-grade protective case (820cm × 470cm × 930cm, 60kg gross weight).
Customization: OEM services available for tailored configurations.
