S Band Active Ground Based Radar Surveillance Anti Jamming UAV Warning System

Products

Navigation Deception Equipment

S Band Active Ground Based Radar Surveillance Anti Jamming UAV Warning System

MOQ:	1
Price:	Negotiable
Delivery Period:	30
Payment Method:	L/C,T/T
Supply Capacity:	10sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Target Tracking:

Real-time Tracking

Data Processing:

Real-time Data Processing

Frequency Band:

X-band

Data Output:

Digital Data Output

Resolution:

High Resolution

Mobility:

Mobile And Stationary Options

Type:

Surveillance System

Technology:

Radar

Multi-Target Capability:

Simultaneous Tracking Of Multiple Targets

Detection Range:

Up To 400 Km

Integration:

Can Be Integrated With Other Surveillance Systems

Highlight:

Active Ground Based Radar Surveillance

Active portable air surveillance radar

S Band Ground Based Radar Surveillance

Product Description

S-Band Active Phased Array Radar HYH 216SR-1S10K-3D | Anti-Jamming UAV Warning System for Airports/Borders

Product Overview

The HYH 216SR-1S10K-3D is a cutting-edge S-band air surveillance radar designed for detecting, tracking, and warning against drones in critical areas such as borders, airports, and high-security zones. Leveraging active phased array technology and Digital Beamforming (DBF), it delivers precise 3D target trajectory data (range, azimuth, elevation) with robust anti-interference capabilities. Built for extreme environments, this radar operates seamlessly in rain, snow, haze, and dust while maintaining high sensitivity and real-time responsiveness.

Key Features

✅ 360° Full Airspace Coverage: Mechanical azimuth scanning (0°–360°) + phased elevation scanning (0°–40°).
✅ High Sensitivity: Detects drones as small as DJI Phantom 3/4 (RCS≈0.01m²) up to 10 km.
✅ All-Weather Operation: IP-rated protection against rain, dust, sand, moisture, and salt corrosion.
✅ Advanced Anti-Jamming: Multi-beam DBF technology enhances signal clarity in cluttered environments.
✅ Low Power Consumption: ≤250W operation with AC220V-240V input.

Technical Specifications

Parameter	Specification
Model	ASR 216SR-1S10K-3D
Frequency Band	S Band (2.9 GHz, 5 selectable frequency points)
Detection Range	150m–10.0 km (DJI Phantom 3/4)
Minimum Detection Range	≤100 m
Coverage	Azimuth: 0°–360° Elevation: 0°–40°
Accuracy	Range: ≤10 m Azimuth/Elevation: ≤1.0° Speed: ≤0.5 m/s
Target Speed Range	0.5–45 m/s
Data Refresh Rate	4–6 seconds per scan cycle
Power Supply	AC220V-240V, ≤250W
Net Weight	≤60 kg (with PTZ)
Dimensions	782mm × 434mm × 882mm (L×W×H)
Operating Temperature	-40°C to +55°C
Interface	RJ45 Ethernet (UDP protocol)

Applications

Airport Security: Detect unauthorized drones near runways and restricted zones.
Border Surveillance: Monitor illegal drone activities across remote areas.
Critical Infrastructure: Protect military bases, power plants, and government facilities.
Event Safety: Ensure airspace security during large public gatherings.

System Advantages

Real-Time Tracking: Timely alerts and trajectory updates for rapid response.
Low Maintenance: Solid-state design ensures long-term reliability.

Certifications & Compliance

ISO-Certified: Compliant with international quality standards.
Environmental Resilience: Tested for rain, dust, sand, mould, and salt resistance.

Production Capacity: 100 units/year
Packaging: Aviation-grade protective case (820cm × 470cm × 930cm, 60kg gross weight).
Customization: OEM services available for tailored configurations.

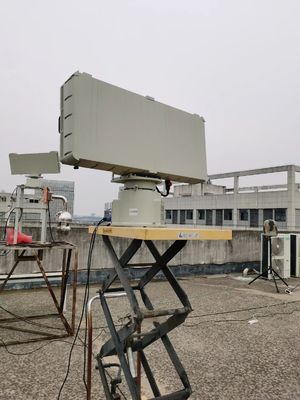

S Band Active Ground Based Radar Surveillance Anti Jamming UAV Warning System 0

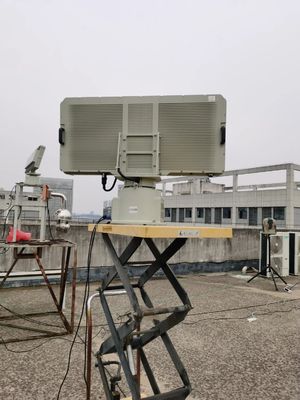

S Band Active Ground Based Radar Surveillance Anti Jamming UAV Warning System 1
