Vehicle Mounted Ground Based Radar Surveillance X Band 3.5km UAV Detection

Products

Navigation Deception Equipment

Vehicle Mounted Ground Based Radar Surveillance X Band 3.5km UAV Detection

MOQ:	1
Price:	Negotiable
Delivery Period:	30
Payment Method:	L/C,T/T
Supply Capacity:	10sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Resolution:

High

Data Output:

Real-time

Accuracy:

High

Range:

Up To 400 Km

Mobility:

Stationary/Mobile

Power Supply:

Electricity

Frequency Band:

X-band

Application:

Military/Security

Type:

Surveillance System

Highlight:

Vehicle Mounted Ground Based Radar Surveillance

Vehicle Mounted maritime surveillance radar

X Band Ground Based Radar Surveillance

Product Description

Vehicle-Mounted X-Band Radar | 3.5km UAV Detection, 360° Azimuth + 40° Elevation, Military-Grade Durability

Overview

The HYH 226X-1X3K-3D is a high-performance military surveillance radar engineered to detect, track, and neutralize micro/small UAV threats in critical zones. Combining X-Band frequency with Phased Array + Pulse Doppler technology, it delivers precise 3D tracking (azimuth, distance, altitude, speed) for drones up to 3.5km away. Designed for rugged mobility, it supports ground or vehicle-mounted deployment, making it ideal for securing prisons, military bases, borders, and high-profile events.

Key Features

Long-Range Detection:
- 3.5km range (DJI Phantom, RCS≈0.01m²) | ≤150m minimum range.
360° 3D Tracking:
- Full azimuth coverage (0°–360°) + 40° elevation for comprehensive airspace monitoring.
- Rapid Response:
  - High refresh rate (≥0.25 times/s) for real-time threat alerts.
  - Digital Array Architecture: Fully integrated and software-defined processing approach.

    Digital Beamforming (Receive and Transmit): Adaptive airspace coverage based on mission profiles.

    Compact and Integrated Design: Low-cost, high reliability, and high integration.

Technical Specifications

Parameter	Details
Frequency Band	X-Band
Power Consumption	≤240W (AC220V-AC240V supply)
Data Interface	RJ45 / 100 MB Ethernet (UDP protocol)
Dimensions	500×410×205 mm
Weight	≤50kg (compact and portable)
Package	Rugged aluminum alloy casing

Applications

Military & Defense: Base protection, border surveillance, and drone threat mitigation.
Critical Infrastructure: Airports, prisons, government facilities, and VIP zones.
Event Security: Large-scale public gatherings, exhibitions, and high-risk venues.

Why Choose HYH 226X-1X3K-3D?

MIMO Technology: Multi-Input Multi-Output system enhances detection reliability.
All-Weather Ready: Built to withstand extreme environments, from deserts to arctic conditions.

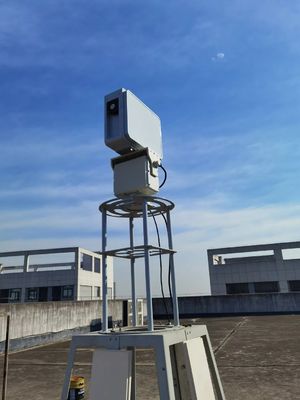

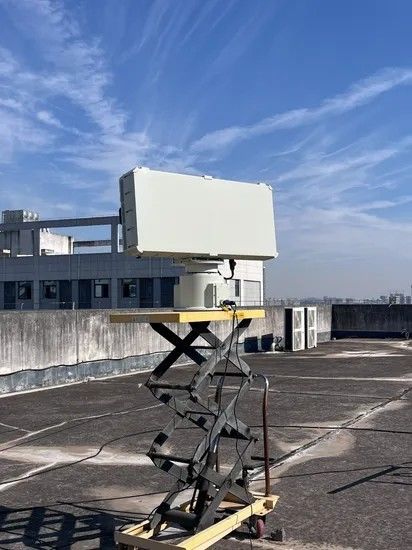

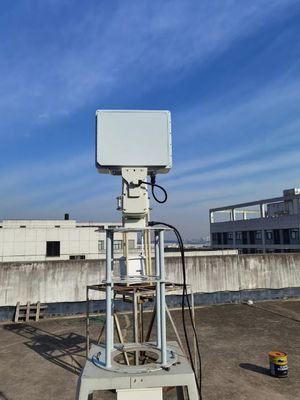

Turntable Design: Radar array + turntable ensures seamless 360° scanning.

Compliance & Warranty

IP Rating: Dust, moisture, and salt-resistant for coastal/maritime use.
Storage Tolerance: -45°C to +65°C (non-operational).
