All Weather X Band Air Surveillance Radar Perimeter Surveillance Radar System

Products

Navigation Deception Equipment

All Weather X Band Air Surveillance Radar Perimeter Surveillance Radar System

MOQ:	1
Price:	Negotiable
Delivery Period:	30
Payment Method:	L/C,T/T
Supply Capacity:	10sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Pitch Coverage:

0°-30°

Transmit/Receive Modules:

Solid State

Range Resolution:

1-10 M

Antenna Speed:

≤10rpm

Blind Range:

180m

Operating Frequency Band:

X Band

Target Radial Velocity:

0.8m/s-20m/s

Material:

Aluminum Copper

Polarization:

Dual Linear

Target Types:

Air, Sea, Land

Minimum Detection Range:

10 M

Scanning Range Pitch:

0°-40°

Antenna Rotation:

360 Degrees

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

All Weather Air Surveillance Radar

All Weather Perimeter Surveillance Radar System

X Band Air Surveillance Radar

Product Description

All-Weather Military Surveillance Radar | 3.5km Drone Detection, -40°C to +55°C Operation, Vehicle-Mounted

Overview

The HYH 226X-1X3K-3D is a high-performance military surveillance radar engineered to detect, track, and neutralize micro/small UAV threats in critical zones. Combining X-Band frequency with Phased Array + Pulse Doppler technology, it delivers precise 3D tracking (azimuth, distance, altitude, speed) for drones up to 3.5km away. Designed for rugged mobility, it supports ground or vehicle-mounted deployment, making it ideal for securing prisons, military bases, borders, and high-profile events.

Key Features

360° 3D Tracking:
- Full azimuth coverage (0°–360°) + 40° elevation for comprehensive airspace monitoring.
- Precision Targeting:
  - Distance accuracy: ≤10m | Azimuth/Elevation accuracy: ≤1.0° | Speed precision: ≤0.2m/s.
Rapid Response:
- High refresh rate (≥0.25 times/s) for real-time threat alerts.
- Long Dwell Time: Superior clutter suppression capability.

  Customizable Operational Waveforms and Bandwidths: Multiple options available.

  Enhanced Anti-Jamming Measures: Expandable functionalities, including sidelobe cancellation, stealth filtering, and interference track rejection.

Technical Specifications

Parameter	Details
Frequency Band	X-Band
Power Consumption	≤240W (AC220V-AC240V supply)
Data Interface	RJ45 / 100 MB Ethernet (UDP protocol)
Dimensions	500×410×205 mm
Weight	≤50kg (compact and portable)
Package	Rugged aluminum alloy casing

Applications

Military & Defense: Base protection, border surveillance, and drone threat mitigation.
Critical Infrastructure: Airports, prisons, government facilities, and VIP zones.
Event Security: Large-scale public gatherings, exhibitions, and high-risk venues.

Why Choose HYH 226X-1X3K-3D?

MIMO Technology: Multi-Input Multi-Output system enhances detection reliability.
All-Weather Ready: Built to withstand extreme environments, from deserts to arctic conditions.

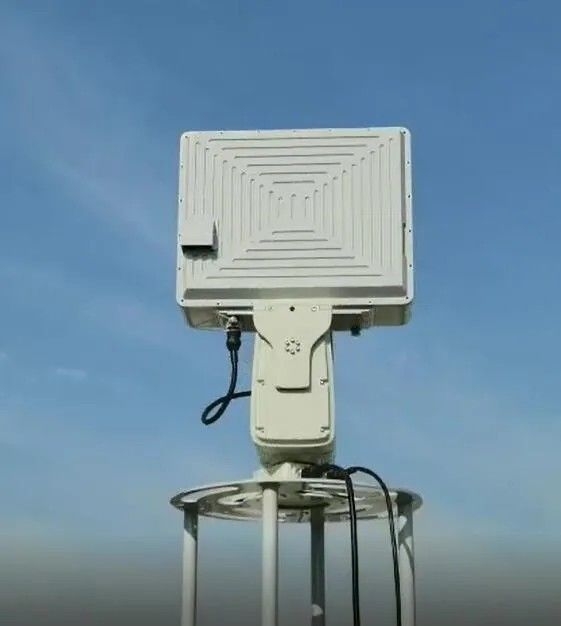

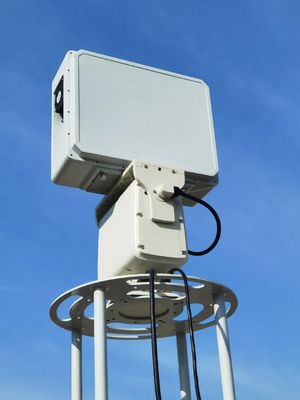

Turntable Design: Radar array + turntable ensures seamless 360° scanning.

Compliance & Warranty

IP Rating: Dust, moisture, and salt-resistant for coastal/maritime use.
Storage Tolerance: -45°C to +65°C (non-operational).
