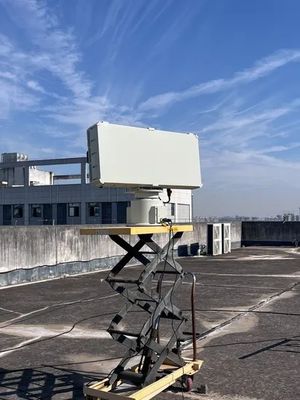

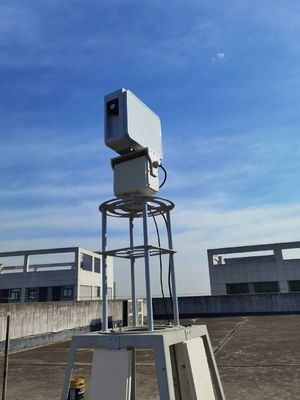

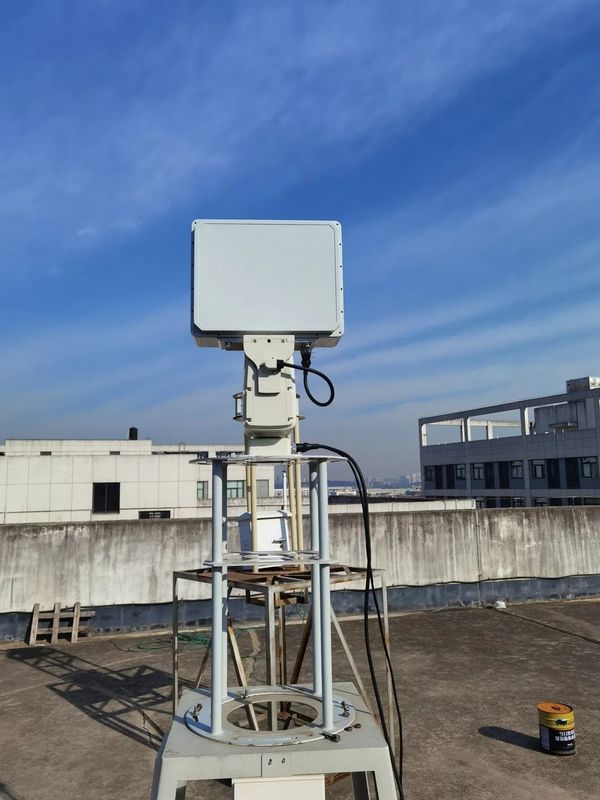

Phased Array Portable Ground Surveillance Radar ISO Certified
  • name
  • name
  • name
  • name

Phased Array Portable Ground Surveillance Radar ISO Certified

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C,T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Product Type:
Surveillance System
Data Storage:
Large Capacity
Detection Range:
Up To 400 Km
User Interface:
Intuitive And User-friendly
Technology:
Radar
Integration:
Compatible With Other Surveillance Systems
Power Source:
Electricity
Detection Accuracy:
High
Application:
Military/Defense
Mobility:
Portable/Stationary
Data Transmission:
Wireless
Highlight:

Phased Array portable ground surveillance radar

,

Phased Array ground surveillance radar

,

ISO Certified portable ground surveillance radar

Product Description

WaveSonics HYH 226X-1X3K-3D | 3.5km Range, 360° Coverage, Rain/Dust/Sand Proof, ISO-Certified


Overview

The HYH 226X-1X3K-3D is a high-performance military surveillance radar engineered to detect, track, and neutralize micro/small UAV threats in critical zones. Combining X-Band frequency with Phased Array + Pulse Doppler technology, it delivers precise 3D tracking (azimuth, distance, altitude, speed) for drones up to 3.5km away. Designed for rugged mobility, it supports ground or vehicle-mounted deployment, making it ideal for securing prisons, military bases, borders, and high-profile events.

Key Features

  • Long-Range Detection:

    • 3.5km range (DJI Phantom, RCS≈0.01m²) | ≤150m minimum range.

    • Precision Targeting:

      • Distance accuracy: ≤10m | Azimuth/Elevation accuracy: ≤1.0° | Speed precision: ≤0.2m/s.

  • Rapid Response:

    • High refresh rate (≥0.25 times/s) for real-time threat alerts.

    • Operating Frequency X-band, bandwidth over 200 MHz, with 10 operational frequency points.

      Detection Range Small Target Mode: ≥6 km (RCS=0.01 m², customizable; enhanced mode up to 8 km).

Technical Specifications

Parameter Details
Frequency Band X-Band
Power Consumption ≤240W (AC220V-AC240V supply)
Data Interface RJ45 / 100 MB Ethernet (UDP protocol)
Dimensions 500×410×205 mm
Weight ≤50kg (compact and portable)
Package Rugged aluminum alloy casing

Applications

  • Military & Defense: Base protection, border surveillance, and drone threat mitigation.

  • Critical Infrastructure: Airports, prisons, government facilities, and VIP zones.

  • Event Security: Large-scale public gatherings, exhibitions, and high-risk venues.

Why Choose HYH 226X-1X3K-3D?

  • MIMO Technology: Multi-Input Multi-Output system enhances detection reliability.

  • All-Weather Ready: Built to withstand extreme environments, from deserts to arctic conditions.

  • Turntable Design: Radar array + turntable ensures seamless 360° scanning.

Compliance & Warranty

  • IP Rating: Dust, moisture, and salt-resistant for coastal/maritime use.

  • Storage Tolerance: -45°C to +65°C (non-operational).

  • Phased Array Portable Ground Surveillance Radar ISO Certified 0
  • Phased Array Portable Ground Surveillance Radar ISO Certified 1
