Anti Drone Radar Jamming System Low Altitude For DJI Phantom 4 Detection

Products

Navigation Deception Equipment

Anti Drone Radar Jamming System Low Altitude For DJI Phantom 4 Detection

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	D/P,T/T,Western Union
Supply Capacity:	20set/month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

Model Number

LY-Ku-3D-II

Scanning Range Pitch:

0°-40°

Operating Temperature:

-20 To 50 Degrees Celsius

Antenna Rotation:

360 Degrees

Power Consumption:

Less Than 5 KW

Data Processing:

Real-time

Scanning Range:

Azimuth：0°-360°，Pitch：0°-40°

Transmit Power:

Antenna Speed:

Maximum 90 °/s

Transmitter Power:

1-10 KW

Range:

Up To 100 Km

Scanning Range Azimuth:

Target Radial Velocity:

0.8m/s-40m/s

Resolution:

Antenna Type:

Parabolic

Polarization:

Dual Polarization

Minimum Detection Range:

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Antenna Diameter:

1-5 M

Blind Range:

Scan Mode:

Sector Scan

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Pulse Repetition Frequency:

100-1000 Hz

Highlight:

Anti Drone Radar Jamming System

Low Altitude compact surveillance radar

Low Altitude Radar Jamming System

Product Description

Anti-Drone Surveillance Radar | 7km Range for DJI Phantom 4 Detection

Product Overview

The LY-Ku-3D-II Digital Phased Array Radar employs a hybrid architecture combining phased array transmission and digital multi-beam reception. It is designed for low-altitude surveillance in complex environments, providing 24/7 detection and tracking of slow-moving small targets (e.g., drones). The radar delivers precise distance, azimuth, elevation, and velocity data, supporting airspace monitoring and security operations.

Key Features

Hybrid Beamforming: Wide-beam transmission + digital beamforming reception.
Compact & Robust: Lightweight, highly integrated, low-cost, and reliable.
Advanced Signal Processing: Clutter suppression, adaptive waveforms, and bandwidth options.
Dual Scanning Modes: Mechanical scanning + servo tracking for target detection, classification, and high-data-rate tracking.
Mission Flexibility: Configurable for diverse operational scenarios.

Technical Specifications

Category	Parameter	Details
Operating Frequency		Ku-band
Detection Range	Small Target Mode	≥7 km (DJI Phantom 4 or equivalent RCS target)
	Min Detection Distance	≤150 m
	Altitude Coverage	≥1000 m (for DJI Phantom 4)
	Azimuth Range	0° to 360°
	Elevation Range	0° to 50°
Detection Accuracy	Distance (RMS)	≤15 m
	Azimuth (RMS)	≤0.5°
	Altitude (RMS)	≤0.5°
Target Processing	Capacity per Frame	200 tracks / 5000 points
Signal Processing	Techniques	Digital Beamforming, Pulse Compression, MTD, CFAR, Clutter Mapping
Data Rate		5s, 2.5s
Operational Performance	Power Supply	AC (220V±10%, 50Hz±5%) or portable generator
	Power Consumption	≤650 W
Environmental Adaptability	Operating Temperature	-35℃ to +50℃ (outdoor equipment)
	Storage Temperature	-45℃ to +65℃
	Humidity Resistance	98% RH (at 35℃ for outdoor equipment)
	Protection Level	IP-rated three-proof capabilities (waterproof, dustproof, corrosion-resistant)
Mobility & Deployment	Transport & Installation	Vehicle-mountable, modular design, rooftop deployment via elevator/crane

Why Choose LY-Ku-3D-II?

Precision: Sub-0.5° accuracy for azimuth and elevation.
Versatility: Hybrid scanning modes adapt to dynamic threats.
Durability: Operates in extreme temperatures (-35℃ to +50℃).
Cost-Effective: High performance at competitive pricing.

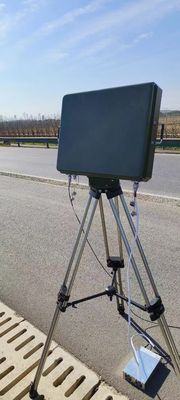

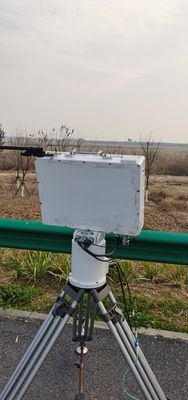

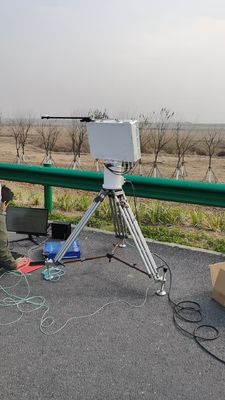

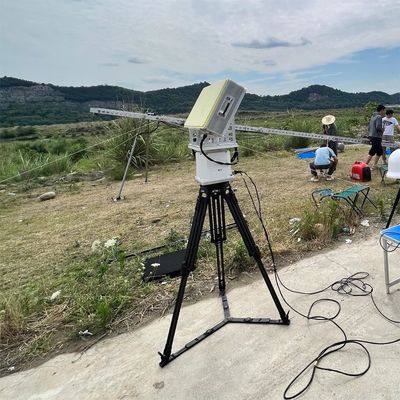

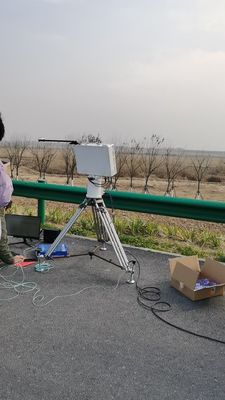

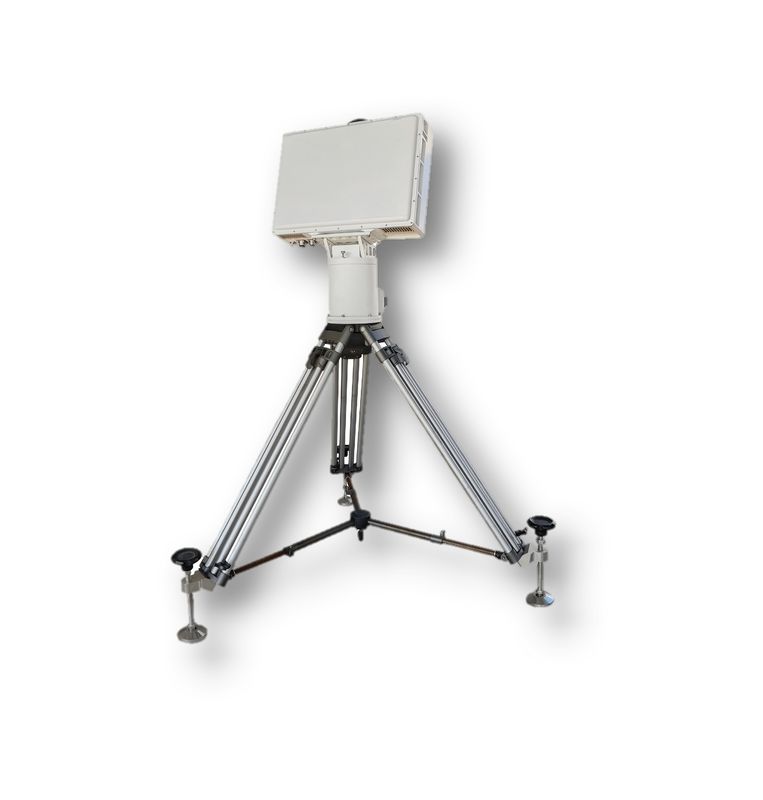

Anti Drone Radar Jamming System Low Altitude For DJI Phantom 4 Detection 1
