Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

Products

Navigation Deception Equipment

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	D/P,T/T,Western Union
Supply Capacity:	20set/month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

Model Number

LY-X-3D-I

Operating Altitude:

0-10 Km

Scanning Mode:

Pulse Doppler

Scan Rate:

Up To 60 RPM

Resolution:

Detection Range:

Up To 100 Km

Scanning Range Pitch:

0°-40°

Operating Frequency Band:

X Band

Antenna Type:

Parabolic

Frequency:

S-band

Blind Range:

Antenna Speed:

Data Update Rate:

1-10 Seconds

Scanning Range:

Azimuth：0°-360°，Pitch：0°-40°

Transmit Power:

Power Supply:

AC 220V, 50Hz

Minimum Detection Range:

Range Resolution:

1-10 M

Antenna Diameter:

1-5 M

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Digital Anti Drone Radar

6km Range Anti Drone Radar

6km Range multi beam radar

Product Description

Digital Phased Array Radar with Beidou/GPS | 6km UAV Detection & All-Weather Operation

Product Overview

The LY-X-3D-I is a fully solid-state, coherent, active digital phased array radar designed for low-altitude surveillance, including detection and tracking of general aviation aircraft, drones, and other slow-moving small targets. It provides real-time distance, azimuth, altitude, and velocity data, generating a 3D operational picture for airspace security and interception systems. Featuring automated target recognition and high reliability, it ensures effective monitoring of non-cooperative and high-threat targets in critical areas.

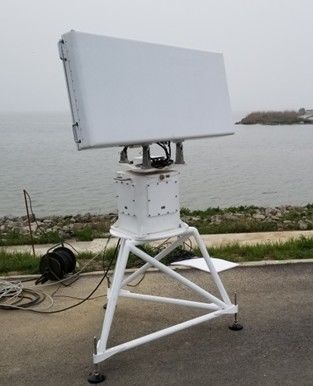

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation 0

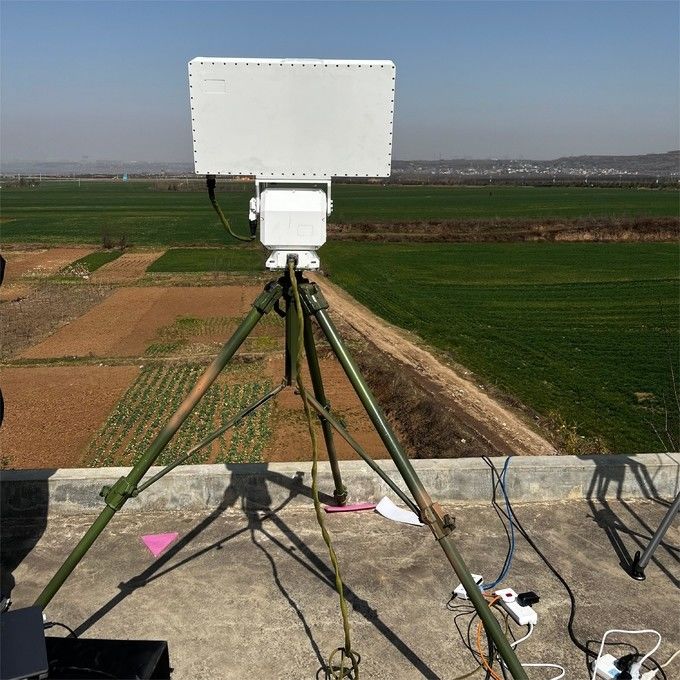

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation 1

Key Features

Superior Low-Altitude Surveillance: Optimized for slow-moving, small targets.
Advanced Technology: Flexible operation modes with altitude measurement capability.
Compact & Reliable: Highly integrated, cost-effective, and durable design.
High Precision: Sub-0.5° accuracy in altitude measurement.
Adaptability: Robust performance in diverse environments.

Technical Specifications

Category	Parameter	Details
Operating Frequency		X-band
Detection Range	Max Detection (Small Targets)	≥6 km (RCS=0.01m², extendable)
	Max Detection (General Mode)	≥25 km (RCS=2m²)
	Min Detection Distance	≤300 m
	Altitude Coverage	≥3500 m (for 2m² targets)
	Azimuth Range	0° to 360°
	Elevation Range	0° to 45°
Detection Accuracy	Distance (RMS)	≤30 m
	Azimuth (RMS)	≤0.4°
	Altitude (RMS)	≤0.5°
Resolution	Distance	≤50 m
	Azimuth	≤2.5°
	Altitude	≤4°
Data Rate		5s, 10s
Detection Probability		0.8
False Alarm Rate		10⁻⁶
Operational Performance	Power Supply	AC (220V±10%, 50Hz±5%) or generator
	Power Consumption	≤1000 W
Reliability	MTBF	≥1000 hours
	MTTR	≤30 minutes
	BIT Fault Detection Rate	≥95%
Environmental Adaptability	Operating Temperature	-30℃ to +50℃ (outdoor) / -10℃ to +40℃ (indoor)
	Storage Temperature	-45℃ to +65℃
	Humidity Resistance	98% RH (at 35℃ for outdoor)
	Wind Resistance	Operational at 25 m/s
Positioning System	Navigation & Timing	Dual-mode Beidou/GPS system (positioning accuracy ≤10m, heading ≤0.2°)

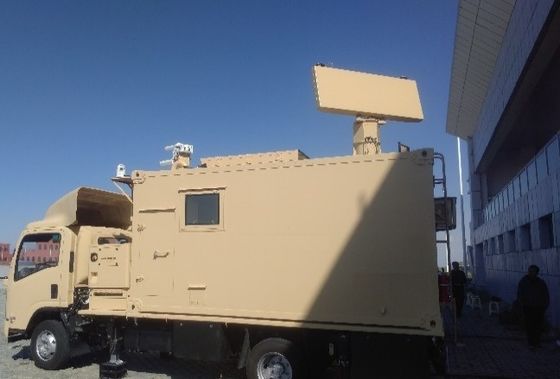

Mobility	Deployment	Vehicle-mounted, rooftop installation via elevator/crane, modular design

Performance Validation

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation 2

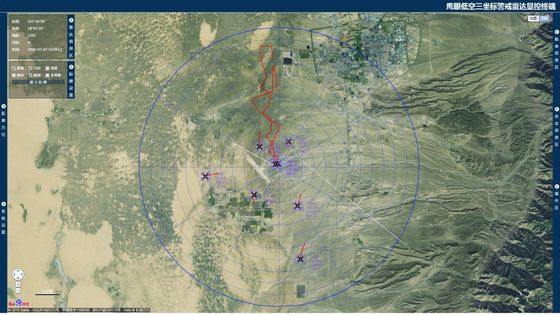

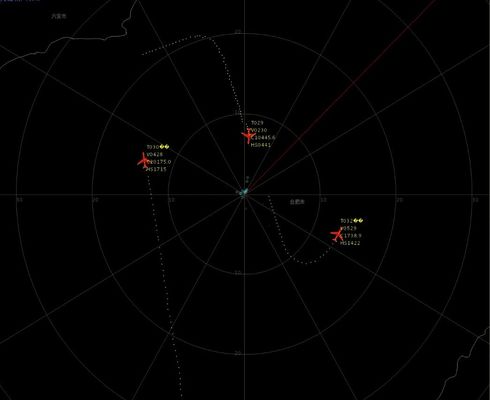

Air Traffic Surveillance: Capable of tracking flights within 6 km, as demonstrated in Figure 2.
Test Results: Continuous tracking of UAVs up to 11 km with precise distance, azimuth, and altitude measurements.

Certifications & Applications

Compliance: Meets international standards (CE, FCC).
Use Cases: Airspace security, drone defense, border surveillance, and critical infrastructure protection.

Why Choose LY-X-3D-I?

Precision: 0.5° altitude accuracy and dual-mode navigation.
Versatility: Adapts to extreme environments (-45℃ to +65℃ storage).
Scalability: Modular design for rapid deployment.
