Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking

Products

Navigation Deception Equipment

Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	D/P,T/T,Western Union
Supply Capacity:	20set/month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

Model Number

LY-X-3D-I

Operating Altitude:

0-10 Km

Scanning Mode:

Pulse Doppler

Scan Rate:

Up To 60 RPM

Resolution:

Detection Range:

Up To 100 Km

Scanning Range Pitch:

0°-40°

Operating Frequency Band:

X Band

Antenna Type:

Parabolic

Frequency:

S-band

Blind Range:

Antenna Speed:

Data Update Rate:

1-10 Seconds

Scanning Range:

Azimuth：0°-360°，Pitch：0°-40°

Transmit Power:

Power Supply:

AC 220V, 50Hz

Minimum Detection Range:

Range Resolution:

1-10 M

Antenna Diameter:

1-5 M

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Multi Function 3d Phased Array Radar

Multi Function surveillance radar system

4km range 3d Phased Array Radar

Product Description

Drone Detection Radar with TAS Mode | 4km UAV Tracking & ≤200W Power

Product Overview

The LY-Ku-3D-V Multi-Function Phased Array Radar combines 2D phased scanning and azimuth mechanical scanning for comprehensive surveillance. It supports two operational modes: full-area early warning and focused zone monitoring, enabling target detection (TWS) and high-data-rate tracking (TAS). Designed for ground personnel, vehicles, low-altitude drones, and helicopters, it provides real-time target classification and guidance data for integrated defense systems.

Key Features

Dual Surveillance Modes: Full-area scanning + focused zone tracking.
Multi-Target Classification: Detects and categorizes diverse threats (human, vehicles, drones).
Customizable Scanning: Optimizes time and resource efficiency.
Lightweight & Efficient: Low power consumption (≤200W), high integration, and compact design (≤35kg).
High-Priority Tracking: Adjustable TAS data rate (0.5–3s) for critical targets.

Technical Specifications

Category	Parameter	Details
Operating Frequency		Ku-band
Detection Range	Max Detection Distance	- Human (RCS=0.5m²): ≥5km (mechanical scan), ≥6km (phased scan)
		- Medium Vehicle: ≥10km
		- UAV (RCS=0.03m²): ≥3km (mechanical scan), ≥4km (phased scan)
	Min Detection Distance	≤100m
	Altitude Coverage	≥500m
Scanning Range	Azimuth	Phased scan: ±45°; Mechanical scan: 0°–360°
	Elevation	0°–45°
Measurement Accuracy	Distance (RMS)	≤10m
	Azimuth (RMS)	≤0.5°
	Elevation (RMS)	≤1°
Tracking Data Rate	TWS Mode	3s (mechanical/phased scan)
	TAS Mode	Adjustable (0.5–3s)
Environmental Adaptability	Operating Temperature	-40℃ to +50℃
	Storage Temperature	-50℃ to +65℃
Power Supply	Input	AC 220V±10%, 50Hz±5% (compatible with portable generators)
	Power Consumption	≤200W
Weight	Total System	≤35kg (includes antenna, servo, UPS, processing unit, and accessories)

Why Choose LY-Ku-3D-V?

Versatility: Detects ground and aerial targets with precision.
Energy Efficiency: Ultra-low power consumption for extended operations.
Rapid Deployment: Lightweight design allows quick setup in diverse environments.
Adaptive Tracking: Customizable TAS mode for critical threat prioritization.

Applications

Military & Border Security: Monitor personnel, vehicles, and UAVs in real-time.
Critical Infrastructure Protection: Secure power plants, airports, and urban areas.
Disaster Response: Track movement in complex terrains during emergencies.

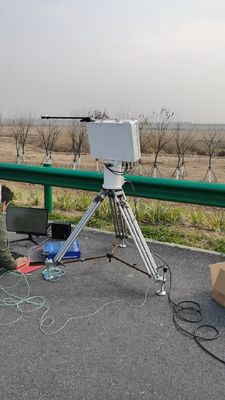

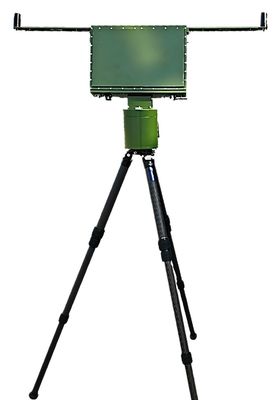

Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking 0

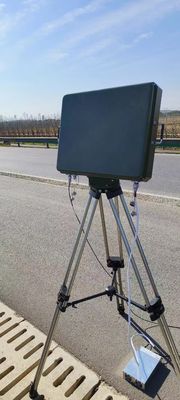

Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking 1
