Intelligent Remote Control Laser Countermeasure System Anti Drone Equipment

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	T/T,D/P,Western Union
Supply Capacity:	30sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Compatibility:

Can Be Integrated With Various Defense Systems

Product Type:

Countermeasures

Detection Distance:

2.0km

Target Type:

Unmanned Aerial Vehicles

Interception Speed:

Mach 2.5

Power Supply:

Battery Or Generator

Size:

Compact And Portable

Interception Altitude:

Up To 3km

Detection Range:

Up To 10km

Interception Method:

Missile Or Laser

Highest Altitude:

3000m

Operating Temperature:

-20°C To 50°C

Weight:

Less Than 20kg

Application:

UAV Defense

Effective Against:

Small And Medium-sized UAVs

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Intelligent Laser Countermeasure System

Intelligent Anti Drone Equipment

Remote Control Laser Countermeasure System

Product Description

Intelligent Laser Defense Platform: Real-Time Tracking, Multi-Target Strikes & Remote Control

I. Product Description

1. Product Overview

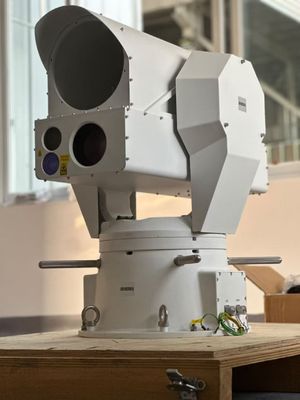

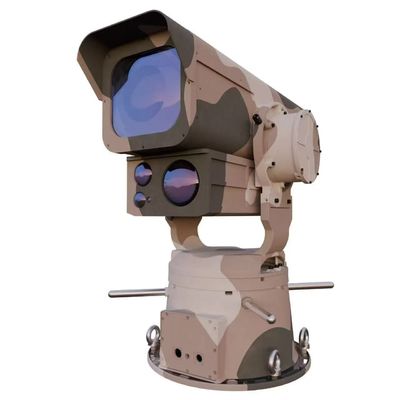

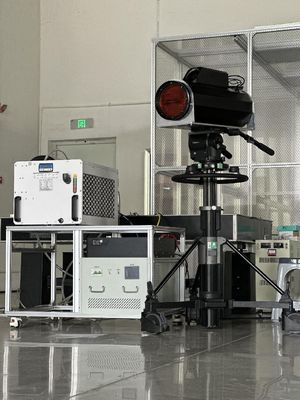

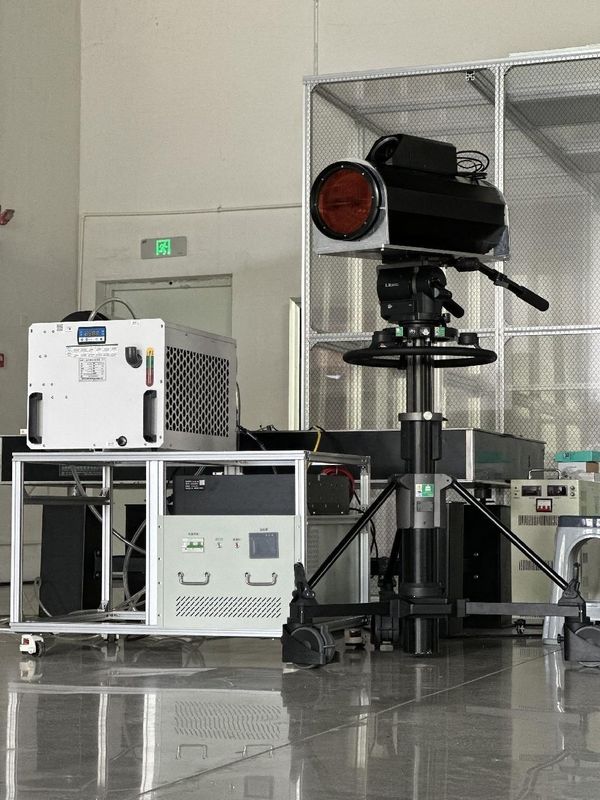

The T3 Laser Anti-Drone System comprises:

3 High-Power Laser Emitters
3 Laser Modules
1 Weak-Light Beam Combining Module
1 Coarse TV/IR Tracking Module
1 Coarse TV Tracking Module
1 Precision TV Tracking Module
1 Rangefinder Module
1 Precision Servo System
1 Integrated Control System
1 Water-Cooling Unit
1 Battery Power Supply

Key Technologies:

Fiber laser spatial beam combining for power superposition.
Adaptive optical control for enhanced beam quality and thermal management.
Modular design for easy maintenance, scalability, and cost efficiency.

Advantages:

Superior beam quality and extended engagement range.
High reliability, adaptable to diverse scenarios.
Visual tracking with rapid target acquisition and locking.
Resistant to shock, salt spray, high temperatures, dust, and corrosion.

2. System Features

Instantaneous Strike: Near-light-speed targeting, minimal computational load.
Multi-Target Flexibility: Rapid retargeting for continuous attacks.
High Energy Concentration: Minimal collateral damage.
Low Operational Cost: Economical per-strike expenditure.

Core Technologies:

Modular Beam Combining: Uses domestically developed 1070nm 3kW laser modules.
Active Closed-Loop Control: Compensates for thermal drift and atmospheric turbulence.
Inter-System Integration: Compatible with radar guidance and remote network control.

3. Certifications

Type	Certificates/Patents
Technical	- Multi-Stage Modular Beam Combining Device for High-Power Lasers
	- Adaptive Optical Monitoring System for Array Beams
	- Cyclonic Mirror Air-Cooling Device
Quality	- ISO9001 Certification
	- High-Tech Enterprise Certification

4. Technical Specifications

Table 1: Key Performance Metrics

No.	Parameter	Specification

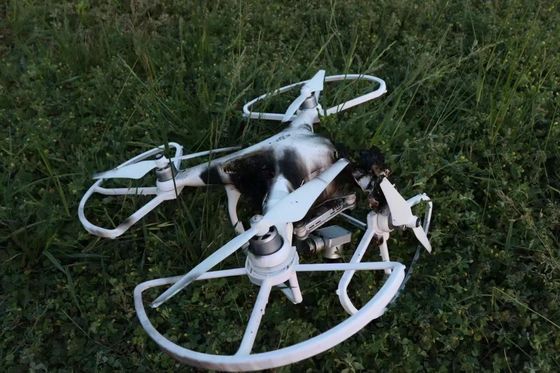

1	Target Type	Small UAVs (e.g., DJI Phantom 4)
2	Max. Engagement Distance@Time	2.6km@25s, 2km@15s
3	Retargeting Time	≤4s (between consecutive targets)
4	Continuous Operation	60 minutes
5	Laser Power	12kW
6	Wavelength	Near-infrared
7	Beam Diameter at 2500m	≤55mm
8	Cooling Method	Water-Cooled
9	Motion Range	Azimuth: -175°~+175°, Elevation: -15°~+50°
10	Battery Capacity	36kWh
11	Battery Runtime	0.5h (full-power operation)
12	System Weight	<1550kg (excluding carrier vehicle)
13	Operating Temperature	-20°C to +40°C
14	Storage Temperature	-30°C to +50°C
15	Operating Humidity	95% (at 25°C)

Note: Performance metrics are based on visibility ≥15km, humidity ≤60%, and target-background temperature difference ≥5K.

5. Additional Features

Smart Detection: Supports intrusion detection and boundary alerts.
Operational Modes: Auto-scanning, manual search, and tracking.
Durability: Wind-resistant, lightweight, anti-corrosion, and waterproof design.
Remote Control: Network-enabled for centralized command.

6. Package Contents

Component	Quantity	Remarks
T3 Laser Anti-Drone System	1	Core unit with integrated modules
Water-Cooling Unit	1	Ensures thermal stability
Battery Power Supply	1	36kWh capacity
Control Software License	1	For system operation and updates
User Manual & Certificates	1 set	Includes ISO9001 and technical patents
