Real Time Radar Jamming System Dual Polarization Phased Array

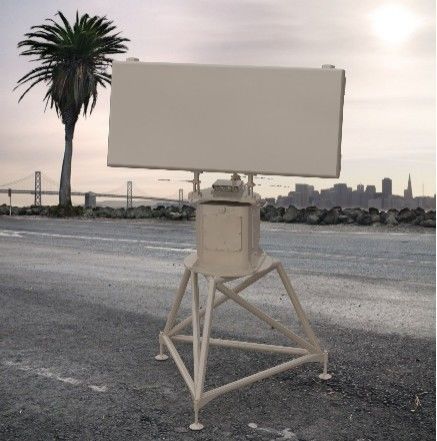

Large Image : Real Time Radar Jamming System Dual Polarization Phased Array

Product Details:

Place of Origin:	Chengdu
Brand Name:	HYH
Model Number:	LY-Ku-3D-I

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	30days
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	20set/month

Contact Now

Detailed Product Description

Scanning Range Pitch:	0°-40°	Operating Temperature:	-20 To 50 Degrees Celsius
Antenna Rotation:	360 Degrees	Power Consumption:	Less Than 5 KW
Data Processing:	Real-time	Scanning Range:	Azimuth：0°-360°，Pitch：0°-40°
Transmit Power:	160w	Antenna Speed:	Maximum 90 °/s
Transmitter Power:	1-10 KW	Range:	Up To 100 Km
Scanning Range Azimuth:	360°	Target Radial Velocity:	0.8m/s-40m/s
Resolution:	1 M	Antenna Type:	Parabolic
Polarization:	Dual Polarization	Minimum Detection Range:	10 M
Operating Frequency Band:	X Band	Range Resolution:	1-10 M
Antenna Diameter:	1-5 M	Blind Range:	180m
Scan Mode:	Sector Scan	Operating Altitude:	0-10 Km
Receiver Sensitivity:	-120 DBm	Pulse Width:	1-10 μs
Pulse Repetition Frequency:	100-1000 Hz
Highlight:	Real Time Radar Jamming System , Real Time long range radar system , Phased Array Radar Jamming System

Maximize Your Defense Capabilities with Our Top-of-the-Line Radar Jamming Products

Product Overview

The LY-Ku-3D-I Two-Dimensional Phased Array Radar adopts a phased array system with TWS (Track While Scan) and TAS (Track And Scan) modes for target detection and tracking. TWS meets general wide-area surveillance requirements, while TAS enables high-data-rate continuous tracking of critical targets. It is designed to search, detect, and track low-altitude, slow-moving small drones (e.g., UAVs), measure target parameters, and provide data to other

Key Features

Advanced System Design: Software-defined, reconfigurable architecture.
Flexible Scanning: Customizable scanning zones with high time-resource efficiency.
Dual Modes:
- Single-array phased scanning + full-space mechanical scanning.
- Four-array phased scanning for full-space coverage.
Compact & Reliable: High integration, low cost, lightweight, and robust performance.
High-Priority Tracking: Enhanced data rate for critical targets.

Technical Specifications

Category	Parameter	Details
Operating Frequency		Ku-band
Detection Range	Target Capacity	200 targets
	Max Detection Distance	≥5 km (2D phased scan mode, RCS=0.01m², extendable)
	Min Detection Distance	≤200 m
	Altitude Coverage	≥1000 m (for targets with 2m² RCS)
	Azimuth Range	Phased scan: -45° to +45°; Mechanical scan: 0° to 360°
	Elevation Range	-10° to +50°
Detection Accuracy	Distance (RMS)	≤20 m
	Azimuth (RMS)	≤0.6°
	Altitude (RMS)	≤0.9°
Detection Capability	Distance Resolution	15 m
	Azimuth Resolution	≤4°
	Altitude Resolution	≤6°
	Data Rate	6s (TWS normal mode), 2s (TWS small-target mode), 0.5s (TAS mode)
	Detection Probability	0.8
	False Alarm Rate	10⁻⁶
	Track Initiation Time	≤3 frames
Data Processing	Processing Delay	≤1s (from target detection to data output)
Operational Performance	Power Supply	AC (220V±10%, 50Hz±5%) or portable generator
	Power Consumption	≤650 W
	MTBF (Reliability)	≥1000 hours
	MTTR (Maintainability)	≤30 minutes
	BIT Fault Detection Rate	≥95%
Environmental Adaptability	Operating Temperature	-35℃ to +50℃ (outdoor equipment)
	Storage Temperature	-45℃ to +65℃
	Humidity Resistance	98% RH (at 35℃ for outdoor equipment)
	Protection Level	IP-rated three-proof capabilities (waterproof, dustproof, corrosion-resistant)

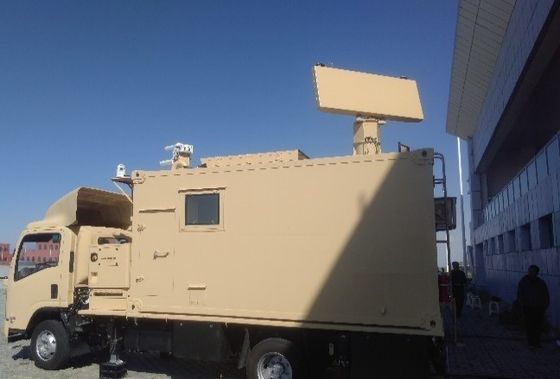

Mobility & Deployment	Transport & Installation	Compatible with standard vehicles, modular design for flexible assembly,
		elevator/hoisting installation for rooftop deployment

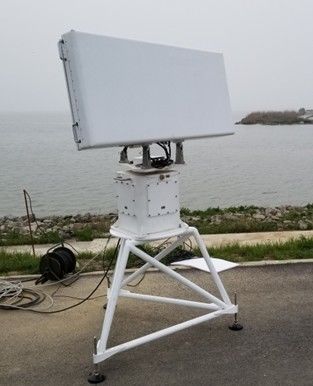

Real Time Radar Jamming System Dual Polarization Phased Array 0

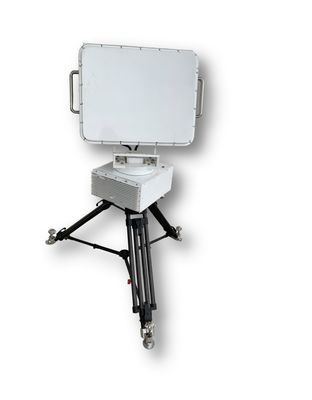

Real Time Radar Jamming System Dual Polarization Phased Array 1
