360° Navigation Deception Equipment Low Altitude Radar System Adjustable

Products

Navigation Deception Equipment

360° Navigation Deception Equipment Low Altitude Radar System Adjustable

MOQ:	1
Price:	Negotiable
Delivery Period:	15days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

chengdu

Brand Name

Model Number

DHYP-HHTS-PL

Minimum Detection Range:

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

360° Low Altitude Radar System

360° anti drone system

Adjustable Low Altitude Radar System

Product Description

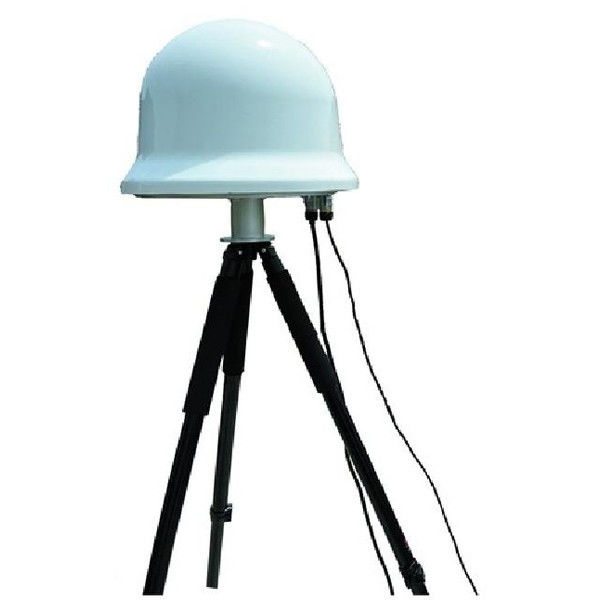

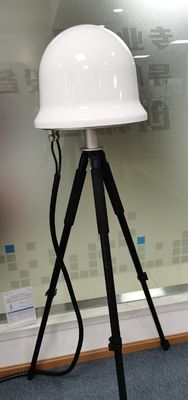

DHYP-HHTS-PL Fixed Navigation Deception Equipment

Product Introduction:

The UAV Navigation Deception Device simulates the generation and emission of UAV navigation deception signals that are completely consistent with the navigation satellite signals in orbit, and performs position deception, velocity deception and time deception on the UAV. The system can perform position deception on UAVs that rely on the GPS/GLONASS satellite navigation systems for positioning. Position deception and other methods can be used to force the UAV to land, drive it away, lure it to a specific position and prevent it from taking off within the defense zone.

Product Features:

1, Integrated satellite receivers for time synchronization with orbiting satellites.
2, The output power is adjustable and is equipped with an adaptive amplifier module that can be adjusted according to the operating distance.
3, Equipped with UAV emergency landing, evacuation, directional evacuation and no-fly functions.
4, It can emit deception signals that allow UAVs to perform various trajectories such as circular motion, linear motion, uniform motion, variable speed motion, and curved motion.

Parameter Name	Parameter Value
Operating Frequency Band	GPS-L1:1575.42MHz±1.023MHz
	GLONASS-L1:1602MHz+N*5625kHz±511kHz(N fetch-7-6)
	Galileo-E1:1575.42MHz±12.276MHz
	BDS-B1:1561.098MHz±2.046MHz
	(Customizable)
Operating Mode	Signal type: Real-time GPS-L1 generation GLONASS-L1 induction signal, with the option to generate Galileo-E1, BDS-B1 induction signal
Deception Distance	0.5-1km(10mW Transmitter Power)
Deception Distance	The effective range can be increased by increasing the transmit power.
Deception Response Time	≤10s (within effective range of action)
Effective Deception Angle	Horizontal: 360 °, Vertical: 0-90 °
Count the Number of UAVs Simultaneously	No Limit
Signal Transmit Power	10mW(EIRP)
Continuous Transmit Time	≥24h
Size	420mm*370mm
Weight	≤10kg
Ingress Protection	IP65

Tags:

Products

MOQ:	1
Price:	Negotiable
Delivery Period:	15days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

chengdu

Brand Name

HYH

Model Number

DHYP-HHTS-PL

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Minimum Order Quantity:

Price:

Negotiable

Delivery Time:

15days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Highlight

360° Low Altitude Radar System

360° anti drone system

Adjustable Low Altitude Radar System

Product Description

DHYP-HHTS-PL Fixed Navigation Deception Equipment

Product Introduction:

Parameter Name	Parameter Value
Operating Frequency Band	GPS-L1:1575.42MHz±1.023MHz
	GLONASS-L1:1602MHz+N*5625kHz±511kHz(N fetch-7-6)
	Galileo-E1:1575.42MHz±12.276MHz
	BDS-B1:1561.098MHz±2.046MHz
	(Customizable)
Operating Mode	Signal type: Real-time GPS-L1 generation GLONASS-L1 induction signal, with the option to generate Galileo-E1, BDS-B1 induction signal
Deception Distance	0.5-1km(10mW Transmitter Power)
Deception Distance	The effective range can be increased by increasing the transmit power.
Deception Response Time	≤10s (within effective range of action)
Effective Deception Angle	Horizontal: 360 °, Vertical: 0-90 °
Count the Number of UAVs Simultaneously	No Limit
Signal Transmit Power	10mW(EIRP)
Continuous Transmit Time	≥24h
Size	420mm*370mm
Weight	≤10kg
Ingress Protection	IP65
