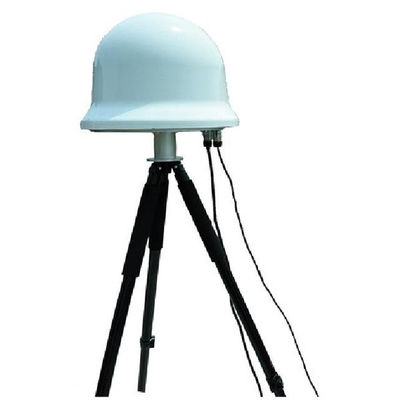

Product Overview

The UAV navigation spoofing device simulates and transmits navigation satellite signals identical to those in orbit, enabling position, speed, and time spoofing of drones.
By integrating real-time drone location and trajectory data from radar or other detection systems, the device dynamically adjusts spoofing coordinates to guide drones to land at designated locations.
The system consists of a host unit, power supply, and management software platform.

Key Features

• Full-spectrum, all-weather, long-range autonomous drone defense capabilities.

• Supports forced landing, directional expulsion, trajectory induction, and no-fly zone enforcement.

• Capable of countering drone swarms.

• Emits spoofing signals to manipulate drones into circular, linear, constant-speed, variable-speed, or curved trajectories.

• Adjustable satellite signal channel delay to optimize spoofing radius.

• Integrated satellite receiver for time synchronization with in-orbit satellites.

• Self-diagnostic and fault-reporting functions.

• Adjustable output power for customizable defense range.

• Supports protocol interfaces for system integration and secondary development.

• Multi-device networking for hierarchical and regional management.

• Interoperability with spectrum detection, jamming suppression, and radar systems for 24/7 unmanned operation.

Technical Specifications

Table 1: Supported Satellite Systems & Signal Frequencies

Table 2: Effective Spoofing Range & Power Configuration

Table 3: Additional Performance Metrics

Table 4: Radio Compliance Standards

Physical Interfaces

• Power Supply: AC 220V

• Network Port: RJ45

Dimensions & Weight

• Size: 411 × 411 × 370 mm (excluding tripod)

• Weight: ≤15kg

Package Contents
