90°–360° Coverage Phased Array Radar DBF Technology Digital

Overview

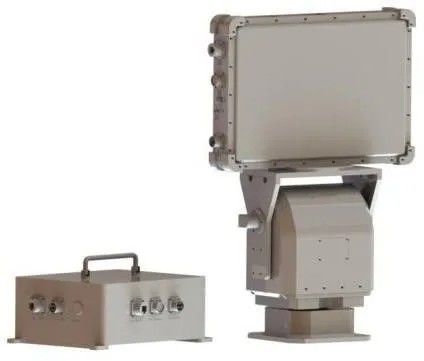

The HYH-223R-1C1K-5D is a cutting-edge air surveillance radar designed for high-precision detection and security in critical environments. Leveraging Digital Beamforming (DBF) technology, it dynamically controls radiation units to generate adaptive beams, ensuring superior tracking of drones and UAVs. With modular scalability (1–4 panels) and stationary installation, this radar offers a flexible, all-weather solution for safeguarding restricted airspace.

Key Features

• Advanced DBF Technology:

  • Real-time beam shaping and steering for optimal target tracking.

• Scalable Coverage:

  • Single panel: 90° | Dual panel: 180° | 3-panel: 270° | 4-panel: 360° azimuth.

  • 40° elevation coverage for 3D detection.

• High Precision:

  • 2km max range (1.2km for DJI Phantom/Mavic drones, RCS≈0.01m²).

  • Distance accuracy: ≤10m | Azimuth accuracy: ≤1.0°.

• Compact & Lightweight:

  • Net weight: ≤10kg | Dimensions: 445×300×400mm (ultra-portable design).

• All-Weather Resilience:

  • Operates in -40°C to +60°C | Rainproof, dustproof, and corrosion-resistant.

• Energy Efficient:

  • Low power consumption (40W) with AC220V supply.

Technical Specifications

Applications

• Critical Infrastructure: Airports, border zones, military bases, and government facilities.

• Urban Security: Event venues, VIP protection, and high-risk public areas.

• Drone Threat Mitigation: Detects and tracks unauthorized UAVs in real time.

Why Choose HYH-223R-1C1K-5D?

• Modular Design: Expand coverage seamlessly from 90° to 360° with additional panels.

• MIMO System: Multi-Input Multi-Output technology for enhanced detection accuracy.

• OEM Support: Custom branding and configurations available.

Compliance & Packaging

• IP Rating: Weatherproof (rain, dust, sand, mold, and salt-resistant).

• Transport: Secure aluminum alloy packaging for shockproof delivery.
