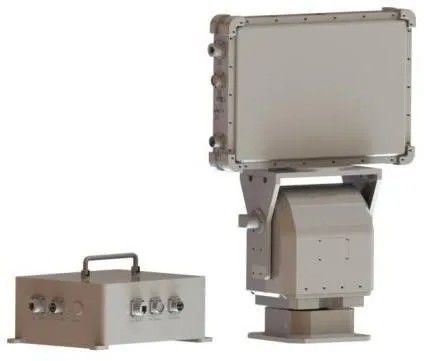

Lightweight Phased Array Tracking Radar Drone Surveillance Radar Air Surveillance
  • name
  • name
  • name
  • name

Lightweight Phased Array Tracking Radar Drone Surveillance Radar Air Surveillance

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C, T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Target Detection Range:
Over 400 Km
Material:
Aluminum Copper
Frequency Range:
2-18 GHz
Scan Style:
Azimuth Scan And Pick Phase- Scan
Transmit Power:
Up To 10 KW
Range Resolution:
1-10 M
Operating Frequency Band:
X Band
Radar System:
2D Active Phased Array
Target Tracking Range:
Over 300 Km
Data Processing:
Digital Beamforming
Operating Temperature:
-40 To 55 Degrees Celsius
Beam Steering:
Electronic
Radar Wave Band:
Ku
Target Radial Velocity:
0.8m/s-100m/s
Technical System:
DBF
Minimum Detection Range:
10 M
Scanning Range Pitch:
0°-40°
Antenna Diameter:
1-5 M
Blind Range:
180m
Scan Mode:
Sector Scan
Antenna Rotation:
360 Degrees
Scanning Range Azimuth:
360°
Operating Altitude:
0-10 Km
Receiver Sensitivity:
-120 DBm
Pulse Width:
1-10 μs
Transmitter Power:
1-10 KW
Pulse Repetition Frequency:
100-1000 Hz
Range:
Up To 100 Km
Highlight:

Lightweight Phased Array Tracking Radar

,

Lightweight Drone Surveillance Radar

,

Air Surveillance Phased Array Tracking Radar

Product Description

Lightweight 10kg Air Surveillance Radar | 2km Range, 40W Low Power, All-Weather (-40°C to +60°C



Overview

The HYH-223R-1C1K-5D is a cutting-edge air surveillance radar designed for high-precision detection and security in critical environments. Leveraging Digital Beamforming (DBF) technology, it dynamically controls radiation units to generate adaptive beams, ensuring superior tracking of drones and UAVs. With modular scalability (1–4 panels) and stationary installation, this radar offers a flexible, all-weather solution for safeguarding restricted airspace.

Key Features

  • Advanced DBF Technology:

    • Real-time beam shaping and steering for optimal target tracking.

  • Scalable Coverage:

    • Single panel: 90° | Dual panel: 180° | 3-panel: 270° | 4-panel: 360° azimuth.

    • 40° elevation coverage for 3D detection.

  • High Precision:

    • 2km max range (1.2km for DJI Phantom/Mavic drones, RCS≈0.01m²).

    • Distance accuracy: ≤10m | Azimuth accuracy: ≤1.0°.

  • Compact & Lightweight:

    • Net weight: ≤10kg | Dimensions: 445×300×400mm (ultra-portable design).

  • All-Weather Resilience:

    • Operates in -40°C to +60°C | Rainproof, dustproof, and corrosion-resistant.

  • Energy Efficient:

    • Low power consumption (40W) with AC220V supply.

Technical Specifications

Parameter Details
Frequency Band C-Band (5.5–5.8 GHz)
Detection Range Up to 2km (1.2km for micro-drones) Min. range: ≤100m
Target Speed 0.2m/s – 25m/s Speed precision: ≤0.2m/s
Data Refresh Rate ≤1.5 seconds
Output Power 4W per panel (peak)
Interface Ethernet (UDP protocol)
Mounting Stationary installation
Package Rugged aluminum alloy casing

Applications

  • Critical Infrastructure: Airports, border zones, military bases, and government facilities.

  • Urban Security: Event venues, VIP protection, and high-risk public areas.

  • Drone Threat Mitigation: Detects and tracks unauthorized UAVs in real time.

Why Choose HYH-223R-1C1K-5D?

  • Modular Design: Expand coverage seamlessly from 90° to 360° with additional panels.

  • MIMO System: Multi-Input Multi-Output technology for enhanced detection accuracy.

  • OEM Support: Custom branding and configurations available.

Compliance & Packaging

  • IP Rating: Weatherproof (rain, dust, sand, mold, and salt-resistant).

  • Transport: Secure aluminum alloy packaging for shockproof delivery.
