Ground Surveillance Radar HYH 215-4C 360° Phased Array Security Radar for All-Weather Ground Target Detection
  • name
  • name
  • name
  • name

Ground Surveillance Radar HYH 215-4C 360° Phased Array Security Radar for All-Weather Ground Target Detection

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C, T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Target Tracking:
Single Or Multiple
Dimensions:
1.5m X 1.5m X 2m
Power Supply:
220V AC
Range:
Up To 100 Km
Transmit Power:
320w
Scanning Range Pitch:
0°-40°
Operating Frequency Band:
X Band
Antenna Rotation:
360 Degrees
Antenna Diameter:
1-3 M
Data Output:
Digital
Scanning Range:
Azimuth: 0°-360°,Pitch: 0°-45°
Pulse Repetition Frequency:
100-1000 Hz
Blind Range:
180m
Scanning Range Azimuth:
360°
Target Radial Velocity:
10-1000m/s
Minimum Detection Range:
10 M
Range Resolution:
1-10 M
Antenna Diameter:
1-5 M
Scan Mode:
Sector Scan
Operating Altitude:
0-10 Km
Receiver Sensitivity:
-120 DBm
Pulse Width:
1-10 μs
Transmitter Power:
1-10 KW
Highlight:

security ground surveillance radar

,

security ground based air surveillance radar

,

digital ground surveillance radar

Product Description

Product Overview

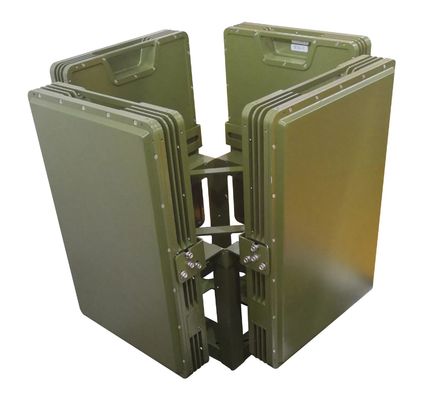

The GSR 215-4C is an advanced C-band phased array ground surveillance radar designed for 24/7 security monitoring of critical areas. Featuring a quad-array system (four integrated GSR 215-1C radars), it delivers seamless 360° coverage with high-precision detection of moving targets, including pedestrians and vehicles. Built for harsh environments, this radar combines MIMO technology and pulse Doppler processing to ensure reliable performance in rain, dust, sand, and extreme temperatures.

Key Features

✅ 360° Full Coverage: Quad-array design eliminates blind zones for uninterrupted surveillance.
✅ High Precision: Detects targets as small as pedestrians (2.5 km) and vehicles (5 km) with ≤5m range accuracy.
✅ All-Weather Reliability: IP-rated protection against rain, dust, sand, moisture, and salt corrosion.
✅ Rapid Response: Data refresh rate ≤1.5 seconds for real-time threat assessment.
✅ Low Power Consumption: 160W operation with AC220V input for cost-effective deployment.

Technical Specifications

Parameter Specification
Model GSR 215-4C
Frequency Band C Band (5.5–5.8 GHz)
Detection Range Pedestrians: 2.5 km
Vehicles: 5 km
Minimum Detection Range ≤100 m
Azimuth Coverage 360° (4-panel phased array)
Elevation Coverage 9°
Accuracy Range: ≤5 m
Azimuth: ≤1.0°
Speed: ≤0.2 m/s
Target Speed Range 0.2–30 m/s
Power Supply AC220V, 160W
Net Weight ≤50 kg
Dimensions 580mm × 580mm × 820mm (L×W×H)
Operating Temperature -40°C to +60°C
Interface Ethernet (UDP protocol)

Applications

  • Border Security: Monitor illegal crossings and intrusions.

  • Critical Infrastructure: Protect oil fields, prisons, and power plants.

  • Perimeter Defense: Secure military bases, airports, and industrial zones.

  • Disaster Response: Detect movement in low-visibility conditions.

System Advantages

  • Military-Grade Durability: Robust aluminum alloy housing with IP67 protection.

  • Modular Design: Easy integration with existing security systems via Ethernet.

  • Low Maintenance: Solid-state components ensure long-term reliability.

  • Scalable Deployment: Suitable for stationary installation in remote or urban areas.

Certifications & Compliance

  • ISO Certified: Meets international quality standards.

  • Environmental Resilience: Tested for rain, dust, sand, mould, and salt resistance.

Production Capacity: 1,000 units/year
Packaging: Aluminum alloy protective casing for safe transportation.
Customization: OEM services available for tailored configurations.

Enhance Your Security Today!
Contact us for quotes, technical support, or site-specific deployment plans.
