Advanced 3D X Band Radar For Critical Facilities 4 Panel Phased Array Configuration

Military-Grade 3D Surveillance Radar | Anti-Drone Detection for Airports, Borders & Critical Facilities

Product Overview

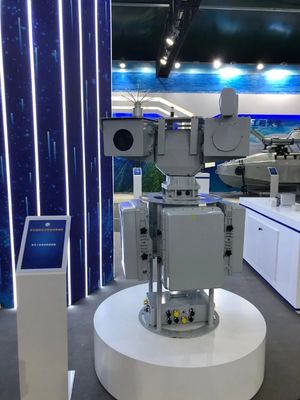

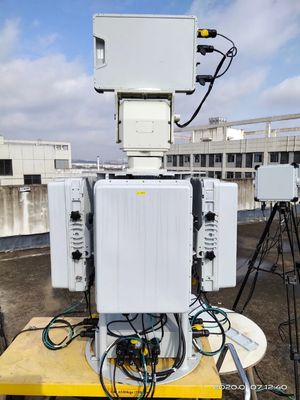

The HYH 223-5C1K-3D is a cutting-edge security surveillance radar system designed for detecting low-altitude drones and airborne threats. Built with advanced phased array and pulse Doppler technology, this C-band radar ensures superior performance in all weather conditions. Unlike its single-panel counterpart (HYH 223-1C1K), the 5C1K-3D features a 4-panel phased array configuration paired with a dedicated 3D height-finding radar, enabling 360° azimuth coverage and precise altitude measurement for comprehensive airspace monitoring.

Key Features

• 360° + 3D Detection: Four-panel phased array system with integrated height-finding radar for full-coverage surveillance.

• High Precision: ≤10m distance accuracy, ≤1.0° azimuth accuracy, and ≤0.2m/s speed precision.

• Advanced MIMO Technology: Multi-Input Multi-Output system enhances target resolution and tracking.

• Wide Detection Range: Detects drones as small as DJI Phantom 3/4 (RCS≈0.01m²) up to 1.2km.

• All-Weather Reliability: Operates in extreme temperatures (-40°C to +60°C) with rain, dust, sand, and corrosion resistance.

• Compact & Robust: Lightweight (≤70kg) and durable design for easy deployment in critical environments.

Applications
Ideal for safeguarding high-security zones:

• Airports

• Military Bases

• Border Surveillance

• Critical Infrastructure Protection

Technical Specifications

Why Choose the HYH 223-5C1K-3D?
Combining high-speed data processing, military-grade durability, and 3D spatial tracking, this radar delivers unmatched situational awareness for counter-drone operations and airspace security. Its modular design ensures rapid deployment and integration with existing defense systems, making it a critical asset for modern surveillance needs.
