Wide Detection Range Phased Array Radar For Military Bases 360°

Products

Navigation Deception Equipment

Wide Detection Range Phased Array Radar For Military Bases 360°

MOQ:	1
Price:	Negotiable
Delivery Period:	30
Payment Method:	L/C,T/T
Supply Capacity:	10sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Tracking Mode:

TWS

Target Radial Velocity:

0.8m/s-20m/s

Number Of Elements:

Hundreds To Thousands

Scanning Range:

0.24km-26km

Target Tracking Capability:

Multiple Targets

Radar System:

2D Active Phased Array

Data Processing:

Real-time Digital Signal Processing (DSP)

Beam Steering:

Digital Beamforming

Antenna Speed:

≤10rpm

Scan Style:

Azimuth Scan And Pick Frequency Scan

Operating Temperature:

-40°C To +55°C

Technical System:

DBF

Material:

Aluminum Copper

Power Output:

Up To 1 MW

Polarization:

Dual-Polarization

Highlight:

Wide Detection Range Phased Array Radar

Phased Array Radar For Military Bases

Wide Detection Range ground surveillance radar

Product Description

Phased Array + MIMO C-Band Radar | 0.01m² RCS Drone Detection with Real-Time 3D Height Mapping

Product Overview

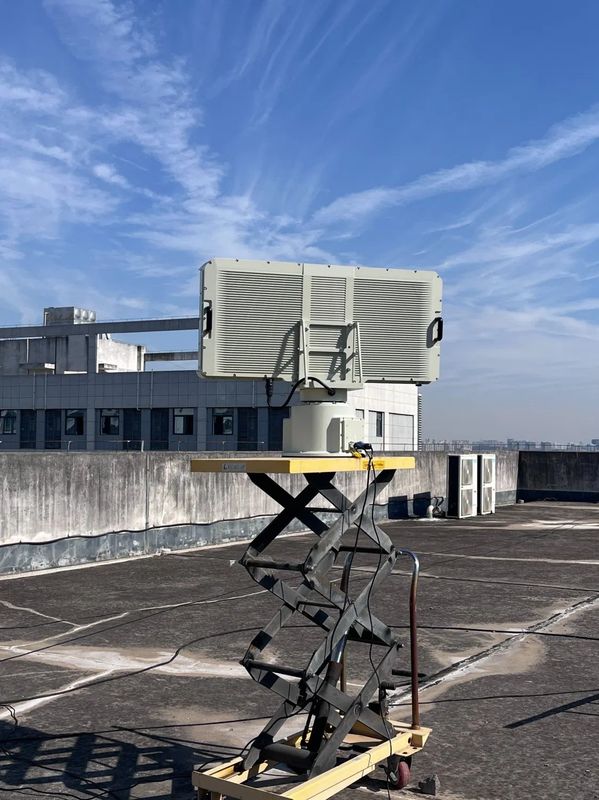

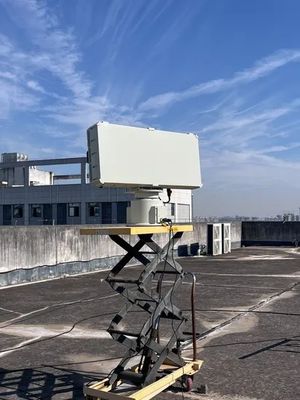

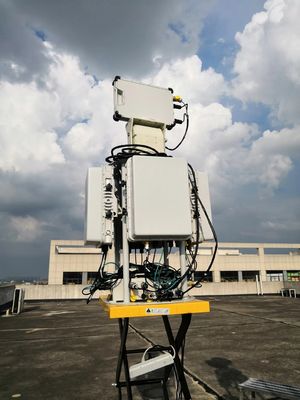

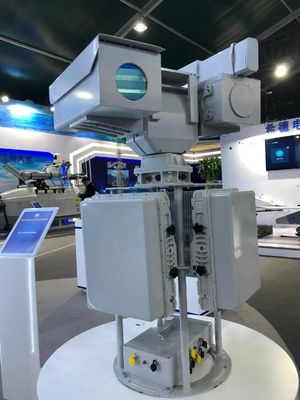

The HYH 223-5C1K-3D is a cutting-edge security surveillance radar system designed for detecting low-altitude drones and airborne threats. Built with advanced phased array and pulse Doppler technology, this C-band radar ensures superior performance in all weather conditions. Unlike its single-panel counterpart (HYH 223-1C1K), the 5C1K-3D features a 4-panel phased array configuration paired with a dedicated 3D height-finding radar, enabling 360° azimuth coverage and precise altitude measurement for comprehensive airspace monitoring.

Key Features

360° + 3D Detection: Four-panel phased array system with integrated height-finding radar for full-coverage surveillance.
High Precision: ≤10m distance accuracy, ≤1.0° azimuth accuracy, and ≤0.2m/s speed precision.
Advanced MIMO Technology: Multi-Input Multi-Output system enhances target resolution and tracking.
Wide Detection Range: Detects drones as small as DJI Phantom 3/4 (RCS≈0.01m²) up to 1.2km.
All-Weather Reliability: Operates in extreme temperatures (-40°C to +60°C) with rain, dust, sand, and corrosion resistance.
Compact & Robust: Lightweight (≤70kg) and durable design for easy deployment in critical environments.

Applications
Ideal for safeguarding high-security zones:

Airports
Military Bases
Border Surveillance
Critical Infrastructure Protection

Technical Specifications

Parameter	Specification
Operating Frequency	C-Band (5.5–5.8 GHz)
Detection Range	1.2 km (DJI Phantom 3/4, Mavic series)
Min. Detection Range	≤100 m
Azimuth Coverage	360° (4-panel phased array) + 3D height measurement
Elevation Coverage	40°
Data Rate	≤1.5 seconds
Peak Output Power	4W per panel
Power Supply	AC220V / 250W
Interface	Ethernet (UDP protocol)
Dimensions	725mm × 725mm × 735mm (2D mode) / 725mm × 725mm × 1400mm (3D mode)
Operating Temp.	-40°C to +60°C
Environmental Rating	Rainproof, Dustproof, Sandproof, Moisture-resistant, Mold-resistant, Salt-resistant

Why Choose the HYH 223-5C1K-3D?
Combining high-speed data processing, military-grade durability, and 3D spatial tracking, this radar delivers unmatched situational awareness for counter-drone operations and airspace security. Its modular design ensures rapid deployment and integration with existing defense systems, making it a critical asset for modern surveillance needs.
