Robust Advanced Radar Surveillance System Air Defense Radar All Weather

Products

Navigation Deception Equipment

Robust Advanced Radar Surveillance System Air Defense Radar All Weather

MOQ:	1
Price:	Negotiable
Delivery Period:	30
Payment Method:	L/C,T/T
Supply Capacity:	10sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Detection Modes:

Air, Land, And Sea

Transmit Power:

Up To 10 KW

Radar System:

2D Active Phased Array

Frequency Range:

2-18 GHz

Beam Steering:

Digital Beamforming

Scanning Range:

0.24km-26km

Range Resolution:

Less Than 1 Meter

Blind Range:

240m

Size:

≤700*290*450(mm)

Power Supply:

AC 220V, 50Hz

Operating Frequency Band:

X Band

Antenna Speed:

≤10rpm

Operating Temperature:

-40°C To +55°C

Target Tracking Range:

Over 300 Km

Technical System:

Linear Frequency Modulated Pulse

Highlight:

Robust Advanced Radar Surveillance System

Robust Air Defense Radar

All Weather Advanced Radar Surveillance System

Product Description

Compact 70kg 3D Radar System with ≤1.5s Refresh Rate for Rapid Threat Response

Product Overview

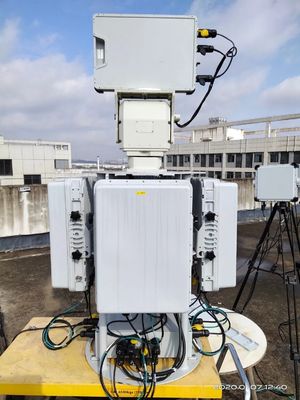

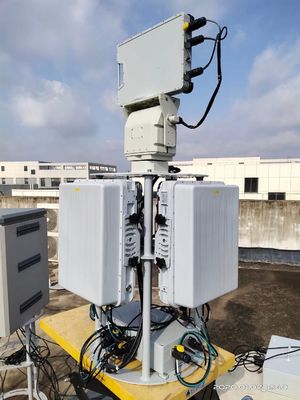

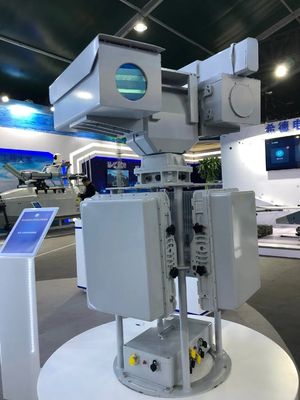

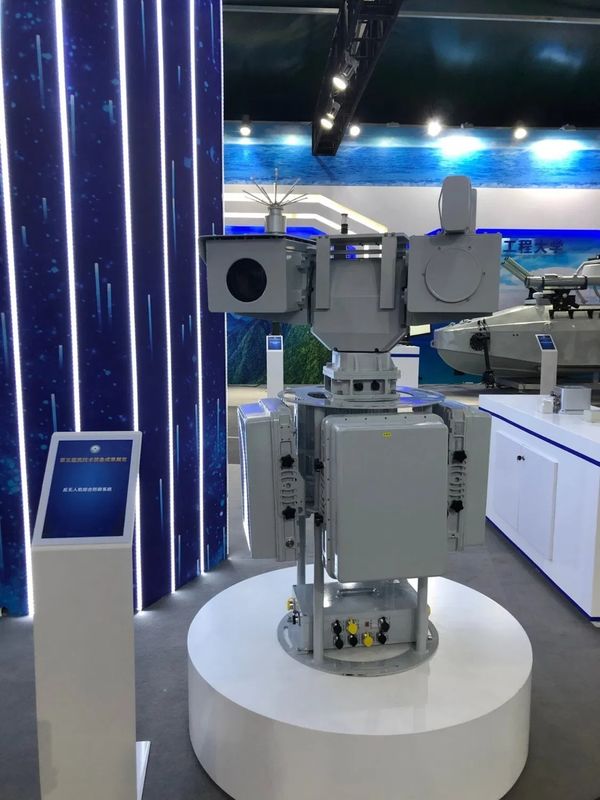

The HYH 223-5C1K-3D is a cutting-edge security surveillance radar system designed for detecting low-altitude drones and airborne threats. Built with advanced phased array and pulse Doppler technology, this C-band radar ensures superior performance in all weather conditions. Unlike its single-panel counterpart (HYH 223-1C1K), the 5C1K-3D features a 4-panel phased array configuration paired with a dedicated 3D height-finding radar, enabling 360° azimuth coverage and precise altitude measurement for comprehensive airspace monitoring.

Key Features

360° + 3D Detection: Four-panel phased array system with integrated height-finding radar for full-coverage surveillance.
High Precision: ≤10m distance accuracy, ≤1.0° azimuth accuracy, and ≤0.2m/s speed precision.
Advanced MIMO Technology: Multi-Input Multi-Output system enhances target resolution and tracking.
Wide Detection Range: Detects drones as small as DJI Phantom 3/4 (RCS≈0.01m²) up to 1.2km.
All-Weather Reliability: Operates in extreme temperatures (-40°C to +60°C) with rain, dust, sand, and corrosion resistance.
Compact & Robust: Lightweight (≤70kg) and durable design for easy deployment in critical environments.

Applications
Ideal for safeguarding high-security zones:

Airports
Military Bases
Border Surveillance
Critical Infrastructure Protection

Technical Specifications

Parameter	Specification
Operating Frequency	C-Band (5.5–5.8 GHz)
Detection Range	1.2 km (DJI Phantom 3/4, Mavic series)
Min. Detection Range	≤100 m
Azimuth Coverage	360° (4-panel phased array) + 3D height measurement
Elevation Coverage	40°
Data Rate	≤1.5 seconds
Peak Output Power	4W per panel
Power Supply	AC220V / 250W
Interface	Ethernet (UDP protocol)
Dimensions	725mm × 725mm × 735mm (2D mode) / 725mm × 725mm × 1400mm (3D mode)
Operating Temp.	-40°C to +60°C
Environmental Rating	Rainproof, Dustproof, Sandproof, Moisture-resistant, Mold-resistant, Salt-resistant

Why Choose the HYH 223-5C1K-3D?
Combining high-speed data processing, military-grade durability, and 3D spatial tracking, this radar delivers unmatched situational awareness for counter-drone operations and airspace security. Its modular design ensures rapid deployment and integration with existing defense systems, making it a critical asset for modern surveillance needs.
