High Performance Phased Array Radar High Precision Scalable Coverage

Modular Air Surveillance Radar | 90° to 360° Coverage for Anti-Drone & Border Security

Product Overview
The HYH 223-1C1K is a compact, high-performance air surveillance radar designed for critical security applications. Utilizing Digital Beamforming (DBF) technology and phased array + pulse Doppler integration, this C-band radar delivers precise detection of low-RCS targets like drones (e.g., DJI Phantom 3/4, Mavic series) up to 1.2 km. Its modular design allows flexible deployment with single-panel 90° coverage or expanded configurations (dual-panel 180°, 3-panel 270°, 4-panel 360°), making it ideal for adaptive threat monitoring in diverse environments.

Key Features

• DBF Technology: Digitally control beam amplitude/phase for dynamic, shape-adaptive scanning.

• Lightweight & Compact: ≤10kg net weight, 445×300×400mm dimensions for easy stationary installation.

• High Precision: ≤10m distance accuracy, ≤1.0° azimuth accuracy, and ≤0.2m/s speed resolution.

• All-Weather Operation: Functions flawlessly in -40°C to +60°C with IP-rated rain, dust, sand, and corrosion resistance.

• Low Power Consumption: AC220V/40W operation for cost-effective 24/7 surveillance.

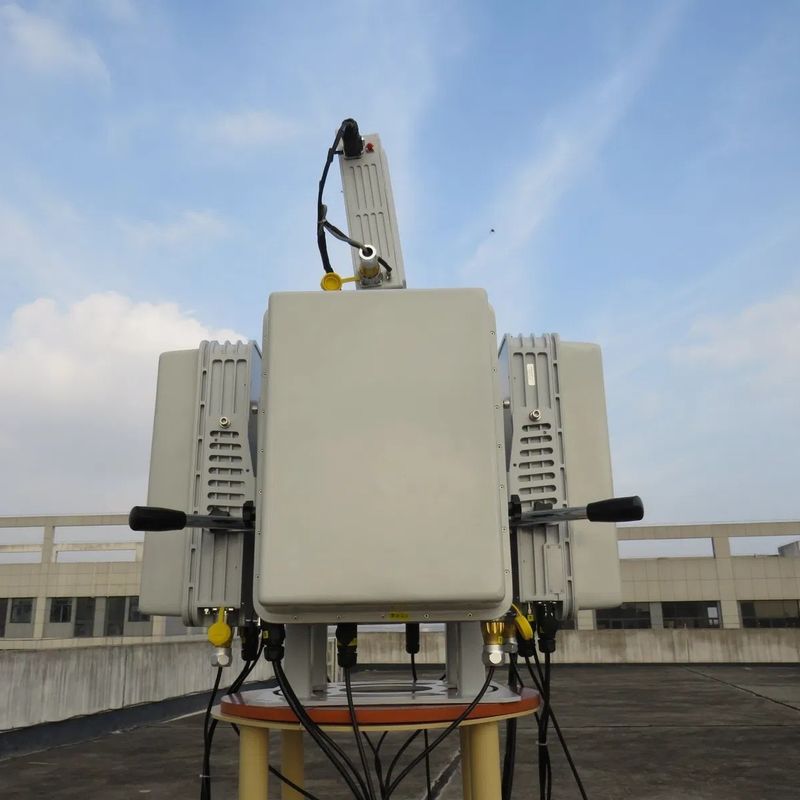

• Scalable Coverage: Expand azimuth coverage from 90° (single panel) to 360° (4-panel system).

Applications

• Airport perimeter security

• Border surveillance

• Critical infrastructure protection

• Communication electronic systems integration

Technical Specifications

Why Choose HYH 223-1C1K?

• Modular Flexibility: Customize coverage from 90° to 360° to match site-specific needs.

• Military-Grade Durability: Aluminum alloy packaging ensures rugged protection during transport and deployment.

• ISO-Certified Quality: Reliable performance compliant with international standards.

• Rapid Response: ≤1.5s data rate enables real-time threat tracking and countermeasure coordination.
