Compact Real Time Coastal Surveillance Radar System Military Surveillance Radar

Products

Navigation Deception Equipment

Compact Real Time Coastal Surveillance Radar System Military Surveillance Radar

MOQ:	1
Price:	Negotiable
Delivery Period:	30
Payment Method:	L/C, T/T
Supply Capacity:	10sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Target Tracking:

Multiple

Target Classification:

Air, Ground, And Sea

Material:

Aluminum Copper

Power Supply:

AC/DC

Antenna Speed:

≤10rpm

Beam Steering:

Electronic

Data Processing:

Digital

Radar Wave Band:

Scan Style:

Azimuth Scan And Pick Phase- Scan

Blind Range:

180m

Frequency Range:

2-18 GHz

Radar System:

2D Active Phased Array

Operating Frequency Band:

X Band

Interoperability:

Compatible With Other Radar Systems

Antenna Type:

Active Electronically Scanned Array (AESA)

Minimum Detection Range:

10 M

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Compact Coastal Surveillance Radar System

Compact Military Surveillance Radar

Real Time Coastal Surveillance Radar System

Product Description

Product Overview

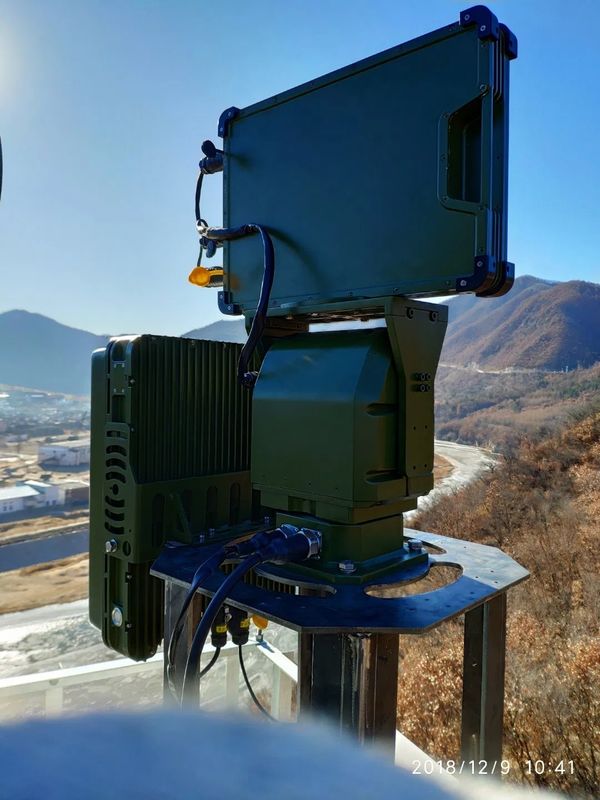

The HYH 223-1C1K is a compact, high-performance air surveillance radar designed for critical security applications. Utilizing Digital Beamforming (DBF) technology and phased array + pulse Doppler integration, this C-band radar delivers precise detection of low-RCS targets like drones (e.g., DJI Phantom 3/4, Mavic series) up to 1.2 km. Its modular design allows flexible deployment with single-panel 90° coverage or expanded configurations (dual-panel 180°, 3-panel 270°, 4-panel 360°), making it ideal for adaptive threat monitoring in diverse environments.

Key Features

DBF Technology: Digitally control beam amplitude/phase for dynamic, shape-adaptive scanning.
Lightweight & Compact: ≤10kg net weight, 445×300×400mm dimensions for easy stationary installation.
High Precision: ≤10m distance accuracy, ≤1.0° azimuth accuracy, and ≤0.2m/s speed resolution.
All-Weather Operation: Functions flawlessly in -40°C to +60°C with IP-rated rain, dust, sand, and corrosion resistance.
Low Power Consumption: AC220V/40W operation for cost-effective 24/7 surveillance.

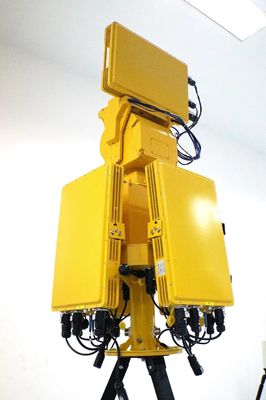

Scalable Coverage: Expand azimuth coverage from 90° (single panel) to 360° (4-panel system).

Applications

Airport perimeter security
Border surveillance
Critical infrastructure protection
Communication electronic systems integration

Technical Specifications

Parameter	Specification
Model	HYH 223-1C1K
Frequency	C-Band (5.5–5.8 GHz)
Detection Range	1.2 km (RCS≈0.01m² targets) / ≤100m minimum range
Azimuth Coverage	90° (single panel), expandable to 180°/270°/360° with multi-panel configurations
Elevation Coverage	40°
Data Refresh Rate	≤1.5 seconds
Output Power	4W per panel
Power Supply	AC220V / 40W
Net Weight	≤10kg
Interface	Ethernet (UDP protocol)
Operating Temp.	-40°C to +60°C
Environmental Protection	Rainproof, dustproof, sandproof, moisture/mold/salt resistant

Why Choose HYH 223-1C1K?

Modular Flexibility: Customize coverage from 90° to 360° to match site-specific needs.
Military-Grade Durability: Aluminum alloy packaging ensures rugged protection during transport and deployment.
ISO-Certified Quality: Reliable performance compliant with international standards.
Rapid Response: ≤1.5s data rate enables real-time threat tracking and countermeasure coordination.
