Airports All Weather Perimeter Surveillance Radar Uav Radar Detection

Military-Grade Drone Defense Radar – Securing Airports, Prisons & Borders | All-Weather Operation

Overview

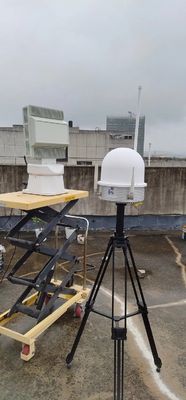

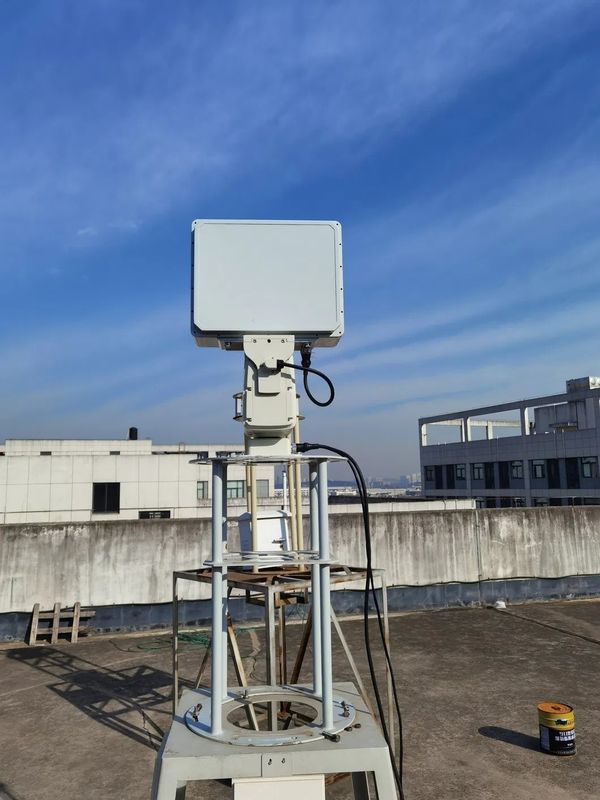

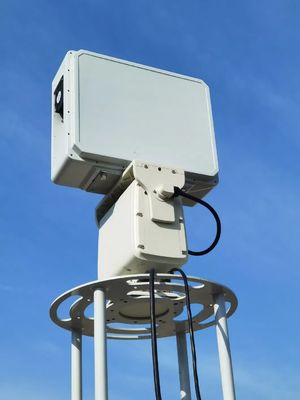

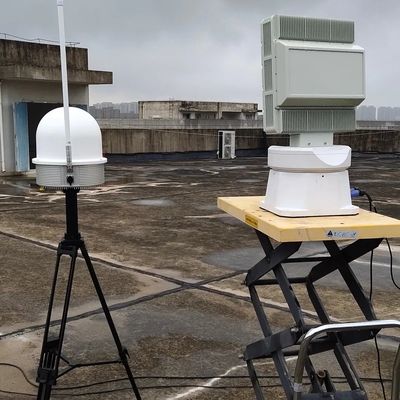

The HYH 226X-1X3K-3D is a cutting-edge X-band radar system designed for precise airspace surveillance in high-security environments. Comprising a radar array and turntable, it specializes in detecting, tracking, and alerting against micro/small civil UAVs (e.g., DJI Phantom-class drones) in critical areas such as prisons, border zones, exhibitions, and airports. With phased array and pulse Doppler technology, it delivers real-time target coordinates, including azimuth, distance, altitude, speed, and trajectory data.

Key Features

• High Accuracy & Resolution:

  • Distance accuracy: ≤10m

  • Azimuth/Elevation accuracy: ≤1.0°

  • Minimum detection range: ≤150m | Max range: ≥3.5km (RCS≈0.01m²)

• Advanced MIMO System: Multi-Input Multi-Output technology for enhanced tracking capabilities.

• 360° Coverage: Full azimuth scan (0°–360°) and elevation coverage (0°–40°).

• Rapid Data Updates: ≥0.25 times/sec refresh rate for real-time situational awareness.

• All-Weather Reliability: Operates seamlessly in rain, dust, sand, humidity, and extreme temperatures.

• Low Power Consumption: ≤240W with standard AC220V-240V input.

Applications

• Airport perimeter security

• Border surveillance

• Prison and detention facility monitoring

• Critical infrastructure protection (e.g., power plants, government facilities)

• Event security (exhibitions, public gatherings)

Technical Specifications

Why Choose the HYH 226X-1X3K-3D?

• Precision Targeting: Accurately pinpoints UAV location and movement for rapid response.

• Compact & Durable: Lightweight, rugged design for easy deployment in harsh conditions.

• Seamless Integration: Ethernet-ready for integration with broader security networks.
