Compact Phased Array Radar 5km Vessel Detection Marine Security

C-Band Coastal Radar – 5km Vessel Detection | ≤4kg Portable Design | All-Weather Marine Security

Overview

The HYH 501 Series (Models: 1C3K/2C3K/3C3K/4C3K) is a state-of-the-art C-band radar system engineered for precision monitoring of coastal and inland waterways. Leveraging fully digital active phased array technology and adaptive detection algorithms, it delivers real-time tracking of vessels (5m–10m fishing boats) up to 5.0km range, even in harsh marine environments. Compact and rapidly deployable, it is ideal for enhancing maritime safety, illegal fishing deterrence, and navigational efficiency.

Key Features

• Advanced Phased Array System:

  • Non-uniform detection via phase-sweep azimuth electrical scanning

  • Digital Beamforming (DBF) & adaptive Doppler clutter suppression

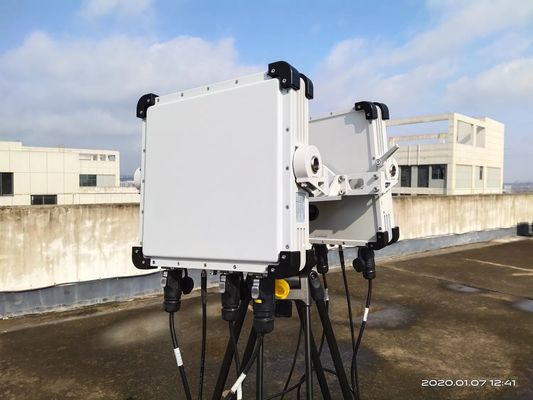

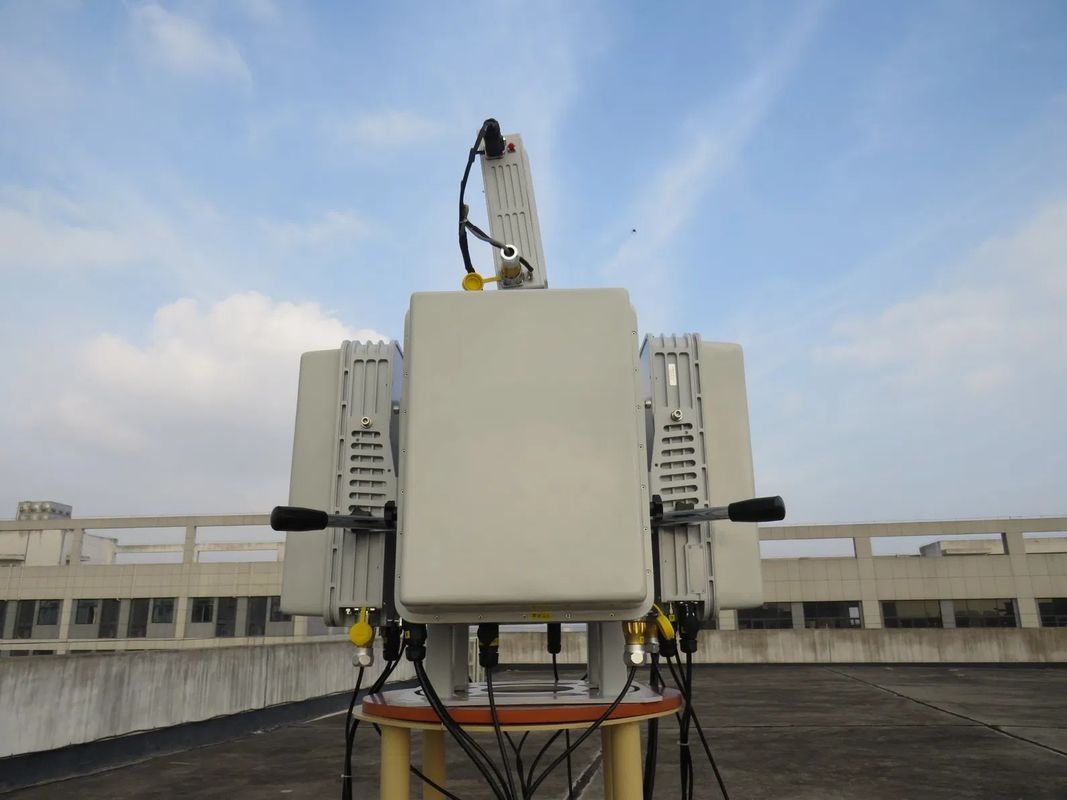

  • Multi-Panel Flexibility: 90° coverage (single panel) / 180° (dual panels)

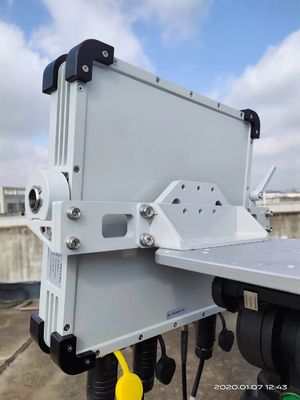

• Ultra-Lightweight Design:

  • Radar panel: ≤4.0kg | Control box: ≤2.5kg

  • Rapid setup by a single operator (<30 minutes)

• High-Speed Tracking:

  • Data refresh rate: ≥1 time/sec

  • Speed detection: 0.5m/s–30m/s (±0.2m/s accuracy)

• All-Weather Resilience:

  • Operates in rain, sand, salt fog, and extreme temps (-40°C to +55°C)

  • IP66-rated protection against moisture, dust, and corrosion

Applications

• Coastal fishing zone management & illegal activity monitoring

• Port/harbor traffic control & collision avoidance

• Inland waterway navigation assistance

• Critical infrastructure protection (offshore platforms, bridges)

Technical Specifications

Why Choose the HYH501 Series?

• Rapid Deployment: Modular design enables quick installation in remote coastal areas.

• Cost-Effective: Low power consumption (≤85W) reduces operational expenses.

• Military-Grade Durability: Built to withstand corrosive marine conditions.

• Scalable Coverage: Combine panels for expanded surveillance zones (up to 180°).
