Low Altitude Phased Array Radar High Precision WaveSonics 360° 3D Coverage

WaveSonics HYH 223-5C1K-3D C-Band Air Surveillance Radar | 1.2km Drone Detection, 360° 3D Coverage

Overview

The HYH 223-5C1K-3D is an advanced phased array security surveillance radar designed for detecting and tracking low-altitude drones and UAVs. Built with cutting-edge MIMO (Multi-Input Multi-Output) technology, it delivers unparalleled accuracy and reliability for critical airspace monitoring. Ideal for 360° coverage and 3D height detection, this radar ensures robust performance in all weather conditions.

Key Features

• High Precision:

  • Detection range: 1.2 km (DJI Phantom 3/4, Mavic series, RCS ≈0.01m²)

  • Distance accuracy: ≤10 m | Azimuth accuracy: ≤1.0° | Speed precision: ≤0.2 m/s

• Wide Coverage:

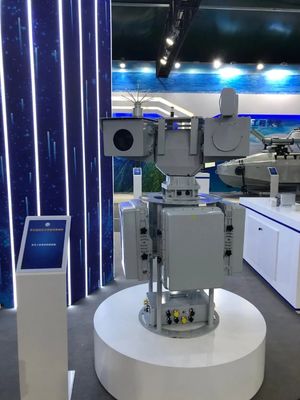

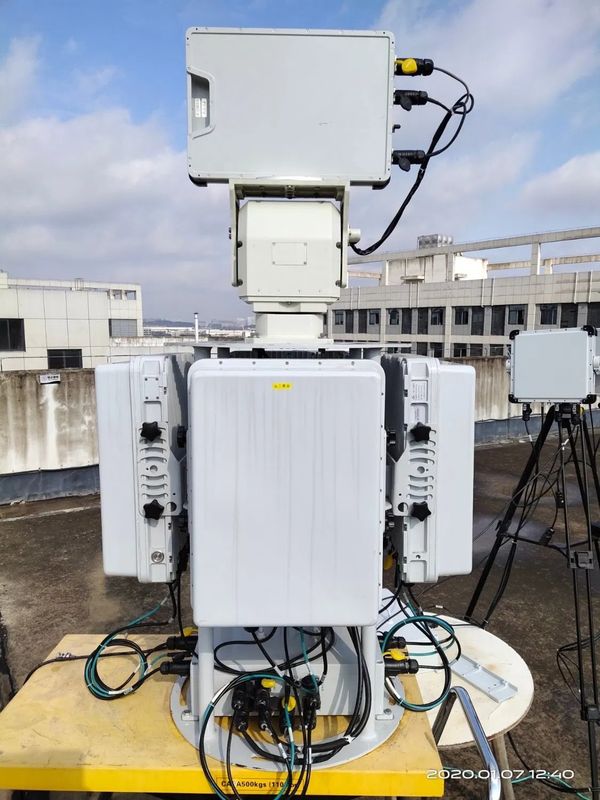

  • 360° azimuth + 40° elevation (3D height detection with four-panel phased array system)

• All-Weather Durability:

  • Waterproof, dustproof, sand-resistant, and corrosion-proof.

  • Operational in extreme temperatures: -40°C to +60°C

• Rapid Response:

  • High data rate (≤1.5s refresh) and detection speeds from 0.2 m/s to 25 m/s.

• Compact & Robust Design:

  • Lightweight (≤70 kg) with an aluminum alloy casing for rugged environments.

Technical Specifications

Applications

• Critical Infrastructure Protection: Airports, military bases, and border security.

• Specialized Surveillance: VIP zones, industrial sites, and event security.

• Drone Threat Mitigation: Detects and tracks unauthorized UAVs in restricted airspace.

Packaging & Compliance

• Transport Package: Aluminum alloy casing for shock resistance.

• Production Capacity: 10,000 units/year.

• Compliance: Weatherproof (IP67 equivalent), mold-proof, and salt-resistant.

Why Choose HYH 223-5C1K-3D?

• Future-Ready Technology: Phased array + Pulse Doppler system for enhanced detection.

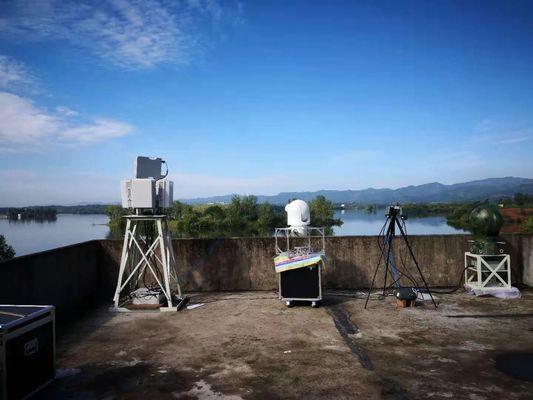

• Versatile Installation: Ground or vehicle-mounted deployment options.

• Global Standards: Engineered for reliability in the harshest environments.
