Military Digital Phased Array Radar Drone Detection Radar 1.2km Range All Weather
  • name
  • name
  • name
  • name
  • name

Military Digital Phased Array Radar Drone Detection Radar 1.2km Range All Weather

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C, T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Antenna Speed:
≤10rpm
Antenna Type:
Active Electronically Scanned Array (AESA)
Number Of Elements:
Up To 5000
Pitch Coverage:
0°-30°
Tracking Range:
Up To 400 Km
Size:
≤700*290*450(mm)
Tracking Mode:
TWS
Technical System:
DBF
Radar Wave Band:
Ku
Frequency Range:
UHF, L, S, C, X, Ku, K, Ka, V
Beam Steering:
Electronic
Radar System:
2D Active Phased Array
Transmit Power:
224W
Detection Range:
Up To 500 Km
Material:
Aluminum Copper
Minimum Detection Range:
10 M
Operating Frequency Band:
X Band
Range Resolution:
1-10 M
Scanning Range Pitch:
0°-40°
Antenna Diameter:
1-5 M
Blind Range:
180m
Scan Mode:
Sector Scan
Antenna Rotation:
360 Degrees
Scanning Range Azimuth:
360°
Operating Altitude:
0-10 Km
Receiver Sensitivity:
-120 DBm
Pulse Width:
1-10 μs
Transmitter Power:
1-10 KW
Pulse Repetition Frequency:
100-1000 Hz
Range:
Up To 100 Km
Highlight:

1.2km Range Digital Phased Array Radar

,

1.2km Range Drone Detection Radar

,

All Weather Digital Phased Array Radar

Product Description

Military-Grade 3D Drone Detection Radar (HYH 223-5C1K-3D) | C-Band, 1.2km Range, All-Weather



Overview

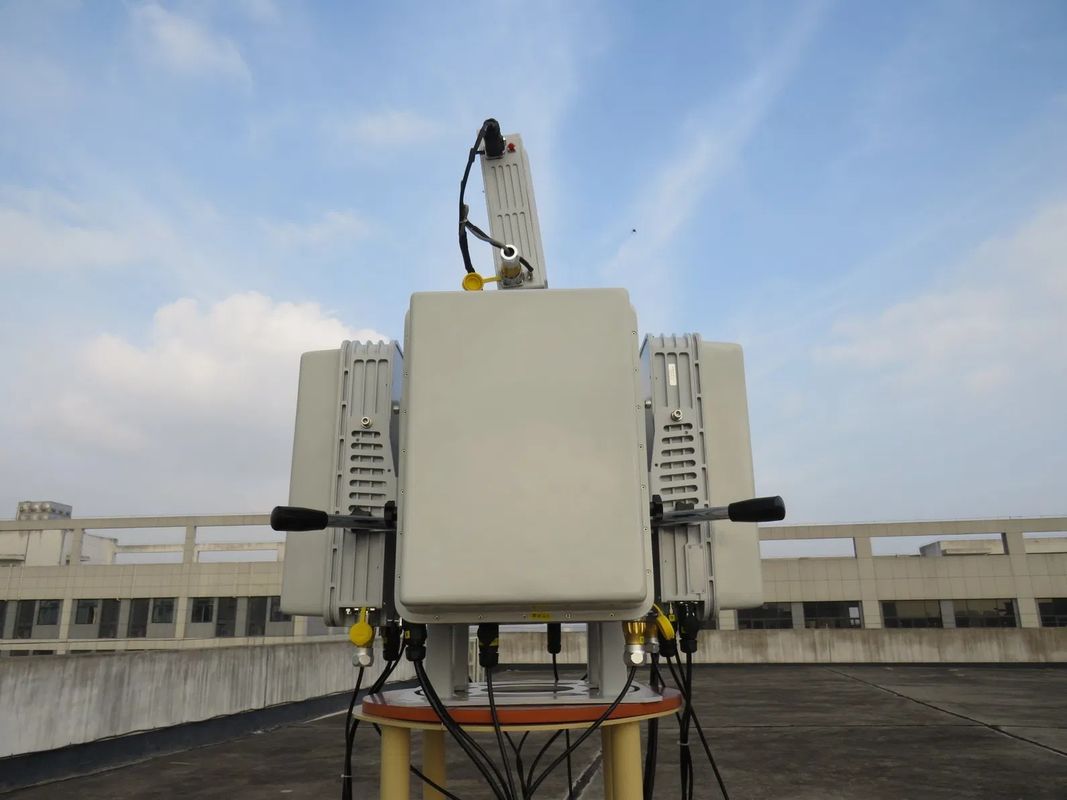

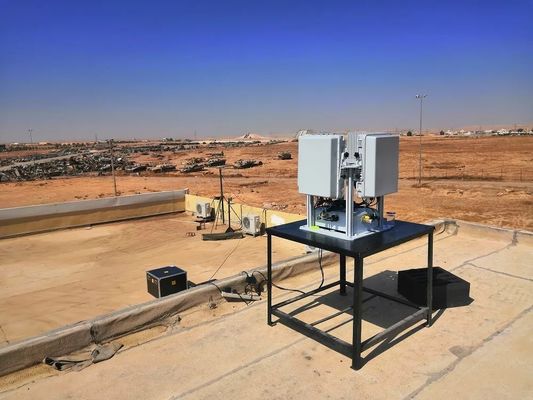

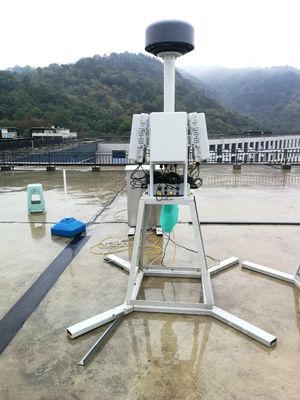

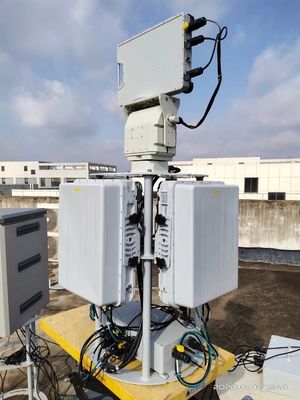

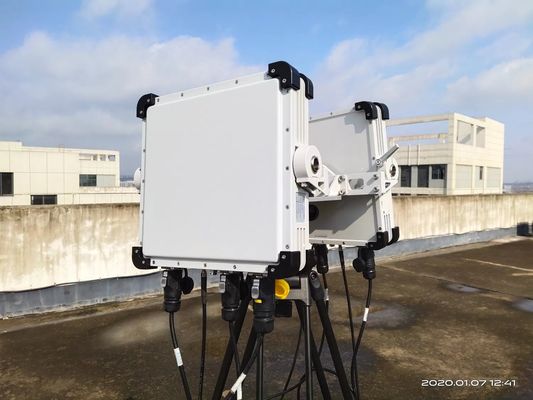

The HYH 223-5C1K-3D is an advanced phased array security surveillance radar designed for detecting and tracking low-altitude drones and UAVs. Built with cutting-edge MIMO (Multi-Input Multi-Output) technology, it delivers unparalleled accuracy and reliability for critical airspace monitoring. Ideal for 360° coverage and 3D height detection, this radar ensures robust performance in all weather conditions.

Key Features

  • High Precision:

    • Detection range: 1.2 km (DJI Phantom 3/4, Mavic series, RCS ≈0.01m²)

    • Distance accuracy: ≤10 m | Azimuth accuracy: ≤1.0° | Speed precision: ≤0.2 m/s

  • Wide Coverage:

    • 360° azimuth + 40° elevation (3D height detection with four-panel phased array system)

  • All-Weather Durability:

    • Waterproof, dustproof, sand-resistant, and corrosion-proof.

    • Operational in extreme temperatures: -40°C to +60°C

  • Rapid Response:

    • High data rate (≤1.5s refresh) and detection speeds from 0.2 m/s to 25 m/s.

  • Compact & Robust Design:

    • Lightweight (≤70 kg) with an aluminum alloy casing for rugged environments.

Technical Specifications

Parameter Details
Frequency Band C-Band (5.5–5.8 GHz)
Detection Range 1.2 km (drones), ≤100 m minimum range
Coverage 360° azimuth + 40° elevation (3D height detection)
Output Power 4W per panel (peak)
Power Supply AC220V / 250W
Data Interface Ethernet (UDP protocol)
Dimensions 2D: 725×725×735 mm 3D: 725×725×1400 mm
Certifications ISO-compliant

Applications

  • Critical Infrastructure Protection: Airports, military bases, and border security.

  • Specialized Surveillance: VIP zones, industrial sites, and event security.

  • Drone Threat Mitigation: Detects and tracks unauthorized UAVs in restricted airspace.

Packaging & Compliance

  • Transport Package: Aluminum alloy casing for shock resistance.

  • Production Capacity: 10,000 units/year.

  • Compliance: Weatherproof (IP67 equivalent), mold-proof, and salt-resistant.

Why Choose HYH 223-5C1K-3D?

  • Future-Ready Technology: Phased array + Pulse Doppler system for enhanced detection.

  • Versatile Installation: Ground or vehicle-mounted deployment options.

  • Global Standards: Engineered for reliability in the harshest environments.
