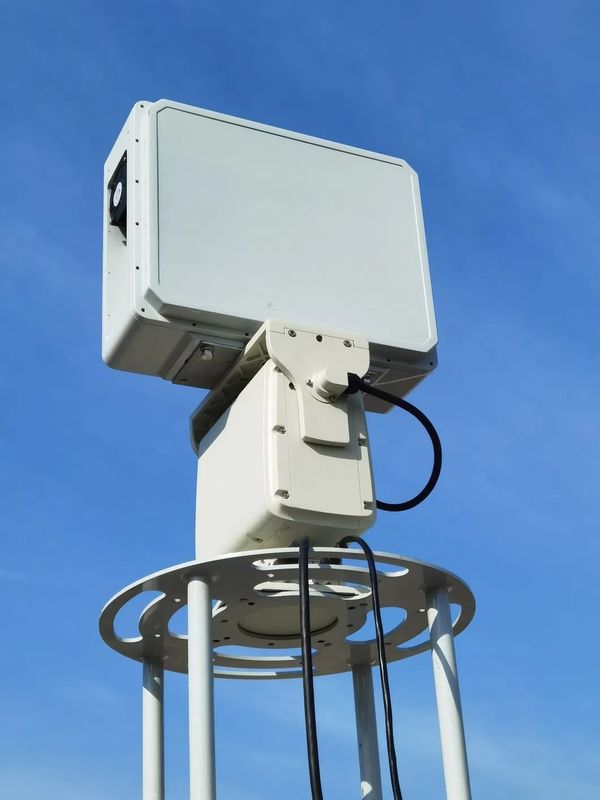

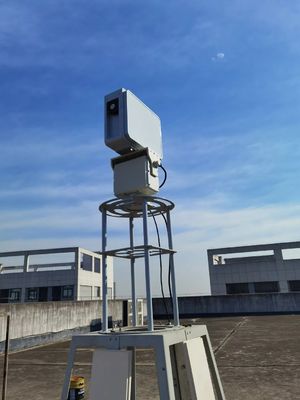

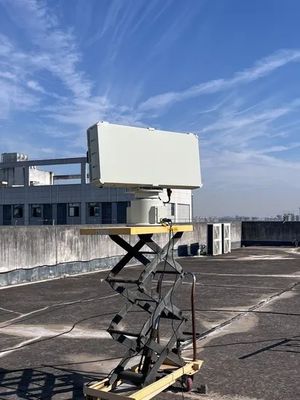

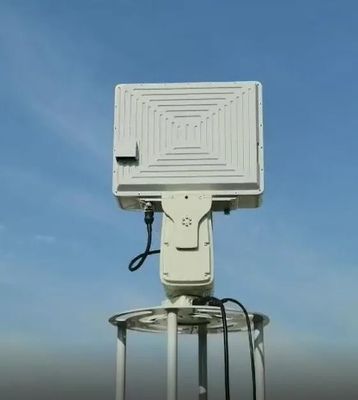

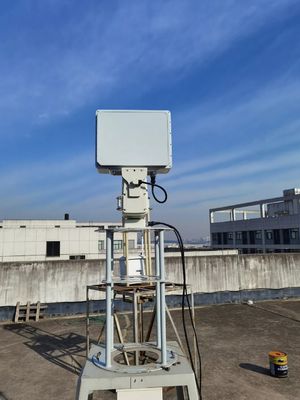

360° 3D Tracking Phased Array Radar 3.5km Drone Detection All Weather
  • name
  • name
  • name
  • name
  • name

360° 3D Tracking Phased Array Radar 3.5km Drone Detection All Weather

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C,T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Frequency Range:
2 GHz - 40 GHz
Data Processing:
Real-time
Beam Steering:
Digital Beamforming
Resolution:
Less Than 1 Meter
Pitch Coverage:
0°-30°
Transmit/Receive Modules:
Solid-state
Target Radial Velocity:
0.8m/s-20m/s
Scan Mode:
Electronic Scanning
Radar System:
2D Active Phased Array
Target Tracking Capability:
Multiple Targets
Blind Range:
240m
Installation:
Ground-based Or Mobile
Highlight:

360° Phased Array Radar

,

360° uav surveillance radar

,

3D Phased Array Radar

Product Description

Overview

The HYH 226X-1X3K-3D is a high-performance military surveillance radar engineered to detect, track, and neutralize micro/small UAV threats in critical zones. Combining X-Band frequency with Phased Array + Pulse Doppler technology, it delivers precise 3D tracking (azimuth, distance, altitude, speed) for drones up to 3.5km away. Designed for rugged mobility, it supports ground or vehicle-mounted deployment, making it ideal for securing prisons, military bases, borders, and high-profile events.

Key Features

  • Long-Range Detection:

    • 3.5km range (DJI Phantom, RCS≈0.01m²) | ≤150m minimum range.

  • 360° 3D Tracking:

    • Full azimuth coverage (0°–360°) + 40° elevation for comprehensive airspace monitoring.

  • Military-Grade Durability:

    • Operates in -40°C to +55°C | Rainproof, dustproof, sand-resistant, and corrosion-proof.

  • Precision Targeting:

    • Distance accuracy: ≤10m | Azimuth/Elevation accuracy: ≤1.0° | Speed precision: ≤0.2m/s.

  • Rapid Response:

    • High refresh rate (≥0.25 times/s) for real-time threat alerts.

Technical Specifications

Parameter Details
Frequency Band X-Band
Power Consumption ≤240W (AC220V-AC240V supply)
Data Interface RJ45 / 100 MB Ethernet (UDP protocol)
Dimensions 500×410×205 mm
Weight ≤50kg (compact and portable)
Package Rugged aluminum alloy casing

Applications

  • Military & Defense: Base protection, border surveillance, and drone threat mitigation.

  • Critical Infrastructure: Airports, prisons, government facilities, and VIP zones.

  • Event Security: Large-scale public gatherings, exhibitions, and high-risk venues.

Why Choose HYH 226X-1X3K-3D?

  • MIMO Technology: Multi-Input Multi-Output system enhances detection reliability.

  • All-Weather Ready: Built to withstand extreme environments, from deserts to arctic conditions.

  • Turntable Design: Radar array + turntable ensures seamless 360° scanning.

Compliance & Warranty

  • IP Rating: Dust, moisture, and salt-resistant for coastal/maritime use.

  • Storage Tolerance: -45°C to +65°C (non-operational).

  • 360° 3D Tracking Phased Array Radar 3.5km Drone Detection All Weather 0
  • 360° 3D Tracking Phased Array Radar 3.5km Drone Detection All Weather 1
Tags:

active array radar,

border security radar,

ground based air surveillance radar
