Customizable Backpack Drone Jammer Directional Antennas For Precision Targeting
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Customizable Backpack Drone Jammer Directional Antennas For Precision Targeting

MOQ: 1
Price: Negotiable
Delivery Period: 30days
Payment Method: T/T,D/P,Western Union
Supply Capacity: 50sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Model Number
DKSW-8D
Power Output:
30W
Jamming Range:
2 Kilometers
Power Supply:
Built-in Rechargeable Battery
Direction Of Defense:
Omnidirectional 360°
Interference Frequency:
433M 900M 1.2G 1.5G 2.4G 5.8G
Battery Life:
Up To 2 Hours
Cooling System:
Built-in Fan
Whole Machine Power:
300W~350W (can Be Customized)
Materials:
Waterproof And Shockproof Materials
Dimensions:
45cm X 30cm X 15cm
Antennas:
5 High-gain Directional Antennas
Operating Temperature:
-10°C To +50°C
Jamming Distance:
Up To 1km
Jamming Modes:
5 Modes (customizable)
Working Hours:
30 Mins (duration Of Launch)
Minimum Detection Range:
10 M
Operating Frequency Band:
X Band
Range Resolution:
1-10 M
Scanning Range Pitch:
0°-40°
Antenna Diameter:
1-5 M
Blind Range:
180m
Scan Mode:
Sector Scan
Antenna Rotation:
360 Degrees
Scanning Range Azimuth:
360°
Operating Altitude:
0-10 Km
Receiver Sensitivity:
-120 DBm
Pulse Width:
1-10 μs
Transmitter Power:
1-10 KW
Pulse Repetition Frequency:
100-1000 Hz
Range:
Up To 100 Km
Highlight:

Customizable Backpack Drone Jammer

,

Customizable rf frequency jammer

,

Precision Backpack Drone Jammer

Product Description

Customizable Drone Jammer | Omnidirectional + Directional Antennas for Precision Targeting



Product Overview

With the rapid growth of the drone market, drones are widely used in various aspects of society. However, their misuse, such as unauthorized flights in restricted zones, drug delivery, and military applications, has raised significant concerns. The DKSW-8D is designed to detect, deter, and force-land rogue drones within visual range. Custom-built to meet client needs, this backpack-style device features a built-in battery for extended portability and includes both omnidirectional and handheld directional antennas for versatile operation. Utilizing narrowband interference and RF suppression technologies, it disrupts the communication link between the drone and its controller, forcing the drone to return or land. Additionally, it blocks video transmission, preventing privacy breaches and securing critical areas.

Key Features

  1. Portable Backpack Design: Lightweight and easy to carry.

  2. Built-in Battery: Integrated power supply for unrestricted use.

  3. Single-Channel Control: Simplified operation with independent switches.

  4. Dual Antenna Modes: Omnidirectional and directional antennas for flexible deployment.

  5. Optimized Antenna Performance: Enhanced countermeasure range.

  6. Battery Display: Real-time power level monitoring.

  7. Optional External Battery: Extended runtime (additional cost).

Product Images

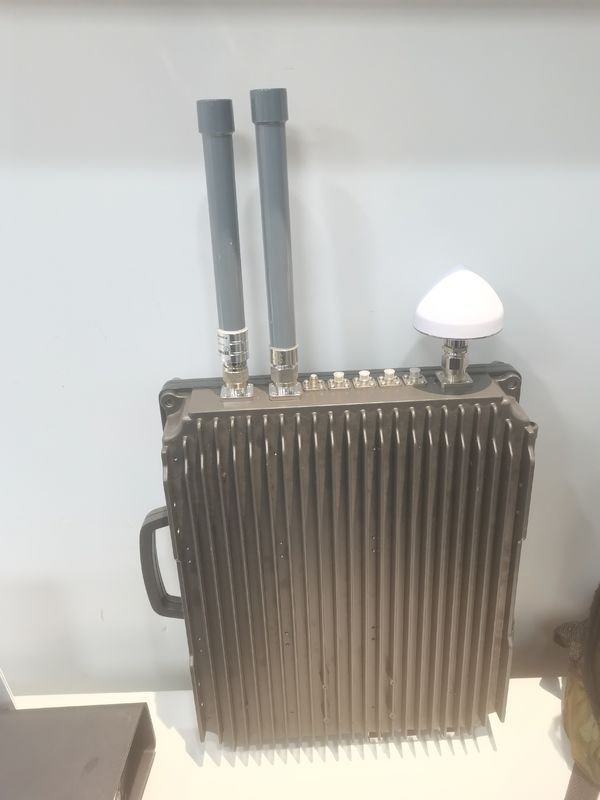

Customizable Backpack Drone Jammer Directional Antennas For Precision Targeting 0

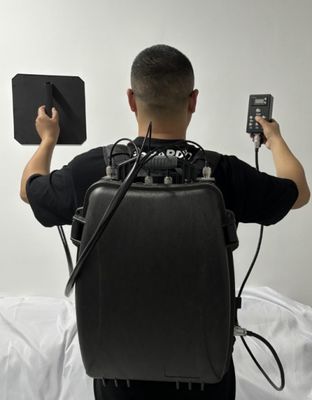

Customizable Backpack Drone Jammer Directional Antennas For Precision Targeting 1

Technical Specifications

Parameter Details

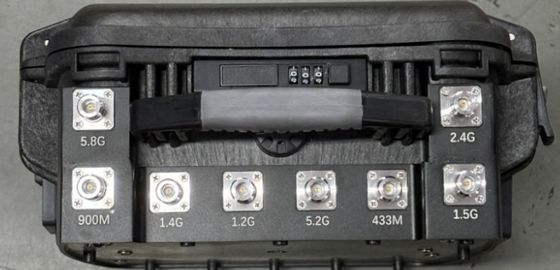

Output Frequency 433M: 428-438MHz, 900M: 860-930MHz, 1.2G: 1160-1280MHz, 1.4G: 1400-1450MHz,
  1.5G: 1550-1620MHz, 2.4G: 2400-2500MHz, 5.2G: 5150-5350MHz, 5.8G: 5725-5850MHz
Average Output Power 50W/47dbm
Channel Output Power 20dbm/30KHz (min)
Power Supply AC220V-DC5V
Battery Capacity 20A
Device Weight 15kg
Packaged Weight 35kg
Package Dimensions 75×45×42 cm

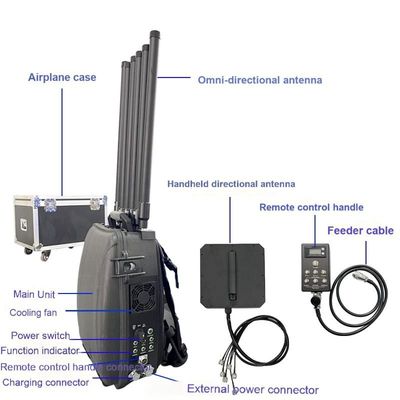

Customizable Backpack Drone Jammer Directional Antennas For Precision Targeting 2

Operation Instructions

  1. Inspect the device for damage and verify all accessories are included.

  2. Connect antennas to the corresponding ports and secure them tightly.

  3. Attach the control handle to the main unit.

  4. Check the battery level using the display.

  5. Press all function buttons; indicator lights will activate.

  6. For directional use, aim the antenna at the target drone.

  7. The device takes effect within 30 seconds, forcing the drone to land or return.

  8. After use, press the function buttons to turn off the indicators.

Package Contents

Item Quantity
Flight Case 1
Main Unit 1
Omnidirectional Antennas 8
Directional Antenna 1 (optional)
Control Handle 1
Connection Cable 1
Power Adapter 1

Warranty

1-year warranty for non-human-induced damages.

Why Choose DKSW-8D?

  • Portability: Backpack design for easy transport and deployment.

  • Versatility: Dual antenna modes for diverse operational needs.

  • Efficiency: Rapid response within 30 seconds.

  • Security: Blocks video transmission to protect privacy.

Tags:

rf jamming device,

manpack drone defender,

backpack signal jammer
