Backpack Mounted Rf Jamming Device 8 Antennas 50W Waterproof

Large Image : Backpack Mounted Rf Jamming Device 8 Antennas 50W Waterproof

Product Details:

Place of Origin:	Chengdu
Brand Name:	HYH
Model Number:	DKSW-8D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	30days
Payment Terms:	T/T,D/P,Western Union
Supply Ability:	50sets/Month

Contact Now

Detailed Product Description

Power Output:	30W	Jamming Range:	2 Kilometers
Power Supply:	Built-in Rechargeable Battery	Direction Of Defense:	Omnidirectional 360°
Interference Frequency:	433M 900M 1.2G 1.5G 2.4G 5.8G	Battery Life:	Up To 2 Hours
Cooling System:	Built-in Fan	Whole Machine Power:	300W~350W (can Be Customized)
Materials:	Waterproof And Shockproof Materials	Dimensions:	45cm X 30cm X 15cm
Antennas:	5 High-gain Directional Antennas	Operating Temperature:	-10°C To +50°C
Jamming Distance:	Up To 1km	Jamming Modes:	5 Modes (customizable)
Working Hours:	30 Mins (duration Of Launch)	Minimum Detection Range:	10 M
Operating Frequency Band:	X Band	Range Resolution:	1-10 M
Scanning Range Pitch:	0°-40°	Antenna Diameter:	1-5 M
Blind Range:	180m	Scan Mode:	Sector Scan
Antenna Rotation:	360 Degrees	Scanning Range Azimuth:	360°
Operating Altitude:	0-10 Km	Receiver Sensitivity:	-120 DBm
Pulse Width:	1-10 μs	Transmitter Power:	1-10 KW
Pulse Repetition Frequency:	100-1000 Hz	Range:	Up To 100 Km
Highlight:	Waterproof rf jamming device , Waterproof anti drone kit , Backpack Mounted rf jamming device

Backpack-Mounted UAV Defense | 8 Antennas & 50W/Channel Output for Maximum Range

Product Overview

With the rapid growth of the drone market, drones are widely used in various aspects of society. However, their misuse, such as unauthorized flights in restricted zones, drug delivery, and military applications, has raised significant concerns. The DKSW-8D is designed to detect, deter, and force-land rogue drones within visual range. Custom-built to meet client needs, this backpack-style device features a built-in battery for extended portability and includes both omnidirectional and handheld directional antennas for versatile operation. Utilizing narrowband interference and RF suppression technologies, it disrupts the communication link between the drone and its controller, forcing the drone to return or land. Additionally, it blocks video transmission, preventing privacy breaches and securing critical areas.

Key Features

Portable Backpack Design: Lightweight and easy to carry.
Built-in Battery: Integrated power supply for unrestricted use.
Single-Channel Control: Simplified operation with independent switches.
Dual Antenna Modes: Omnidirectional and directional antennas for flexible deployment.
Optimized Antenna Performance: Enhanced countermeasure range.
Battery Display: Real-time power level monitoring.
Optional External Battery: Extended runtime (additional cost).

Product Images

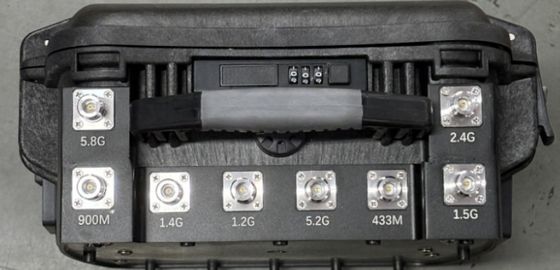

Backpack Mounted Rf Jamming Device 8 Antennas 50W Waterproof 0

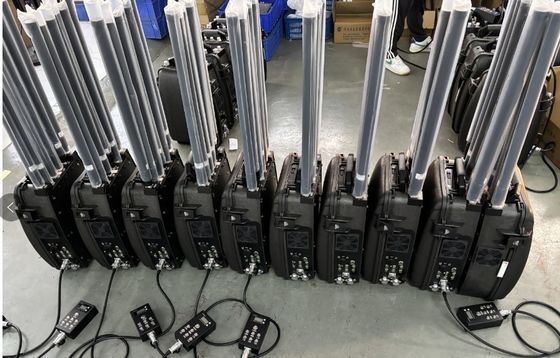

Backpack Mounted Rf Jamming Device 8 Antennas 50W Waterproof 1

Technical Specifications

Parameter	Details
Output Frequency	433M: 428-438MHz, 900M: 860-930MHz, 1.2G: 1160-1280MHz, 1.4G: 1400-1450MHz,
	1.5G: 1550-1620MHz, 2.4G: 2400-2500MHz, 5.2G: 5150-5350MHz, 5.8G: 5725-5850MHz
Average Output Power	50W/47dbm
Channel Output Power	20dbm/30KHz (min)
Power Supply	AC220V-DC5V
Battery Capacity	20A
Device Weight	15kg
Packaged Weight	35kg
Package Dimensions	75×45×42 cm

Operation Instructions

Inspect the device for damage and verify all accessories are included.
Connect antennas to the corresponding ports and secure them tightly.
Attach the control handle to the main unit.
Check the battery level using the display.
Press all function buttons; indicator lights will activate.
For directional use, aim the antenna at the target drone.
The device takes effect within 30 seconds, forcing the drone to land or return.
After use, press the function buttons to turn off the indicators.

Package Contents

Item	Quantity
Flight Case	1
Main Unit	1
Omnidirectional Antennas	8
Directional Antenna	1 (optional)
Control Handle	1
Connection Cable	1
Power Adapter	1

Warranty

1-year warranty for non-human-induced damages.

Why Choose DKSW-8D?

Portability: Backpack design for easy transport and deployment.
Versatility: Dual antenna modes for diverse operational needs.
Efficiency: Rapid response within 30 seconds.
Security: Blocks video transmission to protect privacy.
