Advanced Professional UAS Detection System For Interference Target Integration

Products

Navigation Deception Equipment

Advanced Professional UAS Detection System For Interference Target Integration

MOQ:	1
Price:	Negotiable
Delivery Period:	15days
Payment Method:	,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Advanced UAS Detection System

Advanced uav detection systems

Professional UAS Detection System

Product Description

XHMN-HHTS-SCXKU Advanced and Professional Radar Signal Simulation for Interference and Target Integration

Product Description

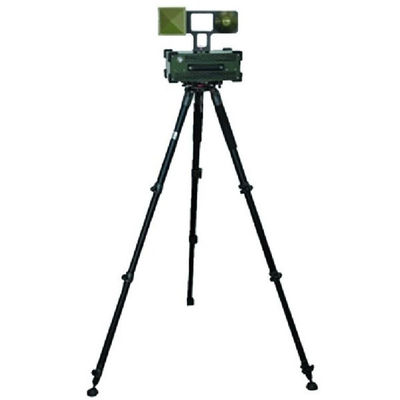

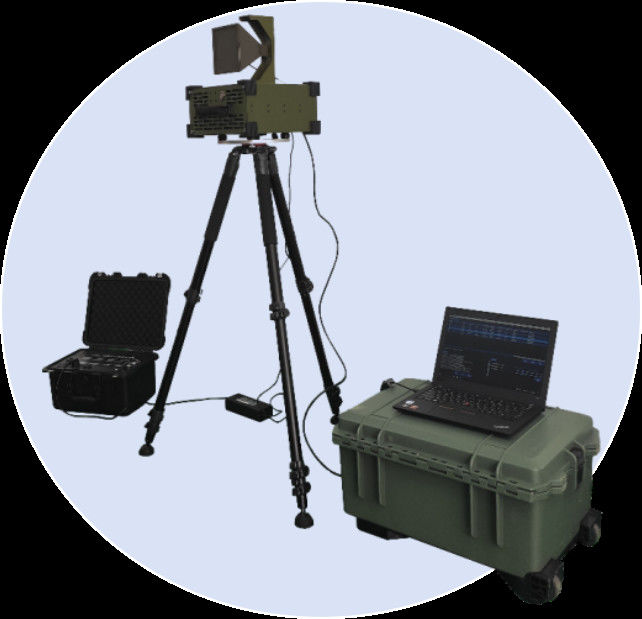

Interference and Target Integration Simulator

Product Introduction:

The interference and target integration simulator is based on digital radio frequency memory (DRFM), digital jamming synthesis (DJS) and other technologies, and can simulate radar interference scenarios such as long-range support interference, team support interference, self-defense interference, etc. It can flexibly generate interference signals of noise suppression, coherent suppression, deception and other styles, as well as high-precision radar target echo signals. The signal parameters are flexible and controllable, which can create a realistic interference and target environment for air defense early warning radars within the working frequency band. It is suitable for radar interference and anti-interference performance testing, tactical technology training and other application scenarios, and meets the needs of users such as troops, bases, firing ranges, and research institutes.

Product Features:

1, Based on mainstream technology realization, strong signal simulation ability, good effect of actual installation confrontation test.
2, Portable design, small equipment size, easy transportation and use.
3, Strong multi-platform adaptability, meet the needs of ground, vehicle, UAV and other multiple use.

Parameter Name	Parameter Value
Operating Frequency	2GHz-18GHz
Instantaneous Operating Bandwidth	400MHz,1000MHz
Interference Transmit Performance	Transmit Power ≥5W Continuous Wave
Interference Transmit Performance	Transmit Power (Single Channel): ≥ 10W Continuous Wave
Reconnaissance Reception Performance	Receiver Sensitivity:≤-60dBm
Interference Simulation Performance	Noise suppression interference, coherent suppression interference, deception interference, combination interference
Target Simulation Performance	Quantity: 1-8 batches, can be Planned
	RCS: Range 0.01m2-100m2
	Distance: Range 10km-500km
	Speed: range ±1000m/s,Accuracy≤1m/s
Environmental Adaptability	Storage Temperature:-40℃-+65℃
Environmental Adaptability	Operating Temperature: -20℃-+50℃
Power Supply Method	AC220V
Weight	≤10kg(Includes Main Unit and Antenna)
