Long Range Radar Target Simulation Rf Drone Detection UAV Vehicle Mounting

Large Image : Long Range Radar Target Simulation Rf Drone Detection UAV Vehicle Mounting

Product Details:

Place of Origin:	Chengdu
Brand Name:	HYH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	30days
Payment Terms:	T/T,Western Union,MoneyGram,D/P
Supply Ability:	10set/month

Contact Now

Detailed Product Description

Type:	Simulation Equipment	Control Interface:	Graphical User Interface (GUI)
Simulated Environment:	Air, Sea, Land, Space	Frequency Range:	1 MHz - 40 GHz
Simulated Targets:	Aircraft, Ships, Ground Vehicles, Missiles	Connectivity:	Ethernet, USB, RS-232
Modulation Types:	AM, FM, PM, Pulse, Chirp	Power Supply:	AC 100-240V, 50/60Hz
Operating Temperature:	0°C To 50°C	Power Output:	Up To 1000 Watts
Weight:	22.5 Lbs	Pulse Repetition Frequency:	100-1000 Hz
Spurious Signals:	-70 DBc	Output Power:	20 DBm
Harmonic Distortion:	-60 DBc	Model:	E8740A
Dimensions:	17.5 X 5.2 X 18.5 In	Phase Noise:	-110 DBc/Hz At 10 KHz Offset
Modulation:	AM, FM, PM, Pulse, Chirp	Pulse Width:	1-10 μs
Minimum Detection Range:	10 M	Operating Frequency Band:	X Band
Range Resolution:	1-10 M	Scanning Range Pitch:	0°-40°
Antenna Diameter:	1-5 M	Blind Range:	180m
Scan Mode:	Sector Scan	Antenna Rotation:	360 Degrees
Scanning Range Azimuth:	360°	Operating Altitude:	0-10 Km
Receiver Sensitivity:	-120 DBm	Transmitter Power:	1-10 KW
Range:	Up To 100 Km
Highlight:	Long Range Radar Target Simulation , Long Range Rf Drone Detection , Vehicle Mounting Radar Target Simulation

Portable Radar Jammer: 20W High-Power Output, UAV/Vehicle Mounting, Tactical Defense Ready

Functional Overview

The LD-RJT020060 Portable Radar Countermeasure Simulator operates within a 2–6 GHz frequency range and simulates diverse radar countermeasure scenarios, including long-range support jamming, escort jamming, and self-defense modes. It generates flexible jamming signals (noise suppression, coherent suppression, deception) and high-precision target echo signals, creating realistic electromagnetic environments for radar performance testing and tactical training.

Key Specifications

Category	Details
Frequency Range	2–6 GHz (customizable for other bands)
Instantaneous Bandwidth	1000 MHz
Antenna Performance	Dual-polarized horn antenna (45° slant polarization, 6–10 dBi gain range)
Compatible Radar Types	Pulse, pulse compression, frequency-agile, MTI, MTD/PD
Receiver Performance	- Sensitivity: ≤-55 dBm - Dynamic Range: ≥40 dB - Gain Control: 30 dB range, 1 dB step
Transmitter Performance	- Output Power: ≥20 W (continuous wave, customizable) - Clutter Suppression: ≥40 dBc
Jamming Modes	Noise (spot, barrage, swept), Coherent (false targets, Doppler noise)
Target Simulation	- RCS: 0.01–100 m² (Swerling 0–4 models) - Range: 10–500 km (±10 m accuracy) - Speed: ±1000 m/s (±1 m/s accuracy)
Environmental	- Storage: -40°C to +65°C - Operation: -20°C to +50°C
Power & Control	- AC 220V or mobile power (≥6 hours runtime) - Ethernet/wireless remote control
Portability	Total weight ≤10 kg (including antennas)

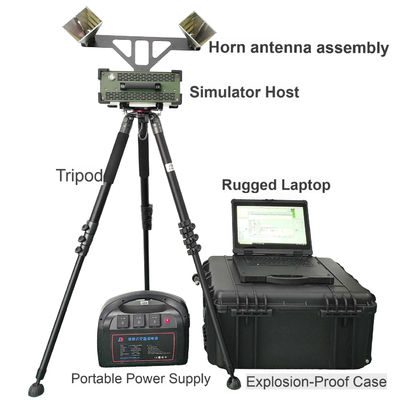

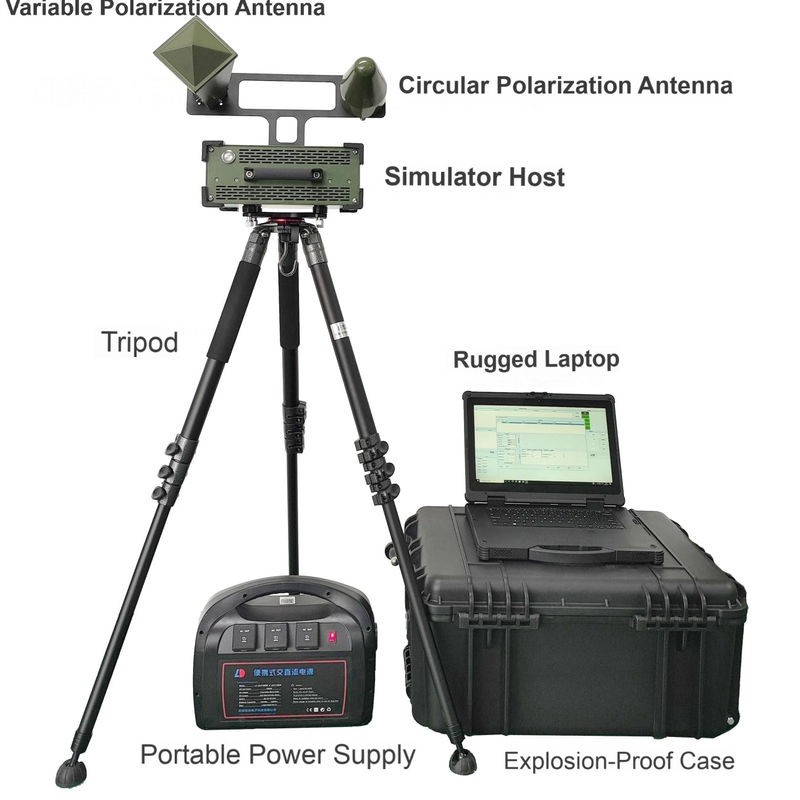

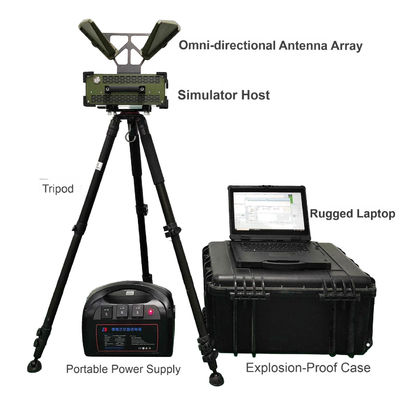

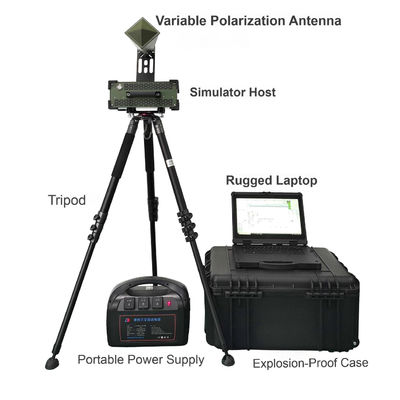

Configuration List

No.	Item	Qty.	Config.	Remarks
1	Simulator Main Unit	1 set	Standard	2–6 GHz frequency band
2	Antenna Assembly	1 set	Standard	Includes mounting brackets
3	Rugged Laptop	1 set	Standard	—
4	Mobile AC Power Supply	1 set	Standard	1000W rated power
5	Tripod	1 set	Standard	Height ≥1.5 meters
6	System Cables	1 set	Standard	RF, power, and Ethernet cables
7	Documentation Kit	1 set	Standard	Includes CD
8	Explosion-Proof Case	1 set	Standard	—
9	Carbon Fiber Lift Pole	1 set	Optional	Height ≥5 meters
10	Multi-Rotor UAV	1 set	Optional	Payload capacity ≥10 kg

Design & Applications

Ultra-Lightweight: Total weight ≤10 kg for rapid deployment in field operations.
Multi-Platform Compatibility: Supports ground-based elevation (tripod/lift pole), vehicle mounting, and UAV payload integration.
Extreme Environment Ready: Operates reliably in temperatures from -20°C to +50°C.

Visuals

{width="5.885in" height="5.885in"}
Compact design and interface layout

Key Advantages

✅ Broad Frequency Coverage: Customizable bands (2–6 GHz) for advanced radar systems.
✅ High-Power Output: 20W continuous wave jamming power for superior suppression.
✅ Military-Grade Durability: Explosion-proof packaging and ruggedized components.
