Lightweight Drone Detection System AM FM PM 20dBm With Wireless Remote Control

Products

Navigation Deception Equipment

Lightweight Drone Detection System AM FM PM 20dBm With Wireless Remote Control

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	T/T,Western Union,MoneyGram,D/P
Supply Capacity:	10set/month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Type:

Simulation Equipment

Control Interface:

Graphical User Interface (GUI)

Simulated Environment:

Air, Sea, Land, Space

Frequency Range:

1 MHz - 40 GHz

Simulated Targets:

Aircraft, Ships, Ground Vehicles, Missiles

Connectivity:

Ethernet, USB, RS-232

Modulation Types:

AM, FM, PM, Pulse, Chirp

Power Supply:

AC 100-240V, 50/60Hz

Operating Temperature:

0°C To 50°C

Power Output:

Up To 1000 Watts

Weight:

22.5 Lbs

Pulse Repetition Frequency:

100-1000 Hz

Spurious Signals:

-70 DBc

Output Power:

20 DBm

Harmonic Distortion:

-60 DBc

Model:

E8740A

Dimensions:

17.5 X 5.2 X 18.5 In

Phase Noise:

-110 DBc/Hz At 10 KHz Offset

Modulation:

AM, FM, PM, Pulse, Chirp

Pulse Width:

1-10 μs

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Transmitter Power:

1-10 KW

Range:

Up To 100 Km

Highlight:

Lightweight Drone Detection System

Lightweight rf drone detection

20dBm Drone Detection System

Product Description

LD-RJT008040 Portable Radar Jammer | 0.8-4GHz DRFM Simulator, Lightweight & UAV-Ready for Military Defense

Functional Overview

The LD-RJT008040 Portable Radar Countermeasure Simulator operates within a frequency range of 0.8–4 GHz and simulates diverse radar countermeasure scenarios, including long-range support, escort jamming, and self-defense modes. It generates flexible jamming signals (noise suppression, coherent suppression, deception) and high-precision target echo signals, enabling realistic electromagnetic environments for radar performance testing and tactical training.

Key Specifications

Category	Details
Frequency Range	0.8–4 GHz (customizable for other bands)
Instantaneous Bandwidth	400 MHz
Antenna Performance	Log-periodic antenna (45° slant polarization, 7 dBi gain)
Compatible Radar Types	Pulse, pulse compression, frequency-agile, MTI, MTD/PD
Receiver Performance	- Sensitivity: ≤-55 dBm - Dynamic Range: ≥40 dB - Gain Control: 30 dB range, 1 dB step
Transmitter Performance	- Output Power: ≥10 W (continuous wave, customizable) - Clutter Suppression: ≥40 dBc
Jamming Modes	Noise (spot, barrage, swept), Coherent (false targets, Doppler noise)
Target Simulation	- RCS: 0.01–100 m² (Swerling 0–4 models) - Range: 10–500 km (±10 m accuracy) - Speed: ±1000 m/s (±1 m/s accuracy)
Environmental	- Storage: -40°C to +65°C - Operation: -20°C to +50°C
Power & Control	- AC 220V or mobile power (≥6 hours runtime) - Ethernet/wireless remote control
Portability	Total weight ≤10 kg (including antennas)

Configuration List

No.	Item	Qty.	Config.	Remarks
1	Simulator Main Unit	1 set	Standard	0.8–4 GHz frequency band
2	Antenna Assembly	1 set	Standard	Includes mounting brackets
3	Rugged Laptop	1 set	Standard	—
4	Mobile AC Power Supply	1 set	Standard	1000W rated power
5	Tripod	1 set	Standard	Height ≥1.5 meters
6	System Cables	1 set	Standard	RF, power, and Ethernet cables
7	Documentation Kit	1 set	Standard	Includes CD
8	Explosion-Proof Case	1 set	Standard	—
9	Carbon Fiber Lift Pole	1 set	Optional	Height ≥5 meters
10	Multi-Rotor UAV	1 set	Optional	Payload capacity ≥10 kg

Design & Applications

Ultra-Lightweight: Total weight ≤10 kg for rapid deployment in field operations.
Multi-Platform Compatibility: Supports ground-based setups (tripod/lift pole), vehicle mounting, and UAV integration.
Extreme Environment Ready: Operates reliably in temperatures from -20°C to +50°C.

Visuals

{width="5.885in" height="5.885in"}

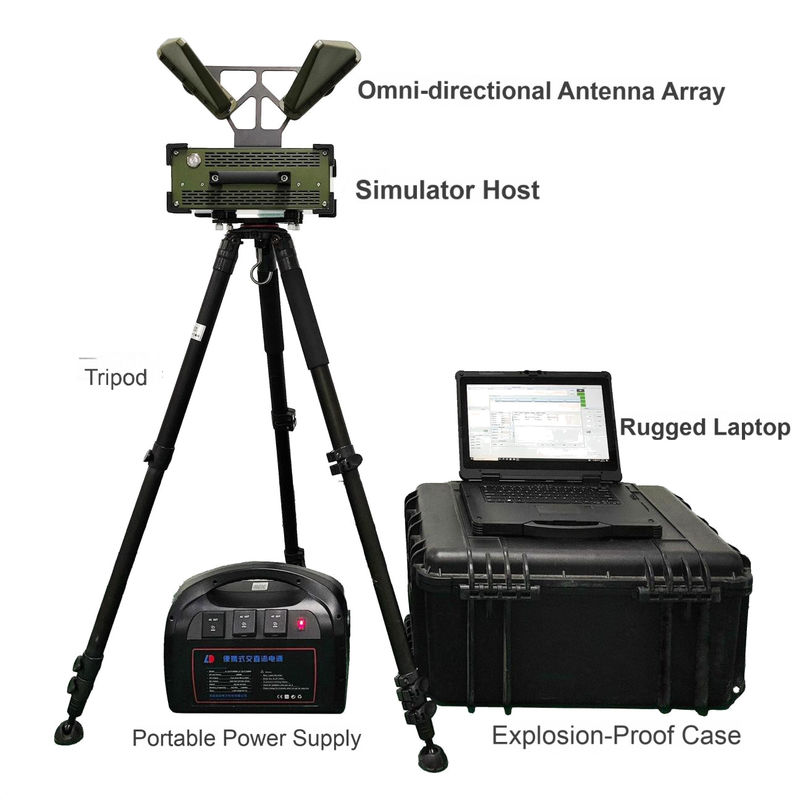

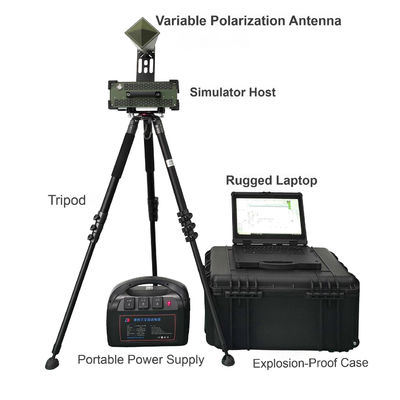

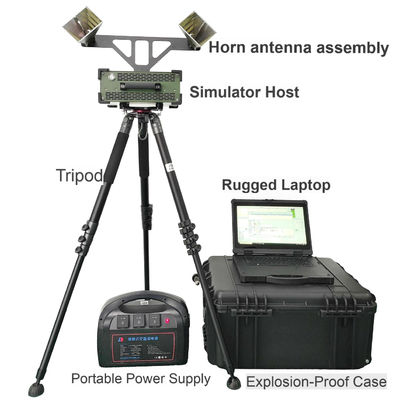

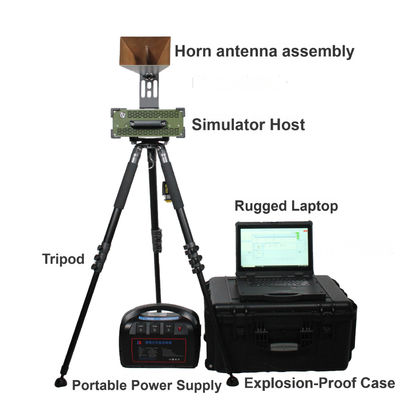

Compact design and interface layout

Key Advantages

✅ Broad Frequency Coverage: Customizable bands (0.8–4 GHz) for diverse radar systems.
✅ High Precision: ±1 m/s speed accuracy and ≤10 m range resolution.
✅ Military-Grade Durability: Explosion-proof packaging and ruggedized components.
