Accurate Integrated Radar Target Simulator Drone Detection Equipment

Products

Navigation Deception Equipment

Accurate Integrated Radar Target Simulator Drone Detection Equipment

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	T/T,Western Union,MoneyGram,D/P
Supply Capacity:	10set/month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Type:

Simulation Equipment

Control Interface:

Graphical User Interface (GUI)

Simulated Environment:

Air, Sea, Land, Space

Frequency Range:

1 MHz - 40 GHz

Simulated Targets:

Aircraft, Ships, Ground Vehicles, Missiles

Connectivity:

Ethernet, USB, RS-232

Modulation Types:

AM, FM, PM, Pulse, Chirp

Power Supply:

AC 100-240V, 50/60Hz

Operating Temperature:

0°C To 50°C

Power Output:

Up To 1000 Watts

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Accurate Radar Target Simulator

Integrated Radar Target Simulator

Integrated Drone Detection Equipment

Product Description

Falcon100-B L-band Integrated Detection System | 500km Range, High-Precision Military Reconnaissance & Multi-Station Networking
Product Overview

The Falcon100-B is a combat-ready L-band integrated detection device designed for practical operations. It enables full-time, all-domain reconnaissance, interception, high-precision direction finding, and accurate identification of line-of-sight targets. The system supports signal types including NATO Identification Friend or Foe (IFF), JTIDS (Link16), TACAN, and DME. A single unit can independently execute reconnaissance and direction-finding missions, while multiple units can form a networked collaborative positioning system to effectively address the challenge of tracking low-altitude penetrating targets.

Technical Features

Compact size, lightweight, low power consumption, and ease of transport and deployment;
Long operational range (over 500 km) and high direction-finding accuracy (better than 1.5° RMS);
Extremely high sensitivity for detecting specialized signals with real-time demodulation capabilities;
Flexible deployment: standalone reconnaissance/direction-finding or multi-station collaborative positioning.

Performance Specifications

Capable of reconnaissance, demodulation, decoding, direction finding, and storage of IFF signals;
Ability to identify target attributes using IFF plaintext information;
Dedicated channel processing and real-time demodulation for IFF Mode 5 signals;
Supports classified IFF data interception with customizable data interfaces;
Continuous reconnaissance, direction finding, and storage of JTIDS (Link16) signals;
Continuous reconnaissance, direction finding, and storage of TACAN and DME signals;
Reserved high-precision time-space annotation interfaces for time-difference positioning networks;
Number of detection channels: 6;
Frequency range: 1018 MHz ~ 1102 MHz;
Detection coverage: 360° instantaneous horizontal omnidirectional;
Detection range: 500 km (reconnaissance), 400 km (direction finding);
Instantaneous dynamic range: 50 dBm (IFF signals), 40 dBm (other signals);
Direction-finding accuracy: Better than 1° (RMS, standard conditions);
Maximum detectable targets: ≥200.

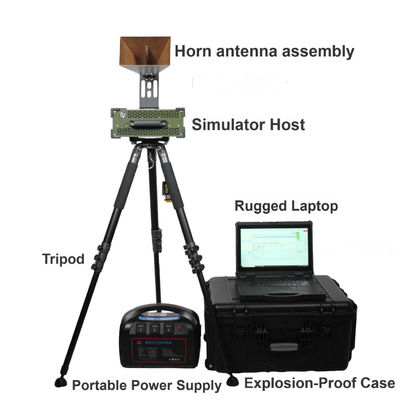

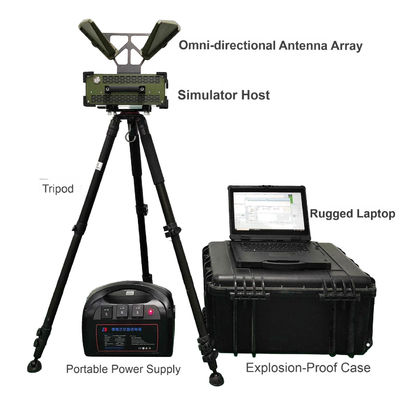

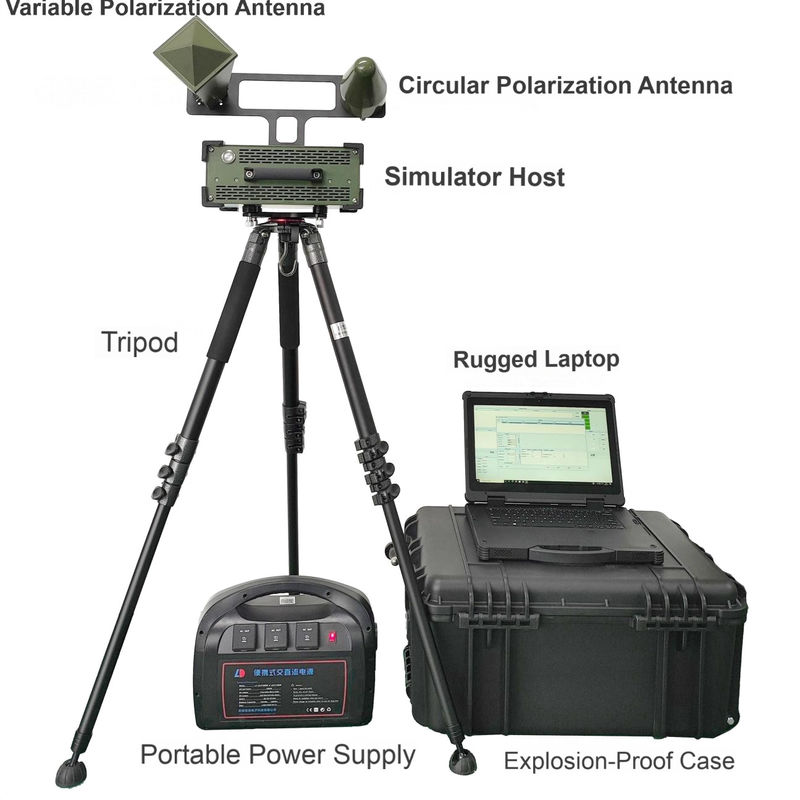

Configuration List

No. Item Qty. Config. Remarks

1        Main Unit                1 set      Standard       L-band configuration

2        Rugged Laptop            1 set      Standard

3        AC Mobile Power Supply   1 set      Standard      Rated power: 1000W

4        Tripod                   1 set      Standard      Height ≥1.5 meters

5        System Cables            1 set      Standard      Ethernet/power cables

6        Documentation Kit        1 set      Standard      Includes CD

7        Explosion-Proof Case     1 set      Standard
