Ultra Wideband Radar Signal Simulator 20W High Power Output For Electronic Warfare

Products

Navigation Deception Equipment

Ultra Wideband Radar Signal Simulator 20W High Power Output For Electronic Warfare

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	T/T,Western Union,MoneyGram,D/P
Supply Capacity:	10set/month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Type:

Simulation Equipment

Simulated Targets:

Aircraft, Missiles, Ships, Ground Vehicles

Power Output:

Up To 1000 Watts

Simulated Environment:

Air, Sea, Land

Pulse Repetition Frequency:

100-1000 Hz

Operating Temperature:

0°C - 50°C

Control Interface:

Ethernet, RS-232, GPIB

Modulation:

AM, FM, Pulse, Chirp

Signal Generation Modes:

Single, Dual, And Multichannel

Frequency Range:

1 MHz - 40 GHz

Pulse Width:

1-10 μs

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Transmitter Power:

1-10 KW

Range:

Up To 100 Km

Highlight:

Ultra Wideband Radar Signal Simulator

20W Radar Signal Simulator

20W uav detection systems

Product Description

Ultra-Wideband Radar Jammer: 20W High-Power Output, 10kg Lightweight Design for Electronic Warfare

Functional Overview

The LD-RJT020180 Portable Radar Countermeasure Simulator leverages Digital Radio Frequency Memory (DRFM) and Digital Jamming Synthesis (DJS) technologies to simulate radar countermeasure scenarios such as long-range support jamming, escort jamming, and self-defense modes. It generates flexible jamming signals (noise suppression, coherent suppression, deception) and high-precision radar target echoes, creating realistic electromagnetic environments for air defense radar testing and tactical training. Ideal for military units, testing bases, and research institutes.

Key Specifications

Category	Details
Frequency Range	2–18 GHz (customizable for other bands)
Instantaneous Bandwidth	1000 MHz
Reconnaissance Receiver	- Sensitivity: ≤-65 dBm - Dynamic Range: ≥40 dB - Gain Control: 30 dB range, 1 dB step
Jamming Transmitter	- Effective Radiated Power: ≥20 W - Clutter Suppression: ≥40 dBc - Harmonic Suppression: ≥15 dBc
Jamming Modes	Noise (spot, barrage, swept), Coherent (false targets, Doppler noise)
Target Simulation	- RCS: Swerling 0–4 models - Range: 10–500 km (±10 m accuracy) - Speed: ±1000 m/s (±1 m/s accuracy)
Environmental	- Storage: -45°C to +65°C - Operation: -30°C to +50°C
Power & Control	- AC 220V or mobile power (≥8 hours runtime) - Ethernet/wireless remote control
Portability	Total weight ≤10 kg (including antennas)

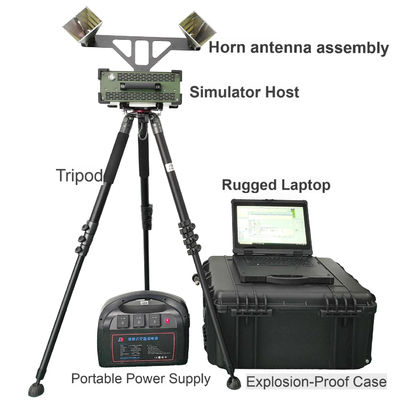

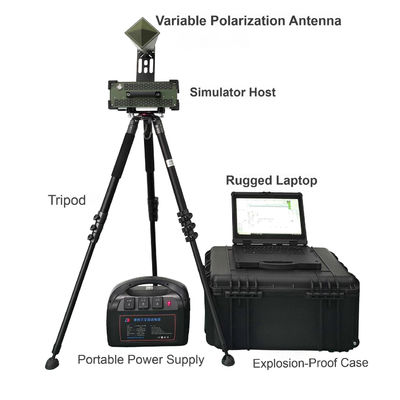

Configuration List

No.	Item	Qty.	Config.	Remarks
1	Simulator Main Unit	1 set	Standard	2–18 GHz frequency band
2	Antenna Assembly	1 set	Standard	Includes mounting brackets
3	Rugged Laptop	1 set	Standard	—
4	Mobile AC Power Supply	1 set	Standard	1000W rated power
5	Tripod	1 set	Standard	Height ≥1.5 meters
6	System Cables	1 set	Standard	RF, power, and Ethernet cables
7	Documentation Kit	1 set	Standard	Includes CD
8	Explosion-Proof Case	1 set	Standard	—
9	Carbon Fiber Lift Pole	1 set	Optional	Height ≥5 meters
10	Multi-Rotor UAV	1 set	Optional	Payload capacity ≥10 kg

Design & Applications

Ultra-Lightweight: Total weight ≤10 kg for rapid field deployment.
Multi-Platform Compatibility: Supports ground elevation (tripod/lift pole), vehicle mounting, and UAV payload integration.
Extreme Environment Resilience: Operates reliably in temperatures from -30°C to +50°C.

Key Advantages

✅ Broad Frequency Coverage: Customizable bands (2–18 GHz) for advanced radar systems.
✅ High-Power Output: 20W effective radiated power for superior jamming performance.
✅ Military-Grade Durability: Explosion-proof packaging and ruggedized components.
