Multichannel Radar Signal Simulator For Air Sea Land Environment

Large Image : Multichannel Radar Signal Simulator For Air Sea Land Environment

Product Details:

Place of Origin:	Chengdu
Brand Name:	HYH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	30days
Payment Terms:	T/T,Western Union,MoneyGram,D/P
Supply Ability:	10set/month

Contact Now

Detailed Product Description

Type:	Simulation Equipment	Simulated Targets:	Aircraft, Missiles, Ships, Ground Vehicles
Power Output:	Up To 1000 Watts	Simulated Environment:	Air, Sea, Land
Pulse Repetition Frequency:	100-1000 Hz	Operating Temperature:	0°C - 50°C
Control Interface:	Ethernet, RS-232, GPIB	Modulation:	AM, FM, Pulse, Chirp
Signal Generation Modes:	Single, Dual, And Multichannel	Frequency Range:	1 MHz - 40 GHz
Pulse Width:	1-10 μs	Minimum Detection Range:	10 M
Operating Frequency Band:	X Band	Range Resolution:	1-10 M
Scanning Range Pitch:	0°-40°	Antenna Diameter:	1-5 M
Blind Range:	180m	Scan Mode:	Sector Scan
Antenna Rotation:	360 Degrees	Scanning Range Azimuth:	360°
Operating Altitude:	0-10 Km	Receiver Sensitivity:	-120 DBm
Transmitter Power:	1-10 KW	Range:	Up To 100 Km
Highlight:	Multichannel Radar Signal Simulator , Multichannel drone radar system , Radar Signal Simulator For Air

Multi Signal Radar Simulator: 16 Simultaneous Outputs, Phase Coding & Extreme Temperature Resilience

Functional Overview

The LD-RS060180 Portable Radar Signal Simulator operates across a 6–18 GHz frequency range, capable of generating multiple radar signals (including complex modulated signals) and simulating radar antenna patterns and scanning characteristics. It creates realistic, combat-ready electromagnetic environments for radar reconnaissance/jamming equipment testing, performance validation, and tactical training. Ideal for military units, testing bases, and research institutes.

Key Features

Advanced Signal Simulation: Utilizes mainstream technologies for high-fidelity signal generation and real-world testing effectiveness.
Portable & Lightweight: Compact design (≤10 kg total weight) for easy transport and rapid deployment.
Multi-Platform Compatibility: Supports ground elevation, vehicle mounting, and UAV payload integration.

Performance Specifications

Category	Details
Frequency Range	6–18 GHz (customizable)
Instantaneous Bandwidth	1000 MHz
Frequency Accuracy	≤10⁻⁶ × center frequency
Radar Signal Types	- Continuous wave - Pulse (conventional, frequency-agile, diversity) - LFM (up to 40 MHz/μs) - Phase-coded (2/4/8 phases)
PRI Range & Accuracy	- Range: 3 µs–50,000 µs - Accuracy: ≤(0.05 + 10⁻³×PRI) µs
PW Range & Accuracy	- Range: 0.1 µs–5000 µs - Accuracy: ≤(0.05 + 10⁻³×PW) µs
Output Power	- Linear output: ≥1 W (CW) - Power control: 30 dB range, 1 dB step
Signal Capacity	Up to 16 simultaneous signals in 1000 MHz bandwidth
Environmental	- Storage: -40°C to +65°C - Operation: -20°C to +50°C
Power & Control	- AC 220V or mobile power (≥6 hours runtime) - Ethernet/wireless remote control
Portability	Total weight ≤10 kg (including antennas)

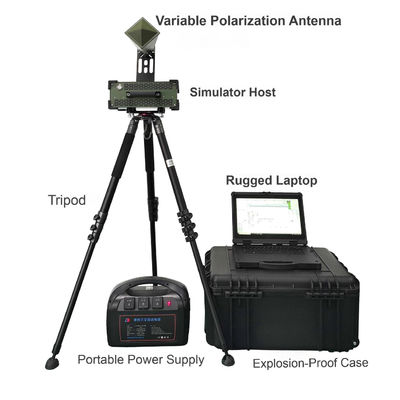

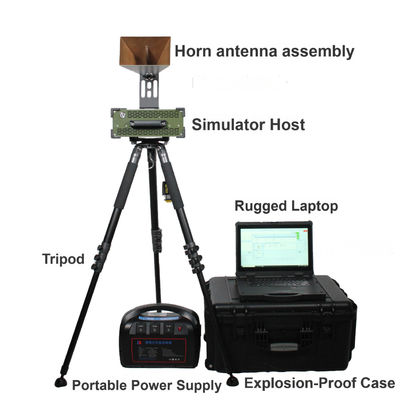

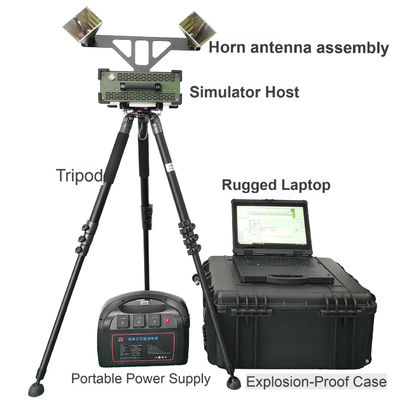

Configuration List

No.	Item	Qty.	Config.	Remarks
1	Simulator Main Unit	1 set	Standard	6–18 GHz frequency band
2	Antenna Assembly	1 set	Standard	Includes mounting brackets
3	Rugged Laptop	1 set	Standard	—
4	Mobile AC Power Supply	1 set	Standard	1000W rated power
5	Tripod	1 set	Standard	Height ≥1.5 meters
6	System Cables	1 set	Standard	RF, power, and Ethernet cables
7	Documentation Kit	1 set	Standard	Includes CD
8	Explosion-Proof Case	1 set	Standard	—
9	Carbon Fiber Lift Pole	1 set	Optional	Height ≥5 meters
10	Multi-Rotor UAV	1 set	Optional	Payload capacity ≥10 kg

Design & Applications

Rapid Deployment: Lightweight and compact for quick setup in field operations.
Multi-Scenario Use: Compatible with ground elevation, vehicle platforms, and UAV integration.
High Precision: ±1 µs PRI/PW accuracy for realistic electronic warfare (EW) training.

Why Choose This Simulator?

✅ Broadband Coverage: 6–18 GHz frequency range for advanced radar systems.
✅ Flexible Signal Generation: Supports LFM, phase coding, and multi-signal output.
✅ Military-Grade Durability: Operates reliably in extreme temperatures (-20°C to +50°C).
