Advanced Radar Signal Simulator 16 Simultaneous Signals Phase Coding Military Certificated

Products

Navigation Deception Equipment

Advanced Radar Signal Simulator 16 Simultaneous Signals Phase Coding Military Certificated

MOQ:	1
Price:	Negotiable
Delivery Period:	30days
Payment Method:	T/T,Western Union,MoneyGram,D/P
Supply Capacity:	10set/month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Type:

Simulation Equipment

Simulated Targets:

Aircraft, Missiles, Ships, Ground Vehicles

Power Output:

Up To 1000 Watts

Simulated Environment:

Air, Sea, Land

Pulse Repetition Frequency:

100-1000 Hz

Operating Temperature:

0°C - 50°C

Control Interface:

Ethernet, RS-232, GPIB

Modulation:

AM, FM, Pulse, Chirp

Signal Generation Modes:

Single, Dual, And Multichannel

Frequency Range:

1 MHz - 40 GHz

Pulse Width:

1-10 μs

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Transmitter Power:

1-10 KW

Range:

Up To 100 Km

Highlight:

Advanced Radar Signal Simulator

Advanced drone radar system

Military Certificated Radar Signal Simulator

Product Description

Advanced Tactical Simulator: 16 Simultaneous Signals, Phase Coding & Military Certification

Functional Overview

The LD-RS320400 Portable Radar Signal Simulator operates across a 32–40 GHz frequency range, capable of generating multiple radar signals (including complex modulated signals) and simulating radar antenna patterns and scanning characteristics. It creates realistic, combat-ready electromagnetic environments for radar reconnaissance/jamming equipment testing, performance validation, and tactical training. Ideal for military units, testing bases, and research institutes.

Key Features

Advanced Signal Simulation: Utilizes mainstream technologies for high-fidelity signal generation and real-world countermeasure testing.
Portable & Lightweight: Compact design (≤10 kg total weight) for easy transport and rapid deployment.
Multi-Platform Compatibility: Supports ground elevation, vehicle mounting, and UAV payload integration.

Performance Specifications

Category	Details
Frequency Range	32–40 GHz (customizable)
Instantaneous Bandwidth	1000 MHz
Frequency Accuracy	≤10⁻⁶ × center frequency
Radar Signal Types	- Continuous wave - Pulse (conventional, frequency-agile, diversity) - LFM (up to 40 MHz/μs) - Phase-coded (2/4/8 phases)
PRI Range & Accuracy	- Range: 3 µs–50,000 µs - Accuracy: ≤(0.05 + 10⁻³×PRI) µs
PW Range & Accuracy	- Range: 0.1 µs–5000 µs - Accuracy: ≤(0.05 + 10⁻³×PW) µs
Output Power	- Linear output: ≥1 W (CW) - Power control: 30 dB range, 1 dB step
Signal Capacity	Up to 16 simultaneous signals in 1000 MHz bandwidth
Environmental	- Storage: -40°C to +65°C - Operation: -20°C to +50°C
Power & Control	- AC 220V or mobile power (≥6 hours runtime) - Ethernet/wireless remote control
Portability	Total weight ≤10 kg (including antennas)

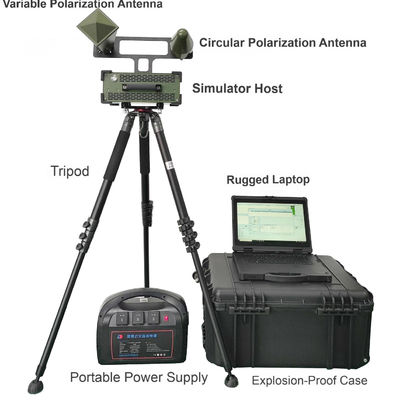

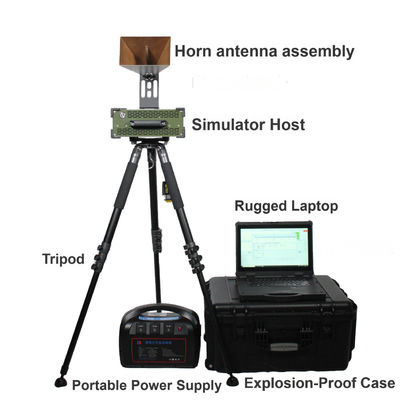

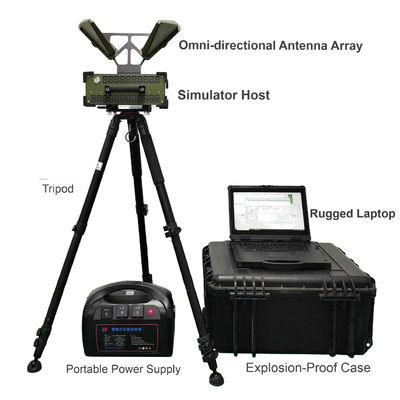

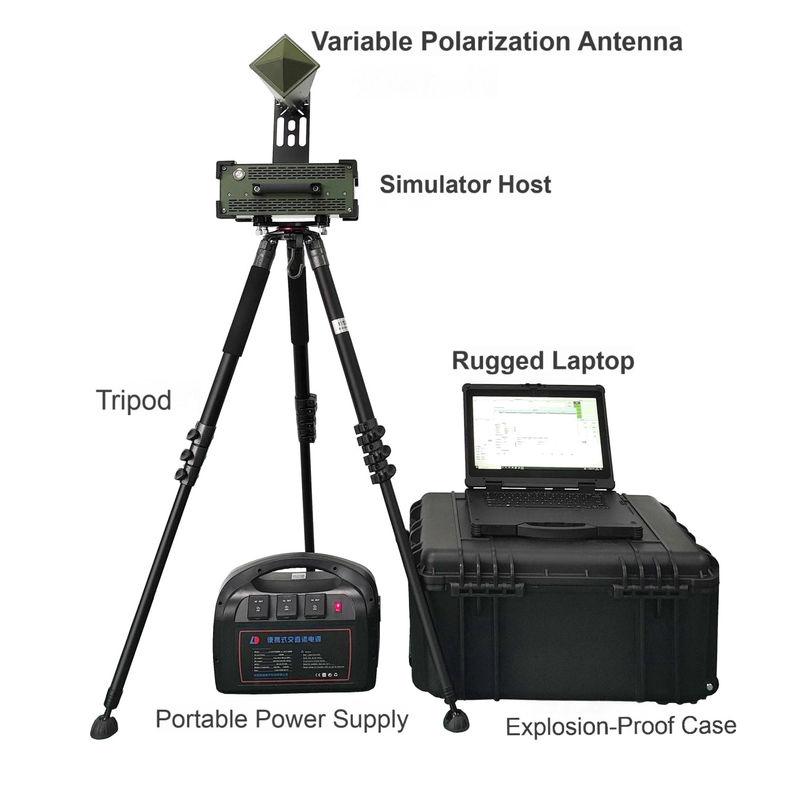

Configuration List

No.	Item	Qty.	Config.	Remarks
1	Simulator Main Unit	1 set	Standard	32–40 GHz frequency band
2	Antenna Assembly	1 set	Standard	Includes mounting brackets
3	Rugged Laptop	1 set	Standard	—
4	Mobile AC Power Supply	1 set	Standard	1000W rated power
5	Tripod	1 set	Standard	Height ≥1.5 meters
6	System Cables	1 set	Standard	RF, power, and Ethernet cables
7	Documentation Kit	1 set	Standard	Includes CD
8	Explosion-Proof Case	1 set	Standard	—
9	Carbon Fiber Lift Pole	1 set	Optional	Height ≥5 meters
10	Multi-Rotor UAV	1 set	Optional	Payload capacity ≥10 kg

Design & Applications

Rapid Deployment: Lightweight and compact for quick setup in field operations.
Multi-Scenario Use: Compatible with ground elevation, vehicle platforms, and UAV integration.
High Precision: ±1 µs PRI/PW accuracy for realistic electronic warfare (EW) training.

Why Choose This Simulator?

✅ Broadband Coverage: 32–40 GHz frequency range for advanced radar systems.
✅ Flexible Signal Generation: Supports LFM, phase coding, and multi-signal output.
✅ Military-Grade Durability: Operates reliably in extreme temperatures (-20°C to +50°C).
