Efficient Border Security Radar With AESA System Digital Array Architecture

Products

Navigation Deception Equipment

Efficient Border Security Radar With AESA System Digital Array Architecture

MOQ:	1
Price:	Negotiate
Delivery Period:	15days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

chengdu

Brand Name

Model Number

LY-X-3D-I

Minimum Detection Range:

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Efficient Border Security Radar

Efficient radar drone detection

Border Security Radar With AESA System

Product Description

LY-X-3D-I Low Altitude Radar with AESA System for 360° Coverage and Pitch and Azimuth Scanning in Ku Band

Product Overview

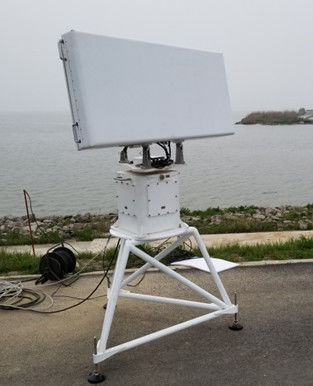

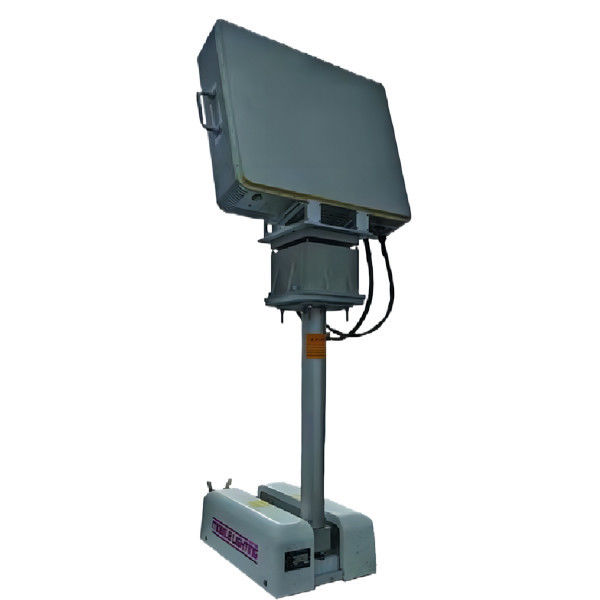

The LY-X-3D-I digital phased array radar is a fully solid-state, fully coherent, all-digital active phased array three-coordinate radar. It is primarily designed for detecting and tracking low-altitude airspace objects, such as general aviation aircraft and drones, particularly slow-moving and small targets. The radar provides real-time output of targets' range, azimuth, altitude, and velocity, forming a three-dimensional dynamic situational awareness of low-altitude targets. This supports low-altitude surveillance and interception systems by offering effective informational assistance. The radar is highly reliable for missions and can automatically capture targets, providing efficient monitoring of non-cooperative and high-threat targets in key areas.

Product Features

Digital Array Architecture: Fully integrated and software-defined processing approach.

Digital Beamforming (Receive and Transmit): Adaptive airspace coverage based on mission profiles.

Compact and Integrated Design: Low-cost, high reliability, and high integration.

Long Dwell Time: Superior clutter suppression capability.

Customizable Operational Waveforms and Bandwidths: Multiple options available.

Enhanced Anti-Jamming Measures: Expandable functionalities, including sidelobe cancellation, stealth filtering, and interference track rejection.

Technical Specifications

Category		Specifications
Operating Frequency		X-band, bandwidth over 200 MHz, with 10 operational frequency points
Detection Range	Small Target Mode	≥6 km (RCS=0.01 m², customizable; enhanced mode up to 8 km).
	General Aviation Mode	≥25 km (RCS=2 m²).
	Minimum Detection Range	≤200m
	Altitude Coverage	Up to 3500 m (for a 2 m² target).
	Azimuth	0°～360°
	Elevation	0°–40° (expandable to 55°).
Measurement Accuracy	Range	≤20 m (RMS).
	Azimuth	≤0.4°(RMS)
	Altitude	≤0.5°(RMS)
Target Processing Capacity		200 tracks/frame, 5000 points/frame.
Signal Processing		Digital beamforming, digital pulse compression, MTD, CFAR, clutter mapping, etc.
Antenna Rotation Speed		12 or 24 RPM.
Environmental Adaptability	Operating Temperature	-30°C to +50°C (outdoor equipment).
	Relative Humidity	98% (at 35°C, outdoor equipment)
	Altitude	≤5000m
Power Supply	Power Input	220V±10%,50Hz±5%
Power Supply	System Power Consumption	≤1000W
Optional Features		Dual Beidou Timing and North-Orientation System
