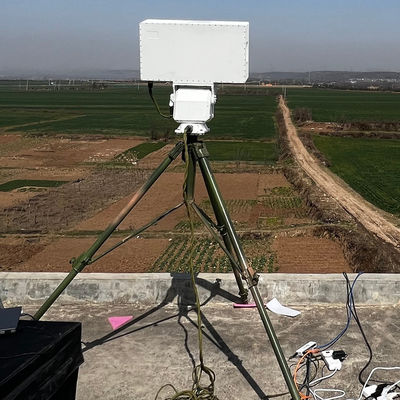

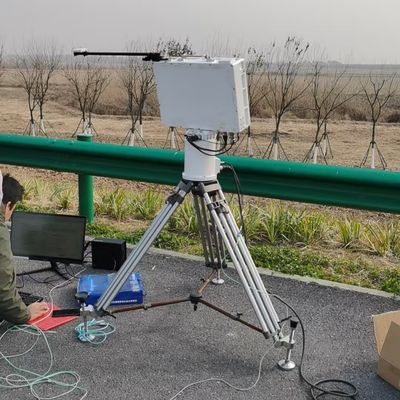

AI High Sensitivity Air Defense Radar Border Surveillance Radar
  • name
  • name
  • name

AI High Sensitivity Air Defense Radar Border Surveillance Radar

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C, T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Minimum Detection Range:
10 M
Operating Frequency Band:
X Band
Range Resolution:
1-10 M
Scanning Range Pitch:
0°-40°
Antenna Diameter:
1-5 M
Blind Range:
180m
Scan Mode:
Sector Scan
Antenna Rotation:
360 Degrees
Scanning Range Azimuth:
360°
Operating Altitude:
0-10 Km
Receiver Sensitivity:
-120 DBm
Pulse Width:
1-10 μs
Transmitter Power:
1-10 KW
Pulse Repetition Frequency:
100-1000 Hz
Range:
Up To 100 Km
Highlight:

AI Border Surveillance Radar

,

High Sensitivity Border Surveillance Radar

,

High Sensitivity Air Defense Radar

Product Description

AI-Enabled High-Sensitivity Border Surveillance Radar System with Full-Spectrum UAV Detection



I. Core Functions and Technical Principles

  1. High-Sensitivity Radar Technology

    • Frequency Band: Ku/Ka bands (12-40 GHz), balancing detection accuracy (centimeter-level resolution) and anti-precipitation interference.

    • Sensitivity: ≤-120 dBm (typical), detects micro-UAVs (e.g., DJI Mavic series) with 0.01 m² RCS at 5 km.

    • Doppler Effect: Velocity filtering (0.3-50 m/s) to distinguish UAVs from birds (>15 m/s typically).

  2. All-Weather Detection

    • Adaptive environmental compensation: Automatically increases transmit power (up to 500W) in sandstorms/snow.

    • Thermal imaging: Integrated uncooled IR detector (8-14 μm wavelength) with >92% nighttime recognition rate.

  3. AI Recognition Engine

    • Machine learning: ResNet-50 model trained on 200,000 datasets of UAV/bird/helicopter features.

    • Real-time classification: Identifies mainstream UAV brands (DJI/Autel) within 0.2 seconds.

II. Full-Coverage Deployment Solutions

1. Fixed Radar Arrays

  • Density: 3 radars per 50 km border (120° sector coverage), using TDMA to avoid interference.

  • Networking:

    • LoRaWAN backhaul (15 km range, <5W power consumption)

    • Data fusion center with Kalman filtering algorithm

2. Mobile Detection Units

  • Vehicle-mounted radar:

    • 12-m retractable mast for low-altitude coverage

    • Hydrogen fuel cell (72-hour endurance)

  • Counter-UAV vehicles: Integrated dual-band (2.4/5.8 GHz) microwave jammer

3. Layered Defense System

Layer Detection Range Countermeasure Response Time
Early Warning 5-10 km Audio-visual alerts + coordinates 3 sec
Interception 1-3 km GPS spoofing + spectrum suppression 8 sec
Neutralization <500 m Net-capture UAV/laser ablation 15 sec

III. Key Technical Parameter Comparison

Parameter Conventional Radar High-Sensitivity Version
Min RCS* 0.1 m² 0.01 m²
False Alarm Rate 2/hr 0.5/hr
Power Consumption 300W 180W (GaN components)
Multi-Target Handling 50 targets 200 targets (FPGA-accelerated)
Temperature Range -20℃~+55℃ -40℃~+70℃
*RCS: Radar Cross-Section

IV. Application Scenarios

  1. Illegal Border Crossing Detection

    • Forest penetration: Detects human movement (Doppler signature 0.5-2 m/s)

    • Integration with vibration-sensing fiber optic systems (±3m accuracy)

  2. UAV Swarm Defense

    • Identifies swarm attacks (>10 UAVs), activates anti-saturation mode

    • Locates operators via RF triangulation (<100m error)

  3. Emergency Response

    • Wildfire monitoring: Predicts fire spread direction

    • Search-and-rescue: Provides real-time terrain avoidance for helicopters

V. Cost & Deployment Recommendations

  1. Initial Investment

    • ~$150,000/km (equipment + installation)

    • Reduces manual patrols by 60% vs. traditional CCTV

  2. Maintenance

    • Predictive maintenance: Radar Health Index (RHI) gives 14-day fault预警

    • Modular design: TR module replacement in 20 minutes

Tags:

air defense radar,

phased array radar systems,

radar drone detection
