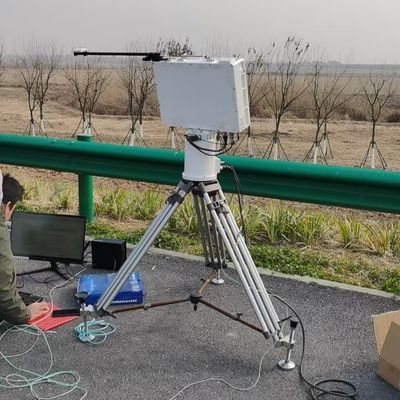

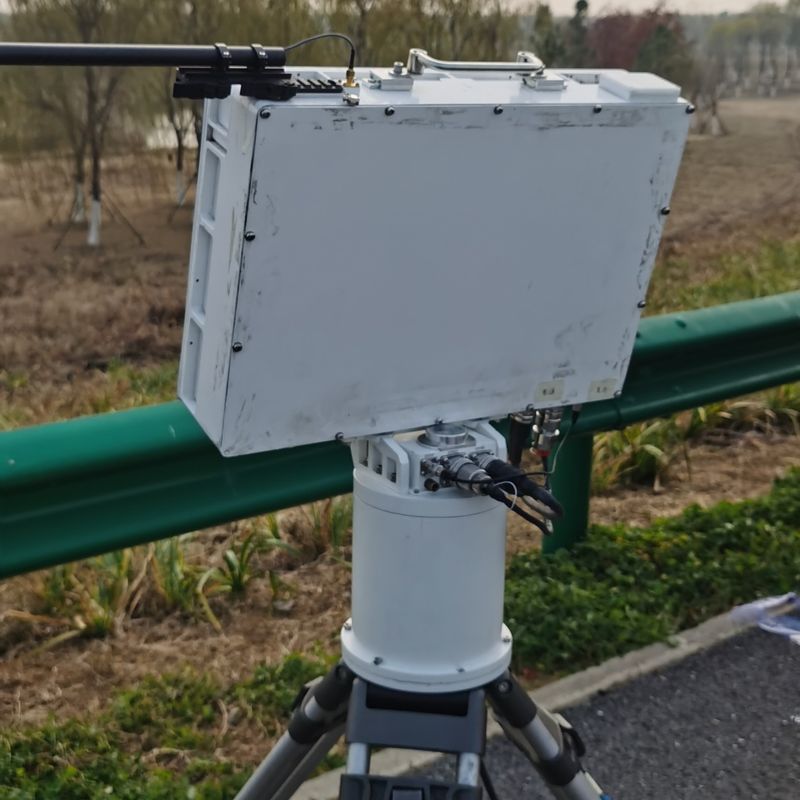

Active Low Altitude Radar 360 Degrees Electronic 10x Sensitivity
  • name
  • name
  • name

Active Low Altitude Radar 360 Degrees Electronic 10x Sensitivity

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C, T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Minimum Detection Range:
10 M
Operating Frequency Band:
X Band
Range Resolution:
1-10 M
Scanning Range Pitch:
0°-40°
Antenna Diameter:
1-5 M
Blind Range:
180m
Scan Mode:
Sector Scan
Antenna Rotation:
360 Degrees
Scanning Range Azimuth:
360°
Operating Altitude:
0-10 Km
Receiver Sensitivity:
-120 DBm
Pulse Width:
1-10 μs
Transmitter Power:
1-10 KW
Pulse Repetition Frequency:
100-1000 Hz
Range:
Up To 100 Km
Highlight:

Active Low Altitude Radar

,

Active drone detection radar system

,

360 Degrees Low Altitude Radar

Product Description

Active Phased Array Low-Altitude Surveillance Radar with 7km 0.01m² RCS Detection + Omni-Directional C-UAS Jammer (IP67 Military-Grade)



System Overview

The HYH-X07A + HYH-UJ830Q integrated defense suite delivers unmatched protection against modern aerial threats. Combining X-band phased array radar with software-defined electronic warfare capabilities, this system detects drones, missiles, and intruders up to 7km, while disabling hostile UAVs within 2km radius in 3 seconds. Certified for military operations (MIL-STD-810G) and critical infrastructure protection.

![System Deployment Scenario: Radar scanning airspace while jammer neutralizes drone swarm]

Why Choose This System?

✅ 10x Sensitivity - Detects stealth drones (0.01m² RCS) missed by conventional radars
✅ Swarm Killer - Tracks & jams 200+ targets simultaneously
✅ All-Weather Ready - Operates in -30°C to 70°C extremes (IP67 waterproof)
✅ 60% Faster Deployment - Lightweight modular design (25kg radar head)
✅ Future-Proof - OTA updates for emerging drone threats

Core Technologies

HYH-X07A Radar Innovations

![Radar Icon] Precision Detection ![Scan Icon] 360° Coverage ![AI Icon] Smart Classification
- 7km range for DJI Mavic-class drones - 90°/s ultra-fast mechanical rotation - Machine learning identifies UAV types
- 15m range resolution - 0.5° azimuth accuracy - 95%+ bird vs drone differentiation
- Penetrates rain/fog (30dB clutter rejection) - 60° vertical scan angle - Real-time threat prioritization

HYH-UJ830Q Jammer Advantages

![Jamming Icon] Full-Spectrum Dominance ![Shield Icon] Instant Defense ![Gear Icon] Military Durability
- Covers 20MHz-6GHz (8 programmable bands) - 3s automatic engage-to-disable - Survives 50G shock & salt spray
- Neutralizes GPS/GLONASS/BeiDou signals - Adaptive power scaling (200-960W) - Self-locking worm gear mechanism
- 3x directional + 1x omni antennas - Pre-loaded counter-swarm protocols - Linux-based battle management OS

Technical Specifications

Radar Performance

  • Detection:
    » 0.01m² RCS @7km (Pd=0.8)
    » 200 targets tracked simultaneously
    » 10-1000m/s velocity range

  • Mobility:
    » 25kg radar head + 15kg turntable
    » <30min field deployment

  • Power: 320W peak / 48V DC input

Jammer Capabilities

  • Coverage: 2km radius (DJI Matrice 300 verified)

  • Frequency: 8 preset bands + custom programming

  • Interfaces: RS422/ETH/GPS synchronization

  • Compliance: FCC Part 15, CE, RoHS

Application Scenarios

![Border Icon] Border Security

  • Detect illegal crossings & drone-based smuggling

  • 24/7 operation in deserts/mountains

![Base Icon] Military Protection

  • Counter surveillance drones & loitering munitions

  • Integrated with C-RAM systems

![Factory Icon] Critical Infrastructure

  • Protect power plants/airports from aerial attacks

  • Silent mode for urban environments

![Coast Icon] Coastal Defense

  • Monitor sea-surface targets & fast boats

  • Salt corrosion-resistant construction

Comparison With Alternatives

Feature Standard Systems LT-X07A/UJ830Q
Detection Range ≤5km (0.1m² RCS) 7km (0.01m² RCS)
Response Time 8-10 seconds 3 seconds
Frequency Agility Fixed bands AI-driven adaptation
Total Weight 80-120kg 40kg (modular)
SWaP* High power/space needs 60% reduction
*SWaP: Size, Weight, Power

Certifications & Compliance

  • MIL-STD-810G (Environmental)

  • IP67 Ingress Protection

  • FCC/CE/ROHS Certified

  • ITU Radio Regulation 5.4 compliant
