Integrated RF Anti Drone Radar Ground Surveillance Radar For Infrastructure Protection
  • name
  • name
  • name

Integrated RF Anti Drone Radar Ground Surveillance Radar For Infrastructure Protection

MOQ: 1
Price: Negotiable
Delivery Period: 30
Payment Method: L/C, T/T
Supply Capacity: 10sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
HYH
Minimum Detection Range:
10 M
Operating Frequency Band:
X Band
Range Resolution:
1-10 M
Scanning Range Pitch:
0°-40°
Antenna Diameter:
1-5 M
Blind Range:
180m
Scan Mode:
Sector Scan
Antenna Rotation:
360 Degrees
Scanning Range Azimuth:
360°
Operating Altitude:
0-10 Km
Receiver Sensitivity:
-120 DBm
Pulse Width:
1-10 μs
Transmitter Power:
1-10 KW
Pulse Repetition Frequency:
100-1000 Hz
Range:
Up To 100 Km
Highlight:

Integrated Anti Drone Radar

,

Integrated Ground Surveillance Radar

,

RF Anti Drone Radar

Product Description

Integrated Radar-RF System for Critical Infrastructure Protection (Networked Geolocation ≤5m Accuracy)



System Highlights

⚡ Next-Gen Surveillance: Ku-band active phased array radar detects micro-drones (0.8-40m/s) at 5km
⚡ Smart RF Fingerprinting: Passive detection pinpoints operator locations via 0.1W+ UAV signals
⚡ Modular Defense: Combine up to 8 units for 5m precision geo-location (networked mode)

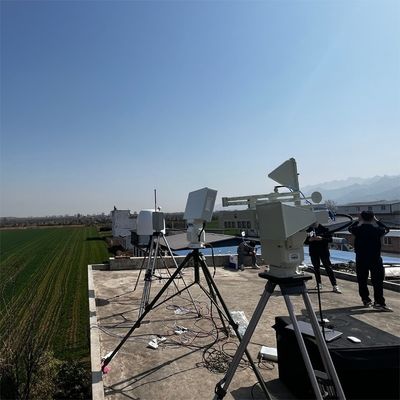

![System Deployment: Radar scanning airspace while RF sensors track drone operators]

Why This System Wins

✅ 10x Faster Scan - 60°/s mechanical rotation + phase scanning
✅ All-Weather Sentinel - IP67 rating withstands sandstorms/heavy rain
✅ Future-Ready - FPGA-based architecture supports OTA threat updates
✅ 60% Lighter - 27kg radar head enables rapid redeployment
✅ Legal Compliance - Passive detection meets ITU/NTIA regulations

Core Technology Breakdown

HYH-Ku07 Radar Innovations

![Precision Icon] Stealth Detection ![Coverage Icon] 3D Protection ![AI Icon] Smart Analytics
- 0.01m² RCS at 5km (DJI Mavic 3 class) - 360° azimuth + 45° elevation scan - ML-based UAV vs bird filtering
- 10m range resolution - 0.5° angular accuracy - Automatic threat prioritization
- 160W low-power operation - ≤200m blind zone - Real-time KML data export

HYH-RFS50 Hunter Advantages

![RF Icon] Signal Intelligence ![Tracking Icon] Operator Hunting ![Network Icon] Scalable Defense
- 200MHz-6GHz full-spectrum scan - 5-10km operator geolocation - 8-unit mesh network integration
- 0.4/1.4/5.8GHz focus bands - ≤3° direction finding accuracy - REST API for C2 system integration
- 98% detection success rate - 60+ concurrent targets tracking - Black/white list filtering

Technical Specifications

HYH-Ku07 Radar

Detection Mobility Power
- 5km (0.01m² RCS) - 27kg radar head - 160W peak
- 100+ targets tracked - <2hr deployment - 24-48V DC input
- 0.8-40m/s speed range - 590×475×126mm compact - 90% efficiency

HYH-RFS50 Detector

Coverage Accuracy Interfaces
- 10km max detection - ≤3° bearing error - Ethernet/RS485
- 60 UAVs simultaneously - 5m geo-location (networked) - SDK for CMS integration
- 0.1W signal sensitivity - 3s response time - External alarm triggers

Application Scenarios

![Border Icon] Critical Infrastructure Protection

  • Secure power plants/airports from drone intrusions

  • Silent passive detection mode for urban areas

![Military Icon] Battlefield Surveillance

  • Detect loitering munitions & recon drones

  • Integrated with hard-kill systems

![Coast Icon] Coastal Monitoring

  • Track fast boats & sea-skimming targets

  • Salt-resistant marine-grade construction

![City Icon] Event Security

  • VIP protection during public gatherings

  • Real-time airspace threat mapping

Performance Comparison

Capability Standard Systems LT-Ku07/RFS50
Minimum RCS 0.1m² 0.01m²
Detection Latency 5-8 seconds ≤3 seconds
Weight 50-80kg 37kg total
Frequency Agility Fixed channels AI-optimized scan
Operator Tracking Not supported 5-10km range

Certifications

  • MIL-STD-461F (EMI/EMC)

  • IP67 Environmental Protection

  • FCC Part 15 Subpart B

  • RoHS 3 Compliant
