Air Defense Low Altitude Radar Omnidirectional Jamming System Integrated Solution

Products

Navigation Deception Equipment

Air Defense Low Altitude Radar Omnidirectional Jamming System Integrated Solution

MOQ:	1
Price:	Negotiable
Delivery Period:	30
Payment Method:	L/C, T/T
Supply Capacity:	10sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

HYH

Minimum Detection Range:

10 M

Operating Frequency Band:

X Band

Range Resolution:

1-10 M

Scanning Range Pitch:

0°-40°

Antenna Diameter:

1-5 M

Blind Range:

180m

Scan Mode:

Sector Scan

Antenna Rotation:

360 Degrees

Scanning Range Azimuth:

360°

Operating Altitude:

0-10 Km

Receiver Sensitivity:

-120 DBm

Pulse Width:

1-10 μs

Transmitter Power:

1-10 KW

Pulse Repetition Frequency:

100-1000 Hz

Range:

Up To 100 Km

Highlight:

Air Defense Low Altitude Radar

Air Defense uav detection radar

Omnidirectional Low Altitude Radar

Product Description

Product Overview

Our advanced 3D All-Solid-State Air Defense Radar and Omnidirectional Multi-Band Jamming System form a comprehensive airspace protection solution. Designed for high-speed target detection, tracking, and countermeasures, this system ensures robust security for critical areas.

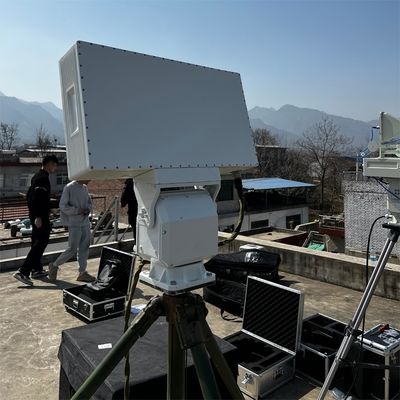

Air Defense Radar

Key Features

Multi-Target Tracking: Real-time detection of speed, trajectory, and spatial position for over 200 targets simultaneously.
Anti-Clutter Algorithms: Integrated advanced algorithms to suppress strong clutter interference.
Full Airspace Coverage: Active phased array antenna enables 360° azimuth and 0°–90° pitch coverage.
Compact & Reliable: Modular all-solid-state design with military-grade durability (IP67 protection).
Fail-Safe Mechanism: Worm gear transmission with self-locking during power failures.

Technical Specifications

Parameter	Value
Radar Type	2D Active Phased Array
Frequency Band	X-Band
Scan Range	Azimuth: ±15.5° (Electrical), 0°–360° (Mechanical) Pitch: ±30° (Electrical), 0°–90° (Mechanical)
Detection Range	≥8 km (RCS=0.01m²) ≥15.5 km (RCS=0.1m²) ≥25 km (RCS=1m²)
Resolution	Range: 15m Azimuth: ≥5° Pitch: ≥9°
Accuracy	Range: ±20m Azimuth/Pitch: ±0.8°
Max Target Speed	0.8–100 m/s
Transmit Power	256W
Dimensions & Weight	≤686mm × 411mm × 145mm ≤55 kg

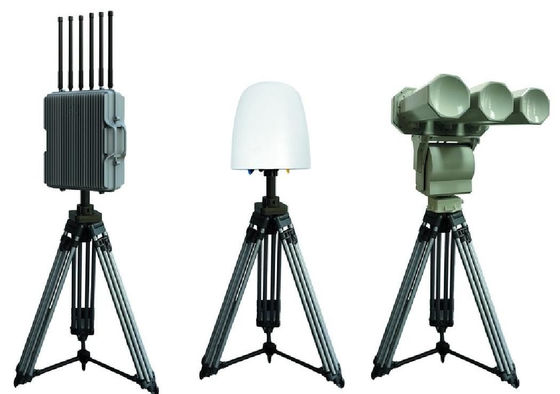

Omnidirectional Jamming System

Key Features

Wideband Coverage: Jams 20–6000 MHz, targeting UAV image transmission, control links, and GPS signals.
Multi-Antenna Design: 3 flat-panel antennas + 1 PCB antenna for omnidirectional 360° coverage.
Rapid Response: Activates countermeasures within 3 seconds.
Adaptive Range: Effective up to 1.5–2 km (varies by UAV model).

Technical Specifications

Parameter	Value
Counter Mode	Radio Frequency Suppression
Targets	UAVs, Communication Links, Navigation Signals
Frequency Bands	400MHz, 800MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz (Optional)
Coverage	Full 360° Airspace
Power Consumption	960W (Active Mode)
Dimensions & Weight	550mm × 500mm × 300mm ≤55 kg
Protection Rating	IP67

System Advantages

Integrated Control: Military-grade embedded system ensures stable turntable and antenna control.
High Reliability: All-solid-state components with modular design for minimal downtime.
Flexible Deployment: Compact size and lightweight for rapid setup in diverse environments.
Scalable Security: Combine radar detection and jamming for layered airspace defense.

Applications: Critical infrastructure protection, military bases, border security, and event safety.

Custom configurations available. Contact us for tailored solutions!
